RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

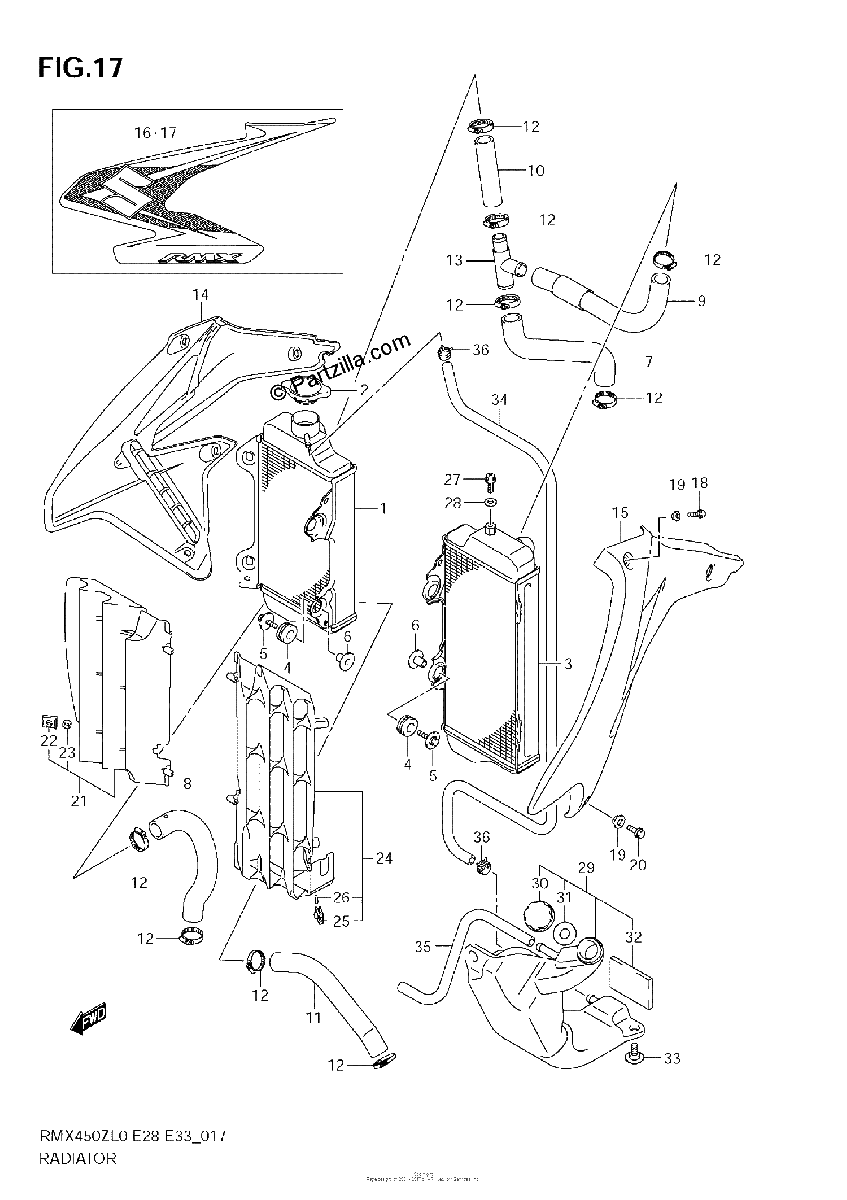

Diagrama de RADIATOR

Repuestos

#1
17710-28H20
RADIATOR, RH
$537.38¢268 688
1
#2
17730-08J00
CAP
$50.67¢25 338
1
#3
17720-28H20
RADIATOR, LH
$617.79¢308 894
1
#4
17787-19A00
CUSHION, RADIATOR SUPPORT
$4.25¢2 125
1
#5
09116-06186
BOLT (6X25)
$3.36¢1 681
1
#6
09180-06243
SPACER (6.5X10.5X14.1)
$6.41¢3 206
1
#7
17851-28H00
HOSE, INLET
$25.09¢12 544
1
#8
17852-28H00
HOSE, OUTLET
$30.40¢15 200
1
#9
17853-28H10
HOSE, JOINT UPPER NO.1
$31.65¢15 825
1
#10
17854-28H00
HOSE, JOINT UPPER NO.2
No Disponible
1
#11
17855-28H00
HOSE, JOINT LOWER
$24.56¢12 281
1
#12
09402-28513
CLAMP
$8.21¢4 106
1
#13
17857-35G10
JOINT, RADIATOR HOSE
$10.44¢5 219
1
#14
17761-28H02-GY8
COVER, RADIATOR RH
$140.19¢70 094
1
#15
17762-28H02-GY8
COVER, RADIATOR LH
$140.19¢70 094
1
#16
68115-02J00-HBP
TAPE, RADIATOR COVER, RH
No Disponible
1
#17
68116-02J00-HBP
TAPE, RADIATOR COVER, LH
No Disponible
1
#18
09103-06233
BOLT (6X12) | OPT
$2.74¢1 369
1
#19
47191-02J00
WASHER, RADIATOR COVER
$24.47¢12 237
1
#20
09103-06234
BOLT (6X16)
$2.74¢1 369
1
#21
17801-28H10
LOUVER, RADIATOR RH
$70.50¢35 250
1
#22
09148-06017
.NUT
$3.81¢1 906
1
#23
09180-06129
.SPACER (6.2X10X2.2)
$1.77¢888
1
#24
17802-28H10
LOUVER, RADIATOR LH
$70.50¢35 250
1
#25
09148-06017
.NUT
$3.81¢1 906
1
#26
09180-06129
.SPACER (6.2X10X2.2)
$1.77¢888
1
#27
17568-50F00
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
1
#28
09168-06026
GASKET (6.4X11.5X0.8)
$3.65¢1 825
1
#29
17910-02J00
TANK ASSY, RESERVOIR
No Disponible
1
#30
17931-02J00
.CAP
No Disponible
1
#31
17932-02J00
.GASKET
No Disponible
1
#32
17912-02J00
.CUSHION
No Disponible
1
#33
17913-02J00
BOLT
No Disponible
1
#34
17981-02J00
HOSE, TANK INLET
$33.54¢16 769
1
#35
09352-50901-600
HOSE (5X9X600) | L:600-500
$9.60¢4 800
1
#36
09401-08411
CLIP
$2.30¢1 150
1
