ELECTRICAL RM Z450 L1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

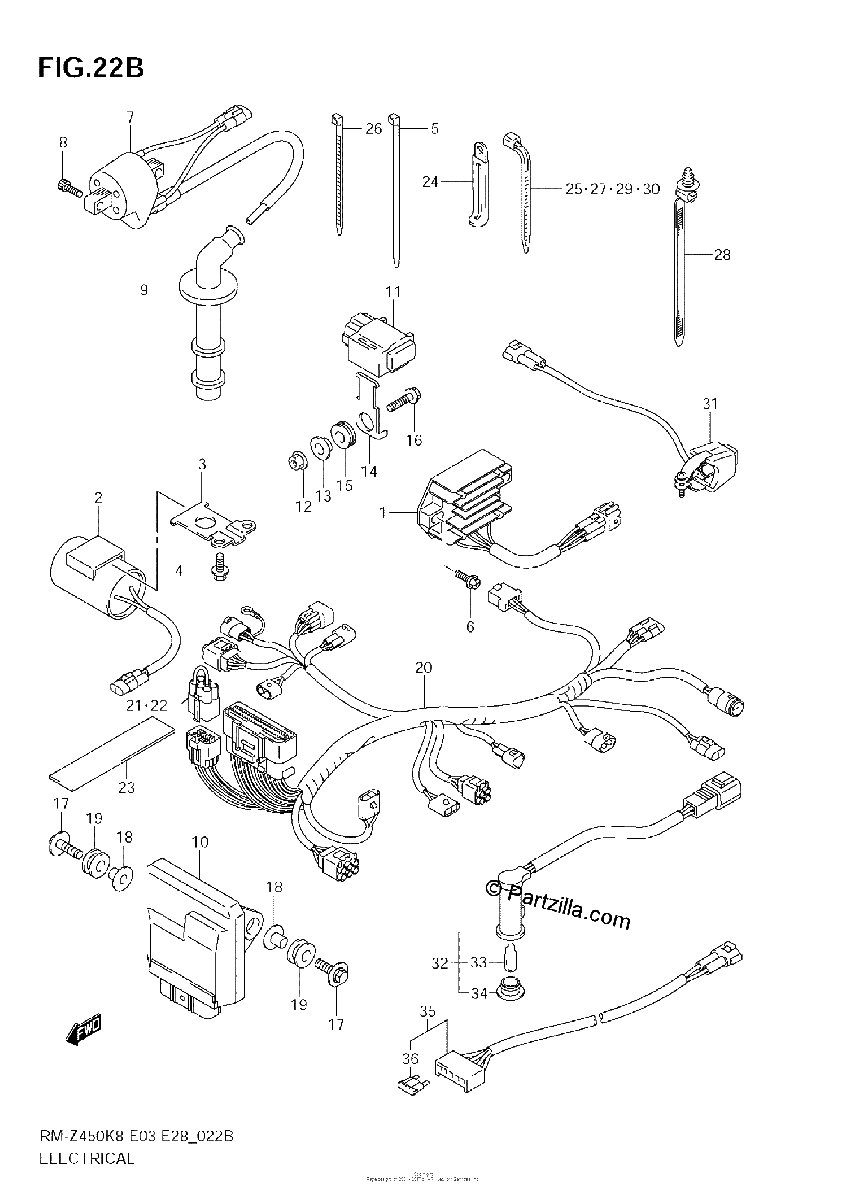

Diagrama de ELECTRICAL RM Z450 L1

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$243.50¢121 750
1
#2
33640-28H00
CONDENSER ASSY
$191.36¢95 681
1
#3
33641-28H00
BRACKET, CONDENSER
No Disponible
1
#4
09103-06188
BOLT (6X10)
$3.81¢1 906
1
#5
09407-10404
CLAMP (L:100)
$3.40¢1 700
1
#6
02162-0620C
BOLT
$2.25¢1 125
1
#7
33410-35G10
COIL ASSY, IGNITION
$170.88¢85 438
1
#8
07130-0620A
BOLT
$3.25¢1 625
1
#9
33510-28H00
CAP ASSY, SPARK PLUG
$80.72¢40 363
1
#10
32920-28H60
CONTROL UNIT, FI
$915.66¢457 831
1
#11
33960-06G10
SENSOR ASSY, FUEL CUT
$107.21¢53 606
1
#12
08316-1006A
NUT
$2.85¢1 425
1
#13
09180-06331
.SPACER (6.2X8.4X10.9)
$6.25¢3 125
1
#14
33961-28H10
BRACKET
No Disponible
1
#15
09320-08501
CUSHION
$3.85¢1 925
1
#16
01547-0620A
BOLT
$2.63¢1 313
1
#17
09116-06182
BOLT (6X20)
$2.95¢1 475
1
#18
09180-06331
.SPACER (6.2X8.4X10.9)
$6.25¢3 125
1
#19
09320-08076
CUSHION
$6.78¢3 388
1
#20
36610-28H30
HARNESS, WIRING
$471.54¢235 769
1
#21
36852-28H00
WIRE, SHORT
$17.79¢8 894
1
#22
36852-49H00
WIRE, SHORT
$13.67¢6 837
1
#23
36930-82010
PROTECTOR, HARNESS
$3.75¢1 875
1
#24
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#25
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#26
09407-10403
CLAMP (L:95)
No Disponible
1
#27
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#28
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#29
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#30
09407-25401
CLAMP (L:235)
$5.49¢2 744
1
#31
37820-36E00
SWITCH ASSY, ENGINE STOP
$28.91¢14 456
1
#32
36380-28H00
LAMP ASSY, FI INDICATOR | OPT
$104.69¢52 344
1
#33
09471-12028
.BULB (12V,3.4W) | OPT
$2.58¢1 288
1
#34
36321-28H00
.LENS (RED) | OPT
$14.28¢7 138
1
#35
36890-28H00
WIRE, BATTERY | OPT
$62.13¢31 063
1
#36
09481-10101
.FUSE (10A) | OPT
$2.71¢1 356
1
