FUEL TANK RM Z450 K8 K9 L0

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

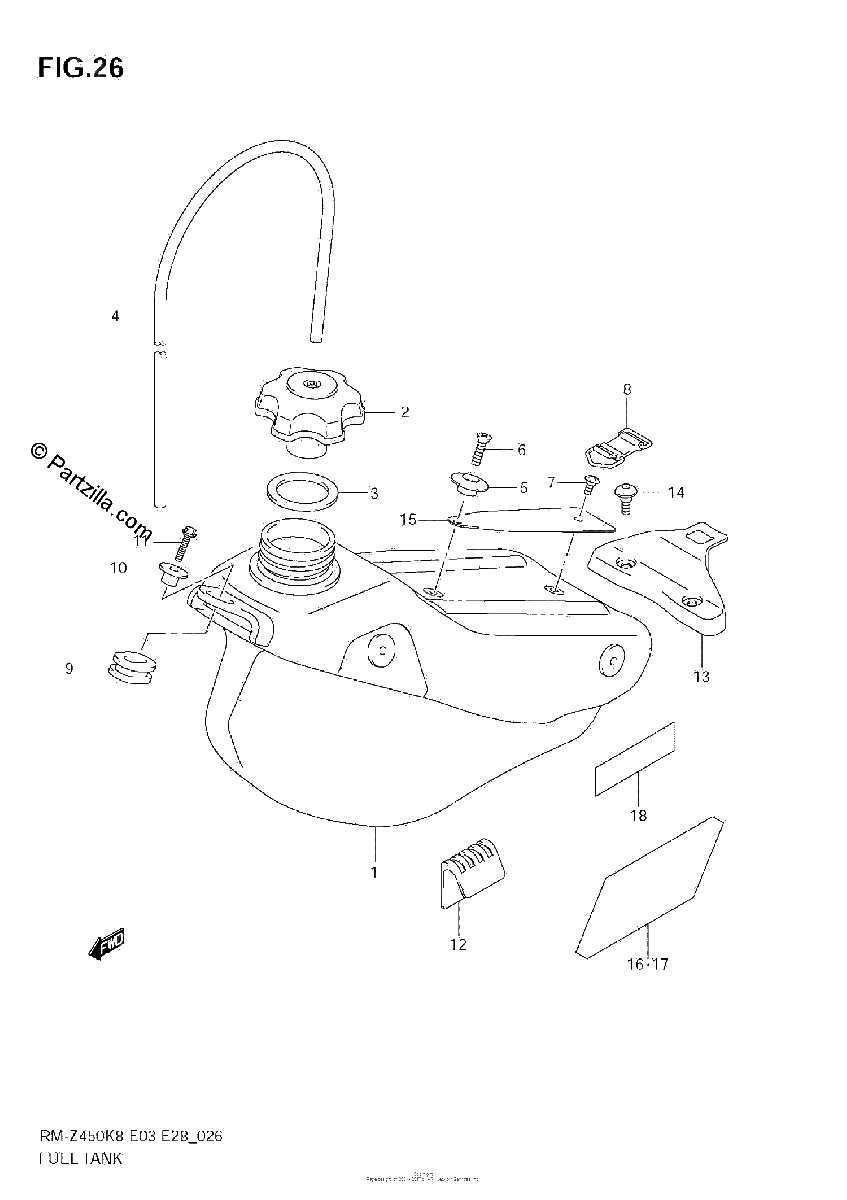

Diagrama de FUEL TANK RM Z450 K8 K9 L0

Repuestos

#1
44110-28H01
TANK, FUEL
No Disponible
1
#2
44210-37F00
CAP, FUEL TANK FILLER
$46.65¢23 325
1
#3
44248-27C00
GASKET
$5.16¢2 581
1
#4
44420-44AR0
HOSE,5X8.2X600 | L:600-260
No Disponible
1
#5
44132-37F10
HOOK, SEAT FRONT
$15.59¢7 794
1
#6
02122-0620B
SCREW
$2.54¢1 269
1
#7
09139-06134
SCREW (6X13.5)
$3.46¢1 731
1
#8
44560-27C00
BAND, FUEL TANK REAR
$9.18¢4 588
1
#9
44541-28H00
CUSHION, TANK FRONT
$6.81¢3 406
1
#10
44134-35G02
SPACER
$29.25¢14 625
1
#11
09103-06213
BOLT (6X30)
$3.19¢1 594
1
#12
44543-35G00
CUSHION, TANK SIDE
$12.61¢6 306
1
#13
44542-28H00
CUSHION, REAR | K8/K9
No Disponible
1
#13
44542-28H10
CUSHION, TANK REAR
$16.50¢8 250
1
#14
09139-05074
BOLT (5X13)
$3.36¢1 681
1
#15
44280-28H00
PROTECTOR, FUEL TANK
$61.28¢30 638
1
#16
17795-28H00
PROTECTOR, TANK COVER RH
$27.60¢13 800
1
#17
17796-28H00
PROTECTOR, TANK COVER LH
$27.60¢13 800
1
#18
17797-28H00
PROTECTOR, TANK COVER
$17.81¢8 906
1
