REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

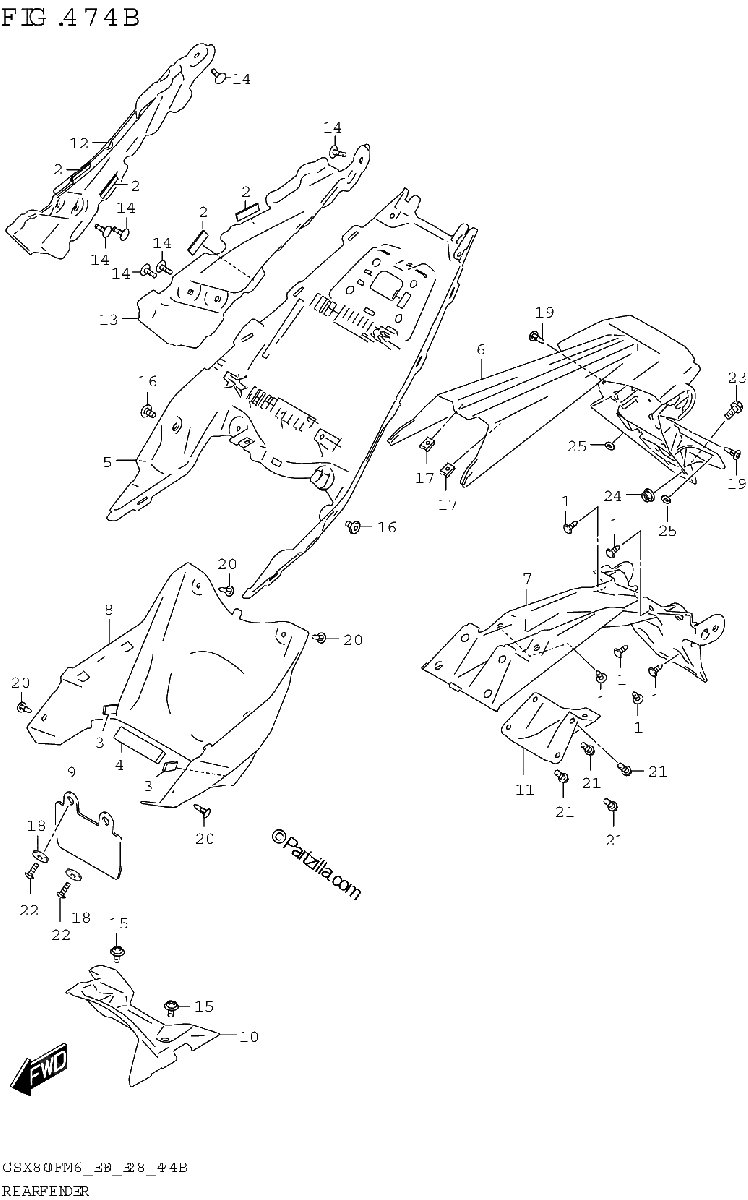

Diagrama de REAR FENDER

Repuestos

#1
36125-81P00
SCREW, FRONT POSITION LAMP
$1.78¢891
1
#2
44894-24A00
.CUSHION
$2.13¢1 064
1
#3
47376-20E00
CUSHION, FUEL LID (10X20X3)
$2.22¢1 110
1
#4
51827-13G00
CUSHION, HEADLAMP COVER
$5.23¢2 616
1
#5
63111-25L00
FENDER, REAR FRONT
$61.98¢30 992
1
#6
63112-25L10
FENDER, REAR REAR
$32.23¢16 117
1
#7
63113-25L10
BRACKET, REAR FENDER
$170.28¢85 140
1
#8
63114-25L00
LID, REAR FENDER FRONT
$37.52¢18 762
1
#9
63115-25L00
MUDFLAP, REAR FENDER FRONT
$43.99¢21 994
1
#10
63116-25L00
FENDER, REAR LOWER
$11.21¢5 606
1
#11
63117-25L00
REINF, REAR FENDER BRACKET
$30.84¢15 421
1
#12
63121-25L00
COVER, REAR FENDER RH
$27.43¢13 714
1
#13
63122-25L00
COVER, REAR FENDER LH
$27.43¢13 714
1
#14
94479-35F00
CLIP
$6.16¢3 082
1
#15
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#16
09139-06225
BOLT,CHAIN CASE
$3.36¢1 679
1
#17
09148-05038
NUT
$2.36¢1 179
1
#18
09160-05046
WASHER (5.5X20X1.4)
$2.28¢1 138
1
#19
09409-06314
CLIP
$3.31¢1 656
1
#20
09409-06314
CLIP
$3.31¢1 656
1
#21
01547-0616B
BOLT
$2.91¢1 455
1
#22
03541-0516B
SCREW
$2.12¢1 058
1
#23
01550-0612A
BOLT
$2.36¢1 179
1
#24
08316-1006A
NUT
$2.62¢1 311
1
#25
08322-0106A
WASHER
$2.20¢1 098
1
