REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

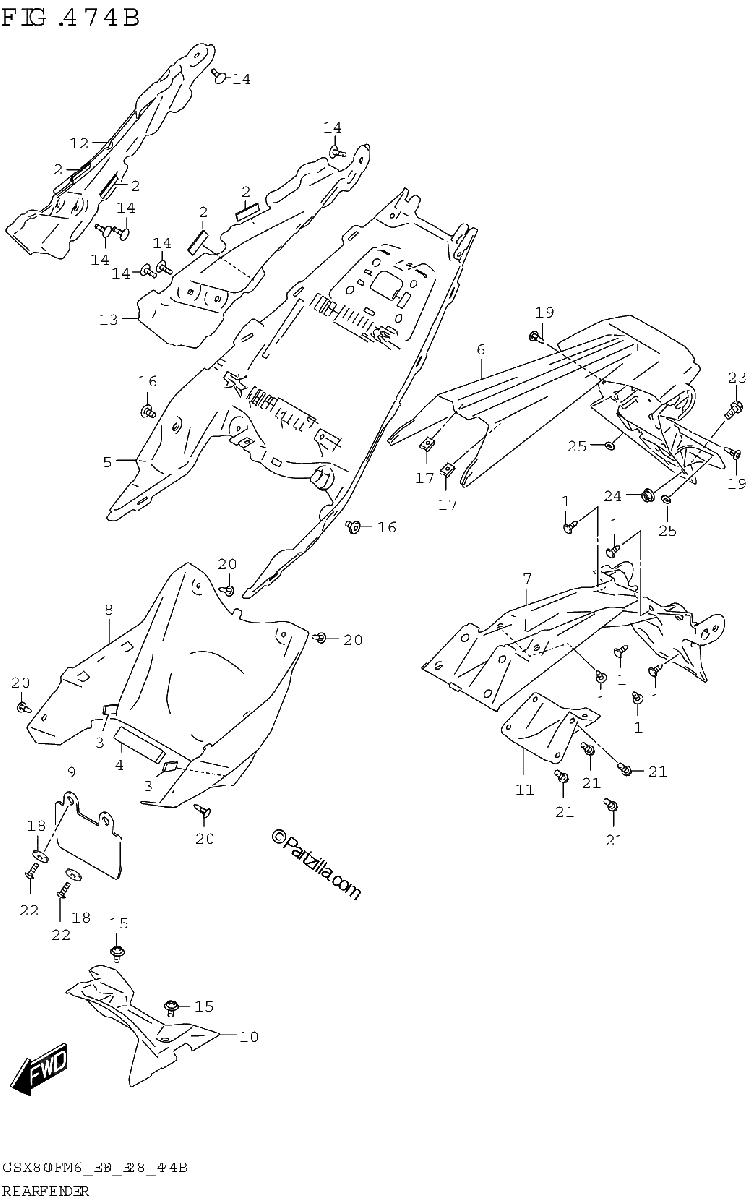

Diagrama de REAR FENDER

Repuestos

#1
36125-81P00
SCREW, FRONT POSITION LAMP
$1.94¢969
1
#2
44894-24A00
.CUSHION
$2.31¢1 156
1
#3
47376-20E00
CUSHION, FUEL LID (10X20X3)
$2.41¢1 206
1
#4
51827-13G00
CUSHION, HEADLAMP COVER
$5.69¢2 844
1
#5
63111-25L00
FENDER, REAR FRONT
$67.38¢33 688
1
#6
63112-25L10
FENDER, REAR REAR
$35.04¢17 519
1
#7
63113-25L10
BRACKET, REAR FENDER
$185.09¢92 544
1
#8
63114-25L00
LID, REAR FENDER FRONT
$40.79¢20 394
1
#9
63115-25L00
MUDFLAP, REAR FENDER FRONT
$47.81¢23 906
1
#10
63116-25L00
FENDER, REAR LOWER
$12.19¢6 094
1
#11
63117-25L00
REINF, REAR FENDER BRACKET
$33.52¢16 763
1
#12
63121-25L00
COVER, REAR FENDER RH
$29.81¢14 906
1
#13
63122-25L00
COVER, REAR FENDER LH
$29.81¢14 906
1
#14
94479-35F00
CLIP
$6.70¢3 350
1
#15
09111-06107
BOLT (6X12)
$3.36¢1 681
1
#16
09139-06225
BOLT,CHAIN CASE
$3.65¢1 825
1
#17
09148-05038
NUT
$2.56¢1 281
1
#18
09160-05046
WASHER (5.5X20X1.4)
$2.48¢1 238
1
#19
09409-06314
CLIP
$3.60¢1 800
1
#20
09409-06314
CLIP
$3.60¢1 800
1
#21
01547-0616B
BOLT
$3.16¢1 581
1
#22
03541-0516B
SCREW
$2.30¢1 150
1
#23
01550-0612A
BOLT
$2.56¢1 281
1
#24
08316-1006A
NUT
$2.85¢1 425
1
#25
08322-0106A
WASHER
$2.39¢1 194
1
