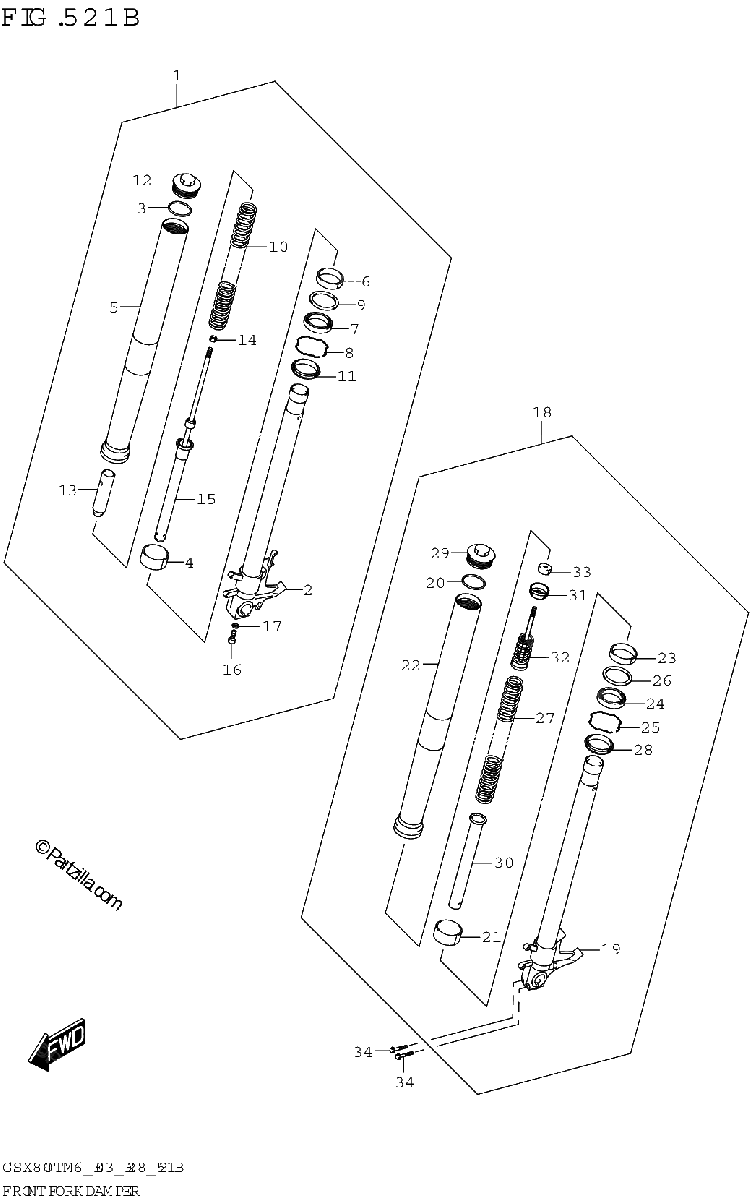

FRONT FORK DAMPER GSX800TTRQB
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY RH
$1246.91¢623 456
#2
TUBE, INNER RH
$642.44¢321 219
#3
.O RING
$9.28¢4 638
#4
PISTON
$37.05¢18 525
#5
TUBE, OUTER
$607.22¢303 612
#6
SLIDE METAL
$23.46¢11 731
#7
.OIL SEAL
$24.67¢12 337
#8
.RING, OIL SEAL STOPPER
$6.19¢3 094
#9
.WASHER
$6.95¢3 475
#10
SPRING
$44.31¢22 156
#11
.SEAL, DUST
$27.51¢13 756
#12
.CAP
$215.21¢107 606
#13
.SPACER, SPRING
$36.97¢18 487
#14
.NUT, ROD
$4.10¢2 050
#15
CYLINDER
$357.10¢178 550
#16
.BOLT
$7.29¢3 644
#17
.GASKET
$2.68¢1 338
#18
DAMPER ASSY LH
$1225.29¢612 644
#19
TUBE, INNER LH
$677.13¢338 563
#20
.O RING
$9.28¢4 638
#21
PISTON
$37.05¢18 525
#22
TUBE, OUTER
$607.22¢303 612
#23
SLIDE METAL
$23.46¢11 731
#24
.OIL SEAL
$24.67¢12 337
#25
.RING, OIL SEAL STOPPER
$6.19¢3 094
#26
.WASHER
$6.95¢3 475
#27
SPRING
$44.31¢22 156
#28
.SEAL, DUST
$27.51¢13 756
#29
.CAP
$215.21¢107 606
#30
SPACER
$28.71¢14 356
#31
STOPPER
$17.46¢8 731
#32
ROD, PISTON
$92.63¢46 313
#33
RUBBER, CUSHION
$15.71¢7 856
#34
BOLT, AXLE STOPPER
$4.40¢2 200
