FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

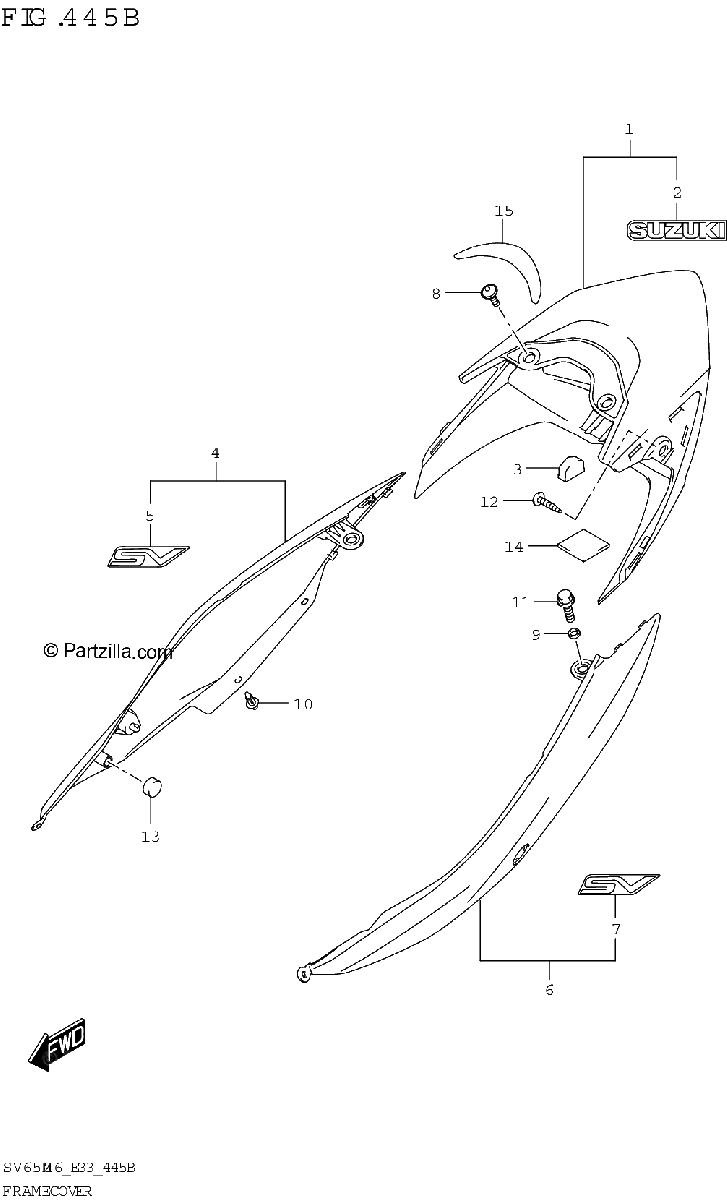

Diagrama de FRAME COVER

Repuestos

#1
47310-18K01-4UX
COVER,FRAME REAR CTR (BLACK)
$166.60¢83 300
1
#2
68171-28H11-CL9
EMBLEM,SUZUKI (BLACK,SILVER)
$7.27¢3 634
1
#3
47315-18K00
CUSHION, FRAME COVER CTR
$15.81¢7 906
1
#8
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#9
09180-08052
SPACER (8.5X12X2.5)
No Disponible
1
#10
09409-06314
CLIP
$3.31¢1 656
1
#11
01550-0812A
BOLT | FRONT
$2.77¢1 386
1
#12
03541-0510A
SCREW
$1.71¢857
1
#13
09329-14003
CUSHION (14X20X9)
$3.28¢1 639
1
#14
33652-24B00
PROTECTOR,BATTERY (30X30X5)
$3.36¢1 679
1
#15
47312-18K00
TAPE, FRAME COVER REAR CENTER
$14.32¢7 159
1
#4-1
47410-18K21-4TX
COVER,FRAME REAR,R (BLACK) *{BODY COLOR:YKV,C2L}*
$101.03¢50 514
1
#4-2
47410-18K21-4UX
COVER,FRAME REAR,R (BLACK) *{BODY COLOR:CGJ}*
$101.03¢50 514
1
#5-1
68111-18K00-C4D
EMBLEM,SV (SILVER,BLACK) *{BODY COLOR:YKV,C2L}*
$13.13¢6 567
1
#5-2
68111-18K00-CGJ
EMBLEM,SV (BLUE,BLACK) *{BODY COLOR:CGJ}*
$13.13¢6 567
1
#6-1
47510-18K21-4TX
COVER,FRAME REAR,L (BLACK) *{BODY COLOR:YKV,C2L}*
$101.03¢50 514
1
#6-2
47510-18K21-4UX
COVER,FRAME REAR,L (BLACK) *{BODY COLOR:CGJ}*
$101.03¢50 514
1
#7-1
68111-18K00-C4D
EMBLEM,SV (SILVER,BLACK) *{BODY COLOR:YKV,C2L}*
$13.13¢6 567
1
#7-2
68111-18K00-CGJ
EMBLEM,SV (BLUE,BLACK) *{BODY COLOR:CGJ}*
$13.13¢6 567
1
