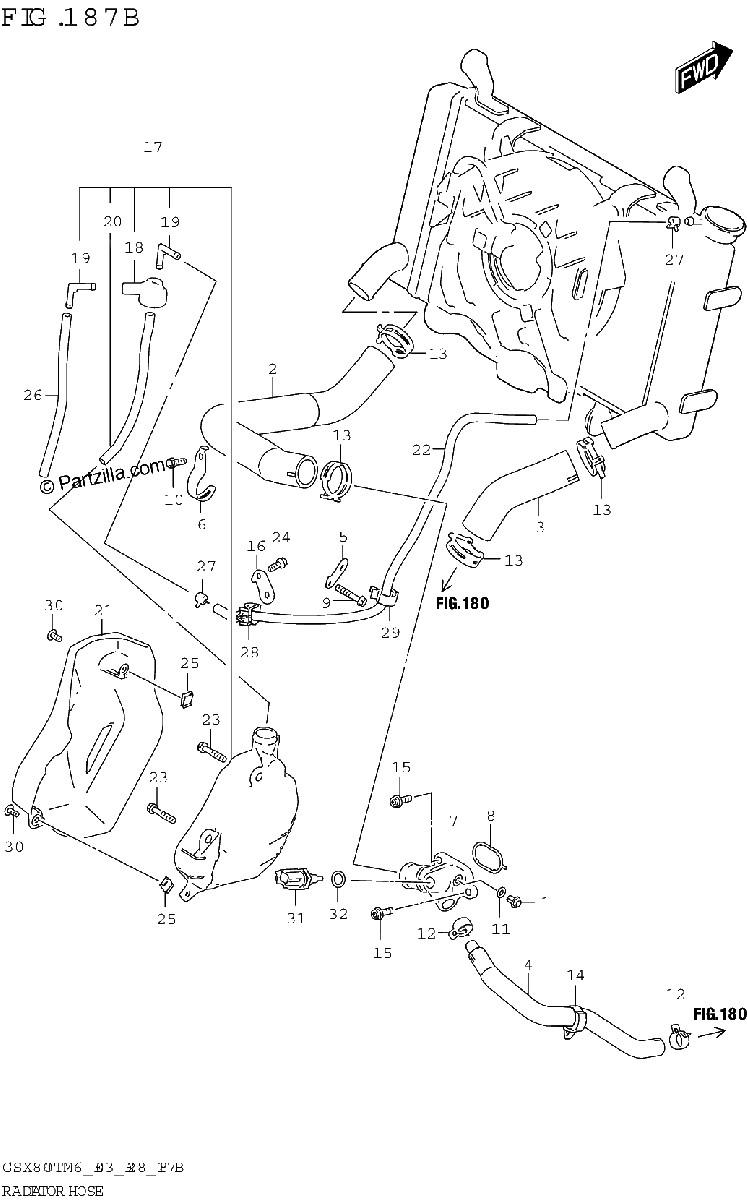

RADIATOR HOSE GSX800TTRQB
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOLT, THERMOSTAT COVER AIR
$7.56¢3 781
#2
HOSE, RDTR INLET
$43.25¢21 625
#3
HOSE, RDTR OUTLET
$17.06¢8 531
#4
HOSE, WATER BYPASS
$15.41¢7 706
#5
BRACKET, HOSE CLAMP
$8.69¢4 344
#6
CLAMP, RDTR INLET HOSE
$12.10¢6 050
#7
CONNECTOR, WATER OUTLET
No Disponible
#8
O RING, WATER CONNECTOR
$4.77¢2 387
#9
BOLT (6X12) *{(E28,E33)}*
$1.94¢969
#10
BOLT
$2.85¢1 425
#11
GASKET (6.4X11.5X0.8)
$3.65¢1 825
#12
CLIP
$3.17¢1 588
#13
CLAMP,WATER HOSE
$3.65¢1 825
#14
CLAMP
No Disponible
#15
BOLT
$3.56¢1 781
#16
BRACKET, HOSE CLAMP
$8.69¢4 344
#17
TANK ASSY, RESERVOIR
$63.79¢31 894
#18
CAP, WATER RESERVOIR TANK
$23.81¢11 906
#19
PIPE, RSVR TANK CAP
$14.21¢7 106
#20
HOSE, RSVR TANK CAP
$19.29¢9 644
#21
COVER, RESERVOIR TANK
$23.90¢11 950
#22
HOSE, RSVR TANK INLET
$29.22¢14 612
#23
BOLT (6X12) *{(E28,E33)}*
$1.94¢969
#24
BOLT
$2.85¢1 425
#25
NUT
$2.56¢1 281
#26
HOSE (5X9X600) | L:600-500
$9.60¢4 800
#27
CLIP
$2.30¢1 150
#28
CLAMP
$1.94¢969
#29
CLAMP
$3.04¢1 519
#30
SCREW
No Disponible
#31
SENSOR, WATER TEMPERATURE
$107.54¢53 769
#32
GASKET (12X17X1)
$2.56¢1 281
