FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

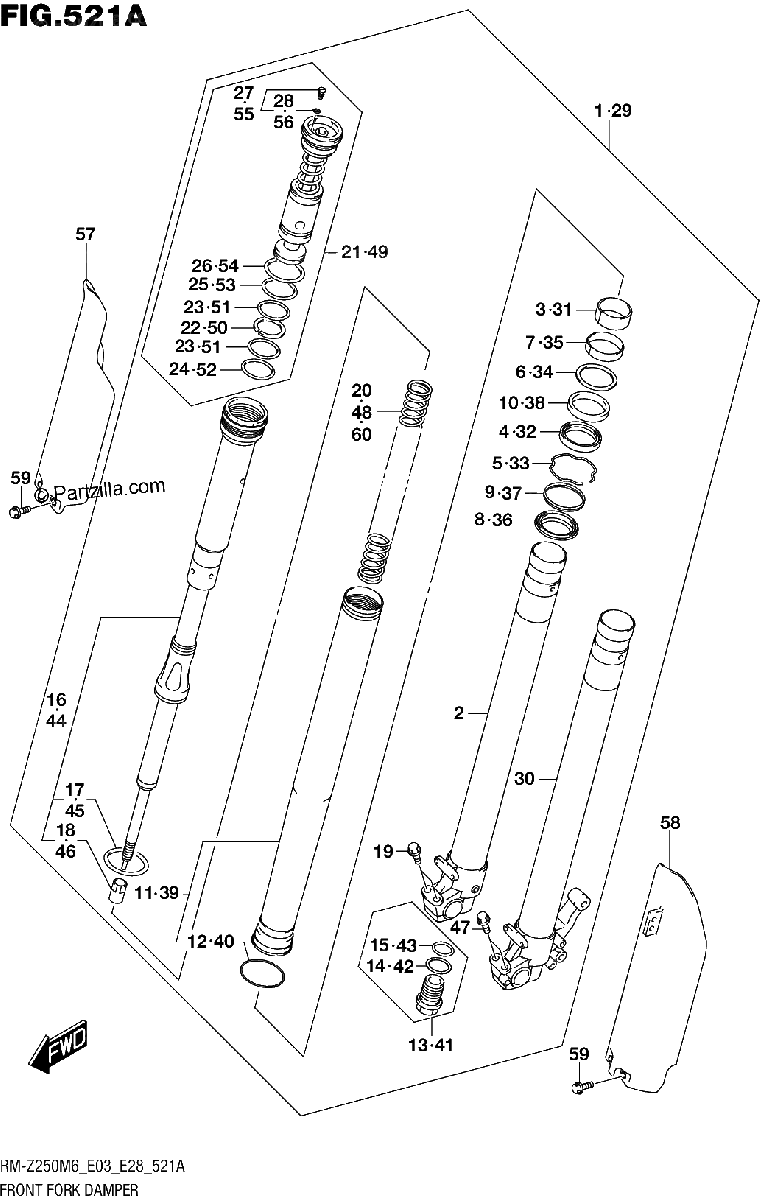

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-46K00
DAMPER ASSY, FRONT FORK RH
$2310.96¢1 155 481
1
#2
51110-46K00
TUBE, INNER RH
$458.52¢229 263
1
#3
51127-49HE0
.PISTON
$44.23¢22 113
1
#4
51153-49HE0
.SEAL, OIL
$32.77¢16 388
1
#5
51156-49HE0
.RING, OIL SEAL STOPPER
$7.65¢3 825
1
#6
51158-46K00
.WASHER
$33.56¢16 781
1
#7
51167-49HE0
.METAL, SLIDE
$28.91¢14 456
1
#8
51173-49HE0
.SEAL, DUST
$22.35¢11 175
1
#9
51152-49HE0
.SCRAPER
$21.68¢10 838
1
#10
51155-49HE0
.COLLAR
$13.00¢6 500
1
#11
51130-46K00
.TUBE, OUTER
$676.60¢338 300
1
#12
51211-49H40
RING,SNAP
$8.73¢4 363
1
#13
51170-46K00
.ADJUSTER
$53.65¢26 825
1
#14
51148-01B20
..GASKET
$4.94¢2 469
1
#15
51181-43010
..O RING
$6.08¢3 038
1
#16
51190-46K00
.CYLINDER ASSY
$756.60¢378 300
1
#17
51117-48G01
O RING
$3.75¢1 875
1
#18
51814-49H40
..NUT
$36.78¢18 388
1
#19
51166-24F60
BOLT
$6.65¢3 325
1
#20
51171-46K00
.SPRING
$42.81¢21 406
1
#21
51350-46K00
VALVE ASSY,BASE
$422.84¢211 419
1
#22
51124-46K00
..RING,BACKUP
$4.84¢2 419
1
#23
51174-46K00
O RING
$2.84¢1 419
1
#24
51175-46K00
..O RING
$2.84¢1 419
1
#25
51186-46K00
..O RING
$3.19¢1 594
1
#26
51187-46K00
O RING
$2.90¢1 450
1
#27
51357-46K00
SCREW
$5.13¢2 563
1
#28
51358-46K00
...O RING
$2.48¢1 238
1
#29
51104-46K00
DAMPER ASSY, FRONT FORK LH
$2310.96¢1 155 481
1
#30
51120-46K00
TUBE, INNER LH
$458.52¢229 263
1
#31
51127-49HE0
.PISTON
$44.23¢22 113
1
#32
51153-49HE0
.SEAL, OIL
$32.77¢16 388
1
#33
51156-49HE0
.RING, OIL SEAL STOPPER
$7.65¢3 825
1
#34
51158-46K00
.WASHER
$33.56¢16 781
1
#35
51167-49HE0
.METAL, SLIDE
$28.91¢14 456
1
#36
51173-49HE0
.SEAL, DUST
$22.35¢11 175
1
#37
51152-49HE0
.SCRAPER
$21.68¢10 838
1
#38
51155-49HE0
.COLLAR
$13.00¢6 500
1
#39
51130-46K00
.TUBE, OUTER
$676.60¢338 300
1
#40
51211-49H40
RING,SNAP
$8.73¢4 363
1
#41
51170-46K00
.ADJUSTER
$53.65¢26 825
1
#42
51148-01B20
..GASKET
$4.94¢2 469
1
#43
51181-43010
..O RING
$6.08¢3 038
1
#44
51190-46K00
.CYLINDER ASSY
$756.60¢378 300
1
#45
51117-48G01
O RING
$3.75¢1 875
1
#46
51814-49H40
..NUT
$36.78¢18 388
1
#47
51166-24F60
BOLT
$6.65¢3 325
1
#48
51171-46K00
.SPRING
$42.81¢21 406
1
#49
51350-46K00
VALVE ASSY,BASE
$422.84¢211 419
1
#50
51124-46K00
..RING,BACKUP
$4.84¢2 419
1
#51
51174-46K00
O RING
$2.84¢1 419
1
#52
51175-46K00
..O RING
$2.84¢1 419
1
#53
51186-46K00
..O RING
$3.19¢1 594
1
#54
51187-46K00
O RING
$2.90¢1 450
1
#55
51357-46K00
SCREW
$5.13¢2 563
1
#56
51358-46K00
...O RING
$2.48¢1 238
1
#57
51501-28H60
PROTECTOR, FRONT FORK RH
$78.40¢39 200
1
#58
51510-28H70
PROTECTOR, FRONT FORK LH
$140.04¢70 019
1
#59
09111-06098
BOLT (6X10)
$3.98¢1 988
1
#60-1
51171-46K10
SPRING,FRONT *{OPT SOFT K=4.9}*
$42.81¢21 406
1
#60-2
51171-46K20
SPRING,FRONT *{OPT HARD K=5.1}*
$42.81¢21 406
1
