422F FUEL TANK FRONT COVER SEE NOTE 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

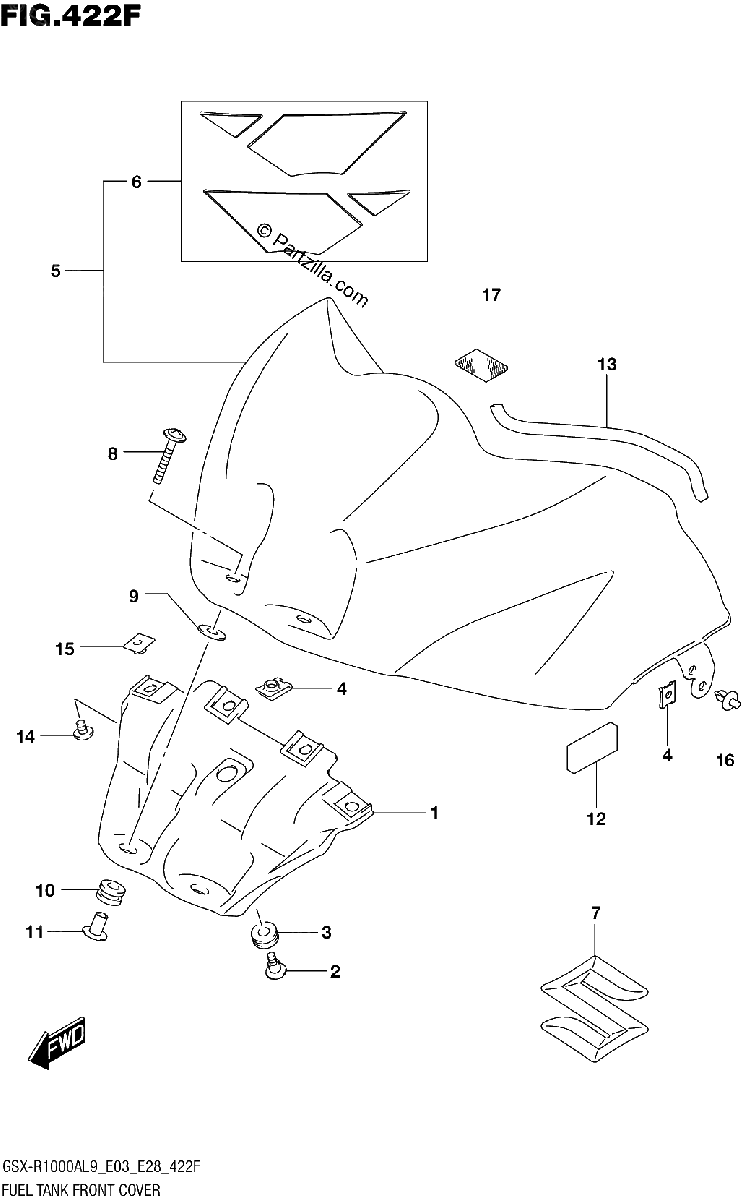

Diagrama de 422F FUEL TANK FRONT COVER SEE NOTE 1

Repuestos

#(GSX-
1000RA-GSX-R100
0RZA)(E03,E28)
No Disponible
1
#1
44521-17K00
BRACKET, FRONT
$116.53¢58 263
1
#2
09139-05078
SCREW (5X16.4)
$4.16¢2 081
1
#3
09320-08021
CUSHION | RH
$2.21¢1 106
1
#4
09148-05052
NUT
$3.96¢1 981
1
#7
68111-47HA0
EMBLEM, in.Sin.
$48.22¢24 112
1
#8
09139-06210
SCREW
$5.74¢2 869
1
#9
09160-06012
WASHER (6.5X22X1.6)
$2.10¢1 050
1
#10
09320-10050
CUSHION
$4.00¢2 000
1
#11
44512-17K00
SPACER, FUEL TANK FRONT
$8.09¢4 044
1
#12
33652-20C00
CUSHION (50X50X5)
$3.65¢1 825
1
#13
44277-17K00
CUSHION, FUEL TANK COVER
$5.36¢2 681
1
#14
09139-06181
SCREW (6X10)
$4.58¢2 288
1
#15
44523-47H00
NUT(M6)
$15.90¢7 950
1
#16
09409-06314
CLIP
$3.60¢1 800
1
#17
44572-44G00
FASTENER
$12.14¢6 069
1
#5-1
44290-17KC0-YSF
COVER,FUEL TANK (BLUE) *{BODY COLOR:YSF}*
$283.94¢141 969
1
#5-2
44290-17KC0-YVB
COVER,FUEL TANK (BLACK) *{BODY COLOR:JSP}*
$283.94¢141 969
1
#5-3
44290-17KC0-YWW
COVER,FUEL TANK (WHITE)
No Disponible
1
#6-1
68120-17K20-A3F
.TAPE SET,FUEL TANK COVER (WH TE,BLUE,YELLOW) *{BODY COLOR:YSF}*
$62.44¢31 219
1
#6-2
68120-17K20-BPA
.TAPE SET,FUEL TANK COVER (BL CK,GRAY,RED) *{BODY COLOR:JSP}*
No Disponible
1
#6-3
68120-17K20-BWV
.TAPE SET,FUEL TANK COVER (WH TE,BLUE,SILVER)
No Disponible
1
