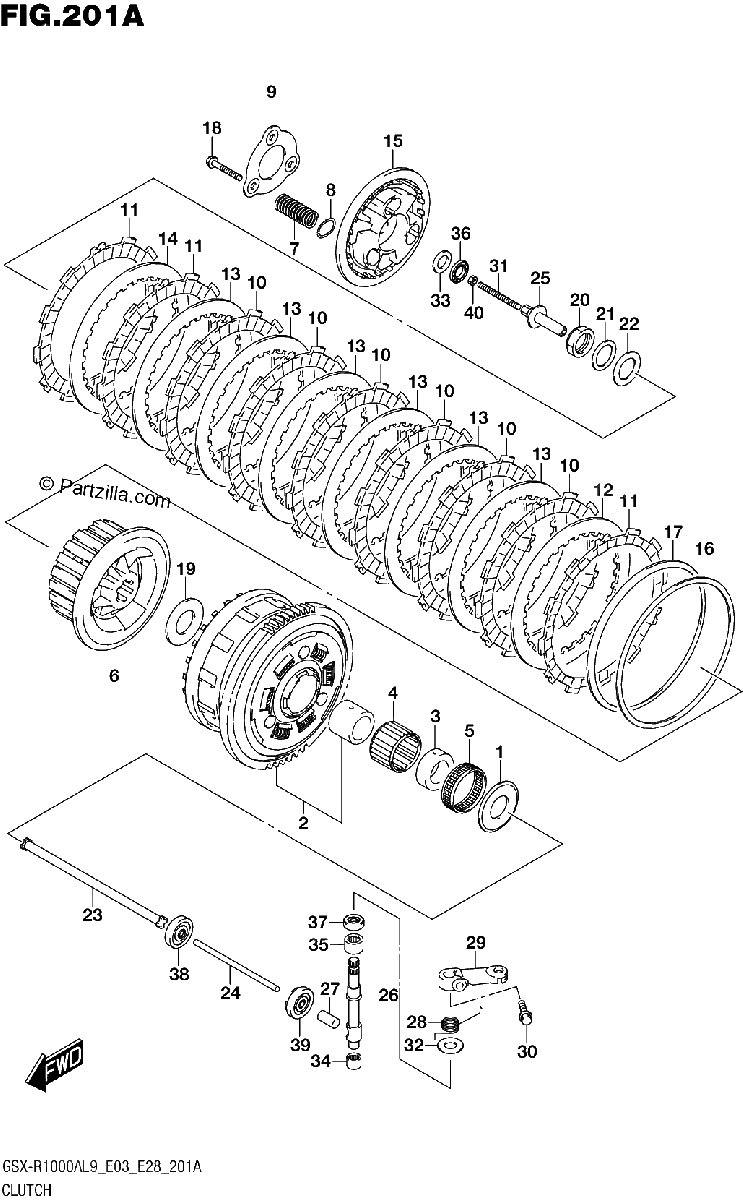

201A CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WASHER, PRI DRIVEN GEAR THR
$27.09¢13 544
#2
GEAR ASSY, PRIMARY DRIVEN
$527.69¢263 844
#3
SPACER, OIL PUMP DRIVE
$55.98¢27 988
#4
BEARING (35X40X26.8)
$36.69¢18 344
#5
BEARING (35X40X12)
$30.71¢15 356
#6
HUB, CLUTCH SLEEVE
$218.41¢109 206
#7
SPRING, CLUTCH
$7.54¢3 769
#8
SEAT, CLUTCH SPRING
$16.41¢8 206
#9
PLATE, STOPPER
$21.35¢10 675
#10
PLATE, CLUTCH DRIVE NO.1 | T:3.3
$34.41¢17 206
#11
PLATE, CLUTCH DRIVE NO.2 | T:3.3
$44.79¢22 394
#12
PLATE, CLUTCH DRIVEN NO.2 | T:2.3
$21.75¢10 875
#13
PLATE, CLUTCH DRIVEN NO.1 | T:2.3
$23.59¢11 794
#14
PLATE, CLUTCH DRIVEN NO.4 (T:2.6)
$14.38¢7 188
#15
DISC, CLUTCH PRESSURE
$127.40¢63 700
#16
SEAT, WAVE WASHER
$23.44¢11 719
#17
WASHER, CLUTCH PLATE WAVE
$33.69¢16 844
#18
BOLT, CLUTCH SPRING
$4.79¢2 394
#19
WASHER (25X50X2.5)
$13.85¢6 925
#20
NUT
$15.53¢7 763
#21
WASHER
$6.04¢3 019
#22
SHIM (25X38X1)
$3.77¢1 888
#23
ROD, CLUTCH
$25.86¢12 931
#24
ROD, CLUTCH PUSH LH
$18.94¢9 469
#25
PIECE, CLUTCH PUSH
$77.10¢38 550
#26
CAMSHAFT, CLUTCH RELEASE
$76.81¢38 406
#27
CAP, CLUTCH PUSH ROD
$13.04¢6 519
#28
SPRING, CLUTCH RELEASE RETURN
$3.88¢1 938
#29
ARM, CLUTCH RELEASE
$72.85¢36 425
#30
BOLT,GEAR SHIFT LINK ARM
$2.50¢1 250
#31
SCREW (6X73)
$8.09¢4 044
#32
WASHER (10.5X24X1)
$2.42¢1 213
#33
WASHER (15.5X28X1)
$4.58¢2 288
#34
BEARING (10X14X10)
$15.90¢7 950
#35
BEARING (12X18X12)
$8.59¢4 294
#36
BEARING (15X28X2)
$9.75¢4 875
#37
OIL SEAL (10X20X6)
$9.38¢4 688
#38
OIL SEAL
$15.48¢7 738
#39
OIL SEAL (10X17X5)
$3.96¢1 981
#40
NUT
$2.39¢1 194
