206A TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

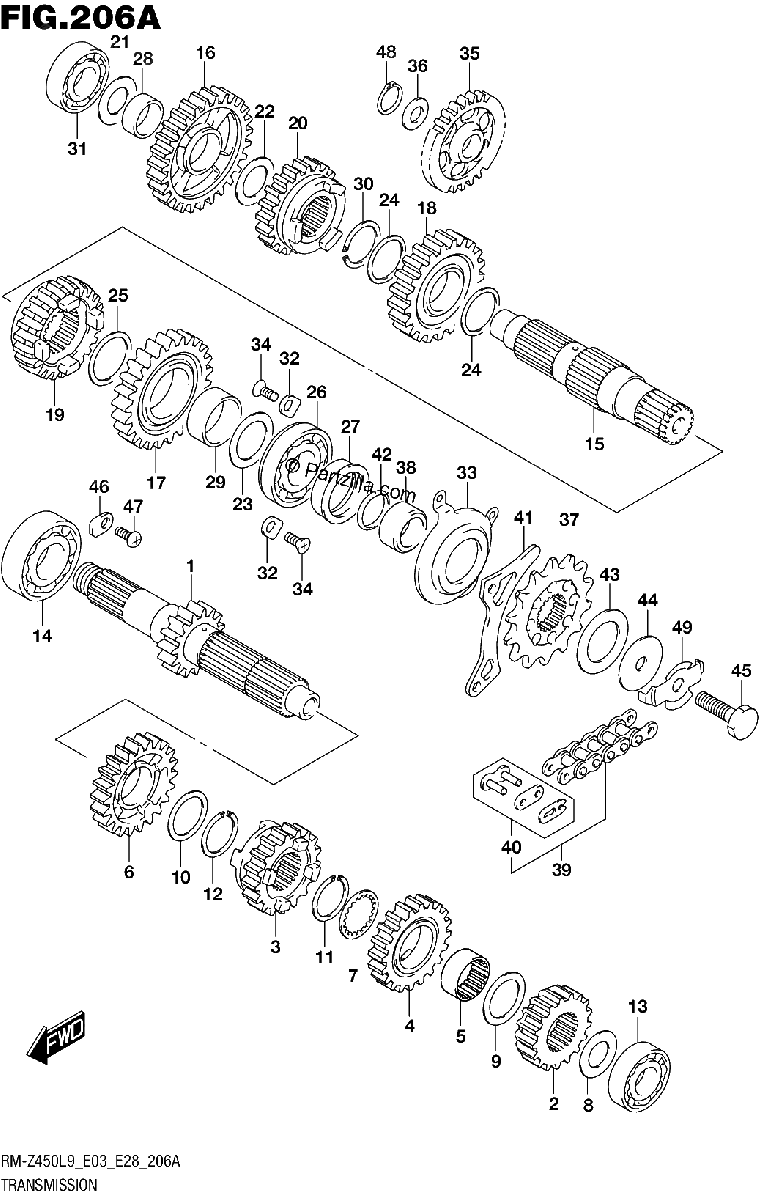

Diagrama de 206A TRANSMISSION

Repuestos

#1
24120-28H21
SHAFT, COUNTER (NT:15) | NT:15
$303.00¢151 501
1
#2
24221-28H20
GEAR, 2ND DRIVE (NT:17) | NT:17
$137.63¢68 816
1
#3
24231-28H30
GEAR, 3RD DRIVE (NT:17)
$124.58¢62 290
1
#4
24241-28H20
GEAR, 4TH DRIVE (NT:20) | NT:20
$136.99¢68 494
1
#5
24242-28H00
BUSH, 4TH DRIVE GEAR
$39.12¢19 562
1
#6
24251-28H10
GEAR, 5TH DRIVE (NT:22) | NT:22
$126.47¢63 233
1
#7
09167-25026
LOCK WASHER
$4.48¢2 242
1
#8
09181-17223
SHIM (17X30X1)
$3.36¢1 679
1
#9
09181-25059
SHIM (25X34X1)
$3.42¢1 708
1
#10
09181-25139
SHIM (25X32X1)
$3.36¢1 679
1
#11
09380-25010
CIRCLIP
$3.36¢1 679
1
#12
09380-25010
CIRCLIP
$3.36¢1 679
1
#13
08123-62030
BEARING
$30.74¢15 370
1
#14
08143-62057
BEARING | LH
$26.39¢13 196
1
#15
24131-28H20
SHAFT, DRIVE
$259.59¢129 795
1
#16
24311-28H10
GEAR, 1ST DRIVEN (NT:27) | NT:27
$133.51¢66 758
1
#17
24321-28H10
GEAR, 2ND DRIVEN (NT:25) | NT:25
$133.51¢66 758
1
#18
24331-28H30
GEAR, 3RD DRIVEN (NT:21)
$132.77¢66 384
1
#19
24341-28H20
GEAR, 4TH DRIVEN (NT:21) | NT:21
$167.64¢83 818
1
#20
24351-28H30
GEAR, 5TH DRIVEN (NT:20) | NT:20
$151.08¢75 538
1
#21
09181-17223
SHIM (17X30X1)
$3.36¢1 679
1
#22
09181-20195
SHIM (20X30X1)
$3.09¢1 547
1
#23
09181-24005
SHIM (24X34X1)
$3.85¢1 926
1
#24
09181-25111
SHIM (25X30X1)
$4.94¢2 472
1
#25
09181-27015
SHIM (27X33X1)
$5.55¢2 777
1
#26
09262-24001
BEARING (24X56X14)
$108.91¢54 453
1
#27
09289-31003
OIL SEAL (31X40X8.5)
$14.85¢7 423
1
#28
09300-20037
BUSH (20X24X10)
$21.62¢10 810
1
#29
24322-28H00
BUSH, 2ND DRIVEN GEAR
$27.05¢13 524
1
#30
09380-25010
CIRCLIP
$3.36¢1 679
1
#31
08123-62030
BEARING
$30.74¢15 370
1
#32
24741-20A00
RETAINER, BEARING
$3.36¢1 679
1
#33
24751-28H00
RETAINER, DRIVE SHAFT OIL SEA
$19.99¢9 994
1
#34
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#35
26260-28H00
GEAR, KICK STARTER IDLE | NT:27
$136.68¢68 339
1
#36
09181-17130
SHIM (17X24X0.5)
$3.36¢1 679
1
#37
27511-28H20
SPROCKET, ENGINE (NT:13) | NT:13
$38.43¢19 217
1
#38
27531-35G01
SPACER, ENGINE SPROCKET
$35.50¢17 750
1
#39
27600-28H00-114
CHAIN ASSY, DRIVE (DID520DMA2K)
$300.69¢150 345
1
#40
27620-28H00
.JOINT SET, CHAIN
$24.78¢12 391
1
#41
27641-28H00
PLATE, FRONT CHAIN GUIDE
$13.65¢6 825
1
#42
27515-28H00
D RING, SPROCKET SPACER
$7.34¢3 669
1
#43
27514-49H00
WASHER, ENGINE SPROCKET WAVE
$8.34¢4 169
1
#44
27513-49H00
WASHER, ENGINE SPROCKET
$18.86¢9 430
1
#45
27517-28H00
BOLT, ENGINE SPROCKET
$8.52¢4 261
1
#46
24741-21A00
RETAINER, BEARING
$3.36¢1 679
1
#47
09125-06122
SCREW (6X12)
$2.64¢1 322
1
#48
08331-31179
CIRCLIP
$2.25¢1 127
1
#49
27516-28H00
WASHER, ENG SPROCKET BOLT LOC
$15.62¢7 809
1
