206B TRANSMISSION DR Z125LL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

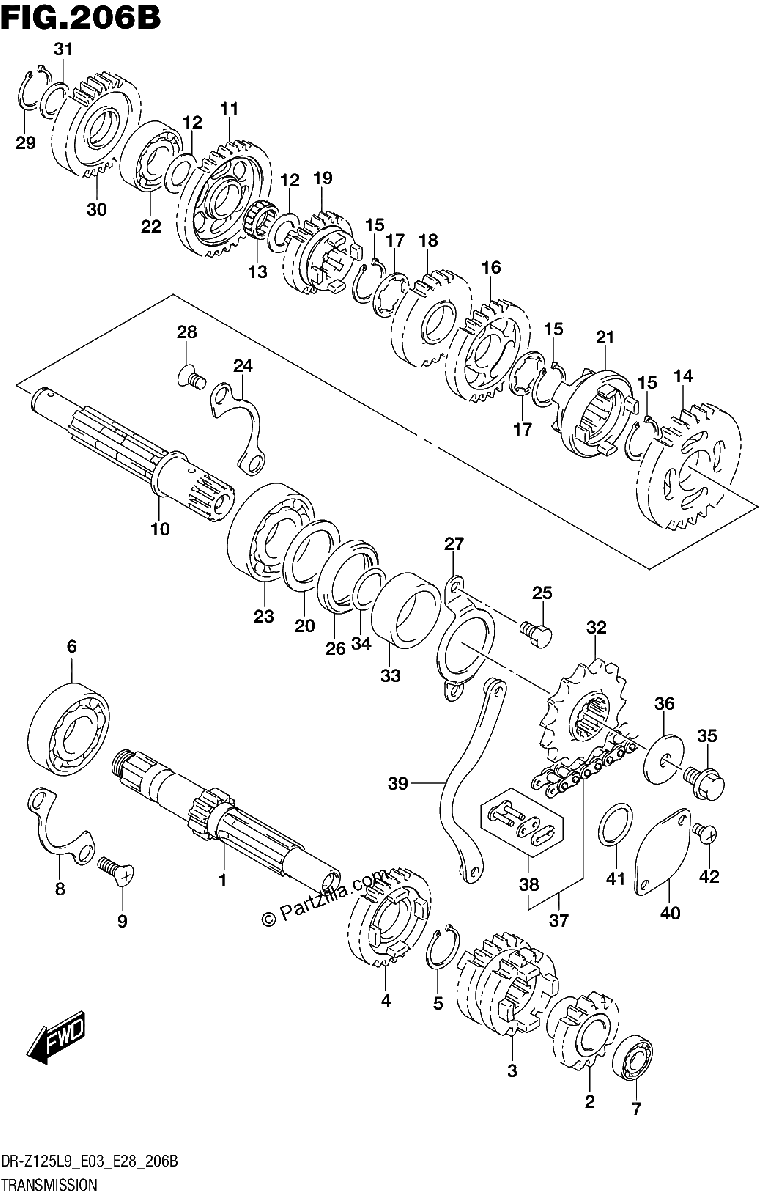

Diagrama de 206B TRANSMISSION DR Z125LL9 E03

Repuestos

#1
24120-05850
SHAFT, COUNTER (NT:11)
No Disponible
1
#2
24221-05301
GEAR, 2ND DRIVE (NT:14)
No Disponible
1
#3
24231-05203
GEAR, 3RD/4TH DR (NT:19/21)
No Disponible
1
#4
24251-05212
GEAR, 5TH DRIVE (NT:26)
No Disponible
1
#5
09380-20009
CIRCLIP
$2.60¢1 300
1
#6
09262-20069
BEARING (20X47X14) | RH
$27.36¢13 681
1
#7
08123-60027
BEARING | LH
$30.56¢15 281
1
#8
24741-05200
RETAINER, DRIVE SHAFT BEARING
No Disponible
1
#9
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#10
24130-44A00
SHAFT, DRIVE
No Disponible
1
#11
24311-05202
GEAR, 1ST DRIVEN (NT:33)
No Disponible
1
#12
08211-15251
THRUST WASHER
$2.19¢1 094
1
#13
09263-15023
BEARING (15X19X7.8)
No Disponible
1
#14
24320-05202
GEAR, 2ND DRIVEN (NT:26)
No Disponible
1
#15
09380-20009
CIRCLIP
$2.60¢1 300
1
#16
24331-05203
GEAR, 3RD DRIVEN (NT:26)
No Disponible
1
#17
09167-20034
LOCK WASHER
No Disponible
1
#18
24341-05203
GEAR, 4TH DRIVEN (NT:23)
No Disponible
1
#19
24351-05211
GEAR, 5TH DRIVEN (NT:24)
No Disponible
1
#20
24359-42A00
WASHER, OIL SEALING
$5.88¢2 938
1
#21
24421-05300
WHEEL, SLIDING DOG
No Disponible
1
#22
09264-15001
BEARING (15X36X12)
No Disponible
1
#23
09262-22018
BEARING (22X50X14) | RH
$33.60¢16 800
1
#24
24741-05200
RETAINER, DRIVE SHAFT BEARING
No Disponible
1
#25
01500-0610A
.BOLT
$2.94¢1 469
1
#26
09283-30053
OIL SEAL (30X40X6)
$10.86¢5 431
1
#27
24751-42A10
RETAINER, DRIVE SHAFT OIL SEA
$6.10¢3 050
1
#28
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#29
08331-3115A
CIRCLIP
$2.56¢1 281
1
#30
26260-05201
GEAR, KICK STARTER IDLE
No Disponible
1
#31
09181-15111
SHIM (15X20X1)
$3.90¢1 950
1
#32
27511-44A20
SPROCKET, ENGINE (NT:14)
$47.29¢23 644
1
#33
27531-42A00
SPACER, ENGINE SPROCKET
$31.15¢15 575
1
#34
09280-21008
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
1
#35
01550-0812A
BOLT | FRONT
$3.01¢1 506
1
#36
08211-08283
WASHER
$3.65¢1 825
1
#37
27600-46912-130
CHAIN ASSY (DID428HD(I))
$121.94¢60 969
1
#38
27620-46912
.JOINT (DID428HD(I))
$7.50¢3 750
1
#39
27640-08G00
PLATE, FRONT CHAIN
$19.68¢9 838
1
#40
11450-08G00
CAP, NEUTRAL SW
No Disponible
1
#41
09280-22001
O RING (D:2.4, ID:21.8)
$1.93¢963
1
#42
02112-0508A
SCREW
$1.86¢931
1
