CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

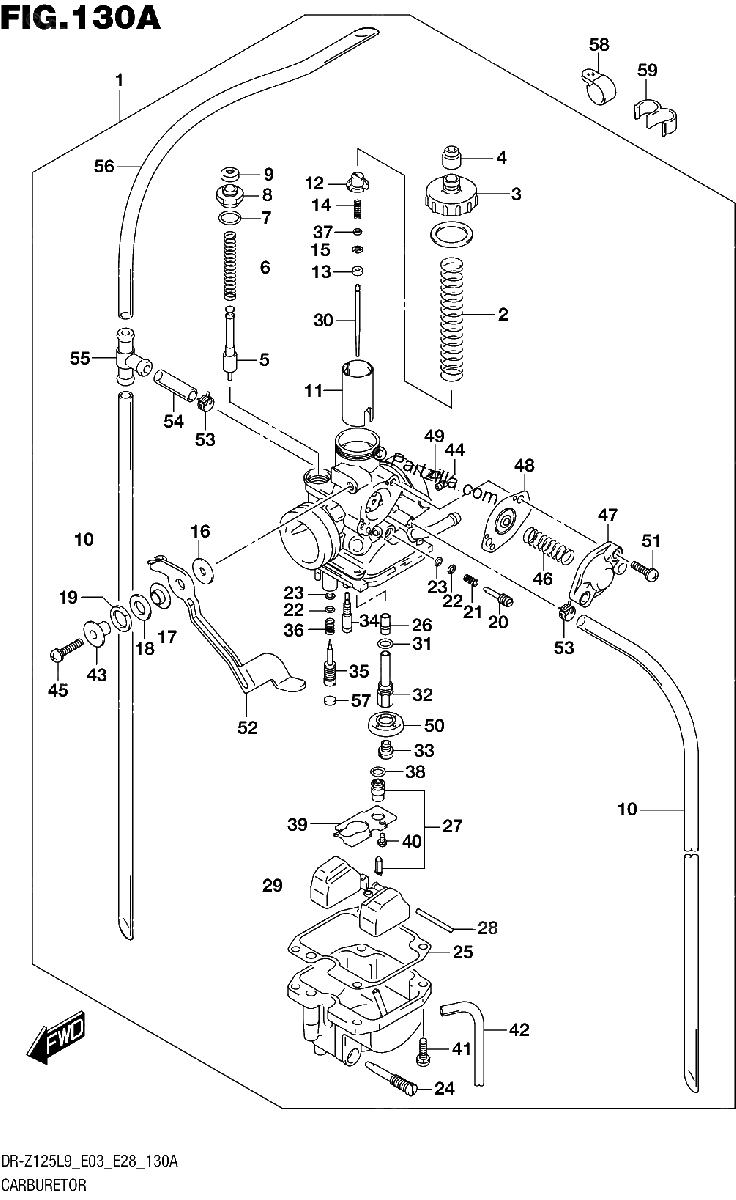

Diagrama de CARBURETOR

Repuestos

#1
13200-08G01
CARBURETOR ASSY
$264.97¢132 486
1
#2
13573-08G00
.SPRING
$12.50¢6 250
1
#3
13261-08G00
.MIXING CAP ASSY
$39.87¢19 935
1
#4
13681-04010
.CAP
$5.40¢2 702
1
#5
13411-05320
.PLUNGER ASSY
$33.27¢16 635
1
#6
13417-08G00
.SPRING
$6.90¢3 450
1
#7
13278-47090
.O RING
$2.27¢1 133
1
#8
13418-44080
.HOLDER, GUIDE
$11.28¢5 641
1
#9
13682-31210
.CAP, STARTER VALVE
$4.80¢2 398
1
#10
13686-08G20
.HOSE (5X8X475)
$13.11¢6 555
1
#11
13551-08G00
.PISTON VALVE
$49.75¢24 874
1
#12
13389-08G00
.HOLDER
$9.14¢4 571
1
#13
13387-47010
.RING
$8.15¢4 077
1
#14
13481-33E00
.SPRING
$4.17¢2 087
1
#15
13394-40D20
.E RING
$6.76¢3 381
1
#16
13421-05320
.WASHER
$3.88¢1 938
1
#17
13432-05320
.RING
$5.29¢2 645
1
#18
13589-47070
.WASHER
$2.21¢1 104
1
#19
08321-01087
.WASHER
$2.20¢1 098
1
#20
13267-08G00
.ADJUST SCREW
$16.99¢8 493
1
#21
13268-08G00
.SPRING
$6.07¢3 036
1
#22
13291-29900
.WASHER
$2.15¢1 075
1
#23
13295-29900
.O RING
$4.76¢2 380
1
#24
13247-08G00
.SCREW
$7.57¢3 783
1
#25
13251-29B00
.GASKET
$8.44¢4 220
1
#26
13341-08G00
.NEEDLE, JET
$51.73¢25 863
1
#27
13370-08G00
.VALVE ASSY, NEEDLE
$73.94¢36 973
1
#28
13254-01010
.PIN, FLOAT
$4.08¢2 041
1
#29
13240-08G00
.FLOAT ASSY
$51.77¢25 886
1
#30
13383-08G00
.JET, NEEDLE (5HGM74)
$23.37¢11 684
1
#31
13246-43010
.O RING
$4.76¢2 380
1
#32
13385-08G00
.JET HOLDER
$43.72¢21 862
1
#33
09491-20012
.JET, MAIN (102.5)
$13.74¢6 871
1
#34
09492-17017
.JET, PILOT (17.5)
$32.52¢16 261
1
#35
13279-08G00
.ADJUSTER
$18.43¢9 217
1
#36
13268-47070
.SPRING
$4.76¢2 380
1
#37
13382-08G00
.WASHER
$5.61¢2 806
1
#38
13374-46710
.O RING
$4.91¢2 455
1
#39
13259-29B10
.PLATE
No Disponible
1
#40
13601-03068
.SCREW
$3.66¢1 829
1
#41
13601-04148
.SCREW
$3.36¢1 679
1
#42
13684-40A00
.HOSE | L:650-400
$10.82¢5 411
1
#43
13424-05320
.RING
$7.61¢3 807
1
#44
09493-85001
.JET, AIR (85.0)
No Disponible
1
#45
13601-44A10
.SCREW
$5.38¢2 691
1
#46
13481-08G00
.SPRING
$5.67¢2 835
1
#47
13502-10F00
.COVER ASSY
$49.30¢24 650
1
#48
13480-10F00
.DIAPHRAGM ASSY
$18.42¢9 212
1
#49
09492-29002
.JET, POWER (145)
No Disponible
1
#50
13387-08G00
.HOLDER
$8.80¢4 399
1
#51
13601-08G00
.SCREW
$4.71¢2 357
1
#52
13413-08G00
.LEVER
$32.97¢16 485
1
#53
13671-08G00
.CLIP
$7.11¢3 553
1
#54
13686-08G00
.HOSE (5X8X25)
$3.70¢1 852
1
#55
13685-48B00
JOINT
$13.71¢6 854
1
#56
13686-08G10
.HOSE (5X8X375)
$10.67¢5 336
1
#57
13281-05A00
.PLUG
$5.05¢2 524
1
#58
09403-22403
CLAMP
No Disponible
1
#59
09408-00033
CLAMP
$3.43¢1 713
1
