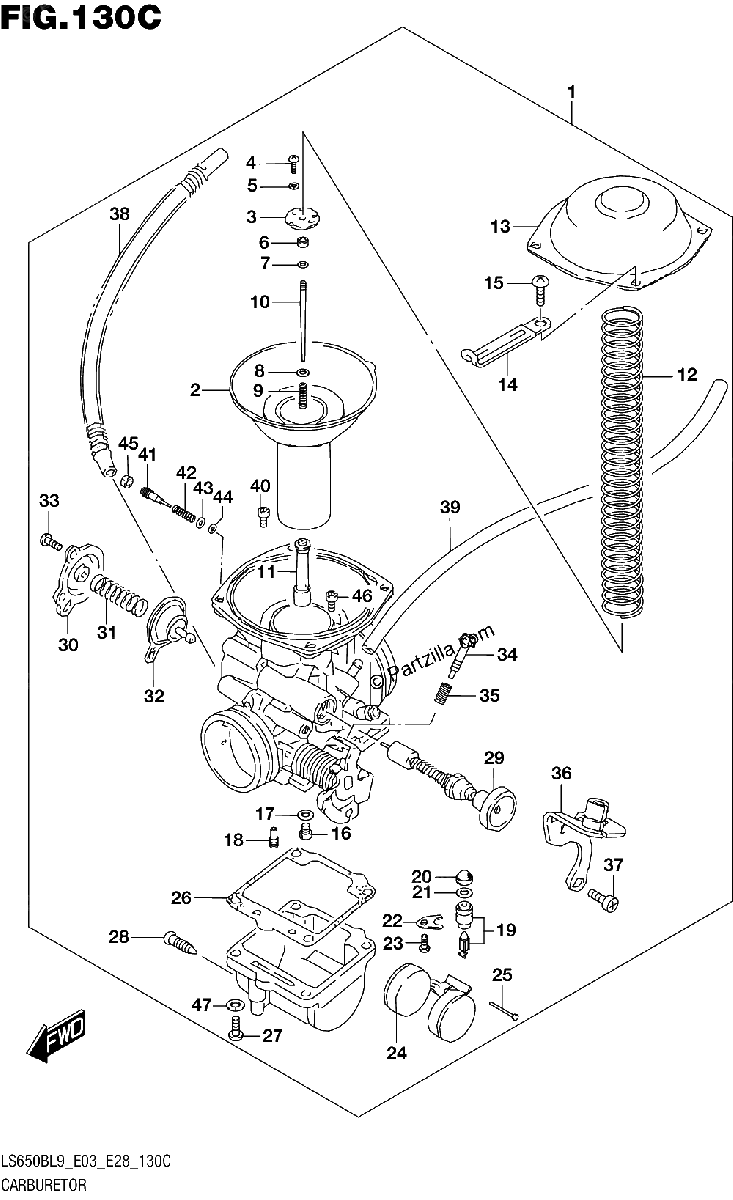

130C CARBURETOR LS650BL9 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY
$1280.47¢640 234
#2
.DIAPHRAGM ASSY
$284.39¢142 198
#3
.PLATE
$8.80¢4 399
#4
.SCREW
$1.92¢960
#5
.LOCK WASHER
$1.99¢995
#6
.RING
$6.58¢3 289
#7
.CLIP NEEDLE
$5.23¢2 616
#8
.WASHER
$4.19¢2 093
#9
.SPRING
$10.09¢5 043
#10
.NEEDLE, JET (5C17)
$22.91¢11 454
#11
.JET, NEEDLE (X-7M)
$62.71¢31 355
#12
.SPRING
$28.66¢14 329
#13
.COVER
No Disponible
#14
CLAMP (L:80)
$2.10¢1 052
#15
SCREW
$1.71¢857
#16
.JET, MAIN (145)
$20.96¢10 482
#17
.WASHER
$3.36¢1 679
#18
.JET, PILOT (52.5)
$16.10¢8 050
#19
.VALVE ASSY, NEEDLE
$107.73¢53 866
#20
.FILTER
$11.28¢5 641
#21
.O RING, NEEDLE VALVE SEAT
$6.57¢3 283
#22
.PLATE
No Disponible
#23
.SCREW
$1.85¢926
#24
.FLOAT
$31.79¢15 893
#25
.PIN, FLOAT
$2.64¢1 322
#26
.GASKET, FLOAT CHAMBER
$12.34¢6 170
#27
SCREW
$1.74¢868
#28
.SCREW, DRAIN
$3.28¢1 639
#29
.PLUNGER ASSY
$70.41¢35 207
#30
.COVER
$27.60¢13 800
#31
.SPRING
$5.40¢2 702
#32
.DIAPHRAGM ASSY
$58.41¢29 204
#33
.SCREW
$1.56¢782
#34
.ADJUSTER
$17.63¢8 815
#35
.SPRING
$6.42¢3 209
#36
.BRACKET ASSY
$62.21¢31 107
#37
SCREW
$1.71¢857
#38
.HOSE ASSY
$20.95¢10 476
#39
HOSE (5X8.2X600)
$10.88¢5 440
#40
.JET, PILOT (230)
$20.96¢10 482
#41
.SCREW, AIR
$12.82¢6 411
#42
.SPRING
$4.76¢2 380
#43
.WASHER
$2.15¢1 075
#44
.O RING
$4.76¢2 380
#45
.PLUG
$5.05¢2 524
#46
.JET (#45)
$20.96¢10 482
#47
.LOCK WASHER
$2.20¢1 098
