483D UNDER COWLING GSX S750YAL9 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

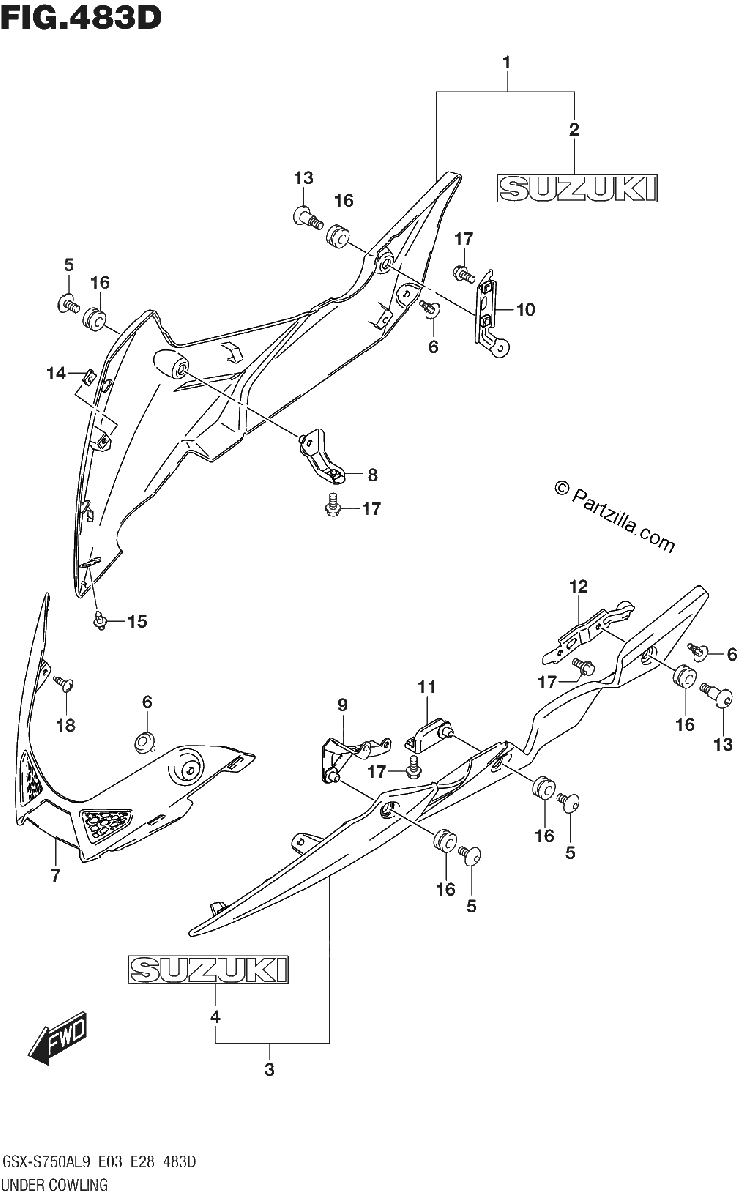

Diagrama de 483D UNDER COWLING GSX S750YAL9 E28

Repuestos

#5
09106-06136
BOLT
$6.56¢3 281
1
#6
94479-35F00
CLIP
$6.70¢3 350
1
#7
94491-13K00
COWLING, UNDER CENTER
$10.46¢5 231
1
#8
94510-13K01
BRACKET, UNDER COWL NO.1 RH
$15.41¢7 706
1
#9
94520-13K00
BRACKET, UNDER COWL NO.1 LH
$18.35¢9 175
1
#10
94530-08J00
BRACKET, UNDER COWL RR RH
$14.40¢7 200
1
#1-1
94470-13K00-6CX
COWLING, UNDER RH (BLUE)
No Disponible
1
#11
94530-13K00
BRACKET, UNDER COWL NO.2 LH
$14.40¢7 200
1
#1-2
94470-13K00-YWW
COWLING, UNDER RH (WHITE)
$400.16¢200 081
1
#12
94540-08J00
BRACKET, UNDER COWL RR LH
$14.40¢7 200
1
#13
09139-06190
BOLT (6X20)
$4.91¢2 456
1
#14
09148-05038
NUT
$2.56¢1 281
1
#15
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#16
09320-09016
CUSHION
$2.56¢1 281
1
#17
01550-0612A
BOLT
$2.56¢1 281
1
#18
03541-0516B
SCREW
$2.30¢1 150
1
#2-1
68111-47C10-YWW
.EMBLEM, "SUZUKI" (WHITE)
$22.48¢11 238
1
#2-2
68111-47C10-019
.EMBLEM, "SUZUKI" (BLACK)
$27.64¢13 819
1
#3-1
94480-13K00-6CX
COWLING, UNDER LH (BLUE)
No Disponible
1
#3-2
94480-13K00-YWW
COWLING, UNDER LH (WHITE)
$400.16¢200 081
1
#4-1
68111-47C10-YWW
.EMBLEM, "SUZUKI" (WHITE)
$22.48¢11 238
1
#4-2
68111-47C10-019
.EMBLEM, "SUZUKI" (BLACK)
$27.64¢13 819
1
