445D FRAME COVER GSX S1000YAL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

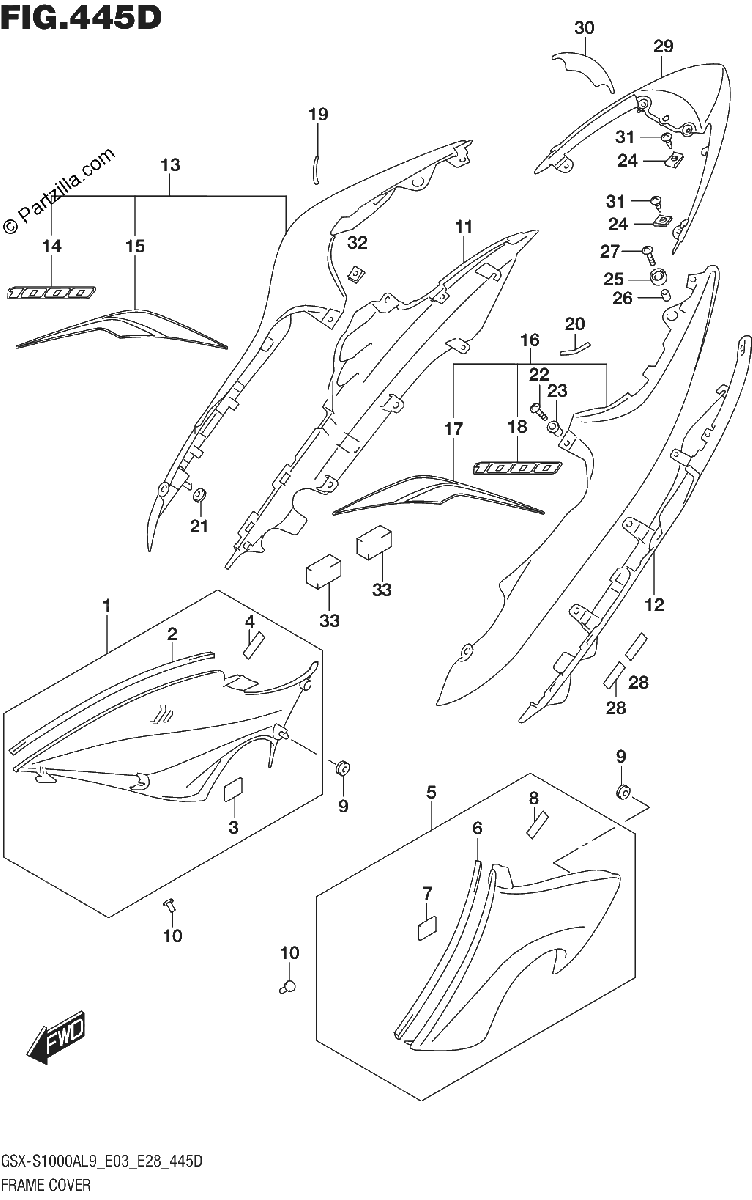

Diagrama de 445D FRAME COVER GSX S1000YAL9 E03

Repuestos

#1
47110-04K00
COVER, FRAME FRONT RH
$90.29¢45 144
1
#2
44277-37H00
.CUSHION, SIDE COVER
$6.35¢3 175
1
#3
44572-13G00
FASTENER
$13.19¢6 594
1
#4
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#5
47210-04K00
COVER, FRAME FRONT LH
$69.84¢34 919
1
#6
44277-37H00
.CUSHION, SIDE COVER
$6.35¢3 175
1
#7
44572-13G00
FASTENER
$13.19¢6 594
1
#8
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#9
09320-06504
CUSHION
$5.83¢2 913
1
#10
09409-10314
CLIP
$2.59¢1 294
1
#11
47131-04K00
COVER, FRAME REAR LOWER RH
$33.09¢16 544
1
#12
47231-04K00
COVER, FRAME REAR LOWER LH
$33.69¢16 844
1
#19
47313-04K01
TAPE, FRAME COVER RH
No Disponible
1
#20
47314-04K01
TAPE, FRAME COVER LH
$17.19¢8 594
1
#21
09320-08028
CUSHION
$3.65¢1 825
1
#22
02142-1520B
SCREW
$3.05¢1 525
1
#23
09159-05019
NUT
$8.39¢4 194
1
#24
09148-05047
NUT
$2.64¢1 319
1
#25
47312-37H00
CUSHION
$3.65¢1 825
1
#26
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#27
09136-06105
SCREW (6X20)
$2.59¢1 294
1
#28
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#30
47312-04K00
TAPE, FRAME COVER CTR
$17.19¢8 594
1
#31
03541-0512B
SCREW
$2.30¢1 150
1
#32
09148-05047
NUT
$2.64¢1 319
1
#33
17798-39G00
CUSHION, CENTER
$7.97¢3 988
1
#13-1
47120-04K30-YSF
COVER, FRAME REAR UPPER RH (BLUE)
No Disponible
1
#13-2
47120-04K30-YWW
COVER, FRAME REAR UPPER RH (WHITE)
$237.66¢118 831
1
#14-1
68131-04K10-AGQ
.EMBLEM,"1000" RH (BLUE/WHITE *{FOR YSF}*
No Disponible
1
#14-2
68131-04K10-AR9
.EMBLEM,"1000" RH (WHITE/BLAC ) *{FOR YWW}*
No Disponible
1
#15-1
68135-04K50-A3F
.TAPE, FRAME COVER, RH
$44.15¢22 075
1
#15-2
68135-04K50-BVC
.TAPE, FRAME COVER, RH
$40.96¢20 481
1
#16-1
47220-04K30-YSF
COVER, FRAME REAR UPPER LH (BLUE)
No Disponible
1
#16-2
47220-04K30-YWW
COVER, FRAME REAR UPPER LH (WHITE)
$237.66¢118 831
1
#17-1
68141-04K10-AGQ
.EMBLEM,"1000" LH (BLUE/WHITE *{FOR YSF}*
No Disponible
1
#17-2
68141-04K10-AR9
.EMBLEM,"1000" LH (WHITE/BLAC ) *{FOR YWW}*
$36.10¢18 050
1
#18-1
68145-04K50-A3F
.TAPE, FRAME COVER, LH
$44.15¢22 075
1
#18-2
68145-04K50-BVC
.TAPE, FRAME COVER, LH
$40.96¢20 481
1
#29-1
47311-04K00-YSF
COVER, FRAME CENTER (BLUE) *{FOR KEL}*
$144.66¢72 331
1
#29-2
47311-04K00-YKV
COVER, FRAME CENTER (BLACK) *{FOR PGZ}*
$149.34¢74 669
1
