451D HEADLAMP HOUSING GSX S1000YAL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

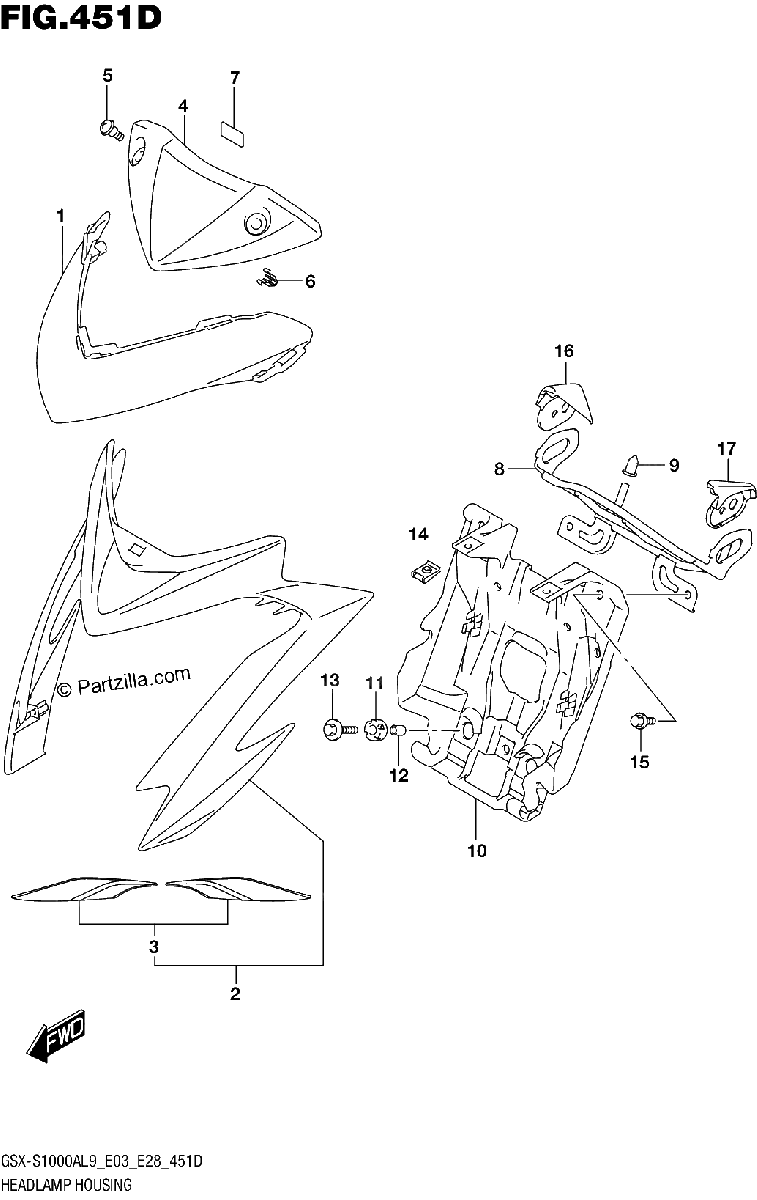

Diagrama de 451D HEADLAMP HOUSING GSX S1000YAL9 E03

Repuestos

#1
51831-04K00-YKV
COVER, HEADLAMP LOWER (BLACK)
$117.04¢58 518
1
#4
51811-04K00
COVER, METER
$38.85¢19 424
1
#5
09139-05503
SCREW (5X13)
$3.24¢1 621
1
#6
09409-08326
CLIP
$2.93¢1 466
1
#7
33652-47F00
CUSHION, LICENSE PLATE
$4.05¢2 024
1
#8
51850-04K10
BRACE, METER
$107.20¢53 601
1
#9
51831-30H00
CUSHION, BRACE
$3.36¢1 679
1
#10
51841-04K00
COVER, HEADLAMP REAR
$41.92¢20 959
1
#11
09320-09010
CUSHION
$3.36¢1 679
1
#12
09180-06307
SPACER (6.5X9X10)
$3.36¢1 679
1
#13
09116-06131
BOLT (6X25)
$2.01¢1 006
1
#14
09148-06020
NUT
$4.81¢2 403
1
#15
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#16
51842-04K00
COVER, HEADLAMP REAR RH
$16.12¢8 061
1
#17
51843-04K00
COVER, HEADLAMP REAR LH
$19.87¢9 936
1
#2-1
51820-04K10-YSF
COVER, HEADLAMP UPPER (BLUE)
No Disponible
1
#2-2
51820-04K10-YWW
COVER, HEADLAMP UPPER (WHITE)
$218.65¢109 325
1
#3-1
68210-04K10-A3F
.TAPE SET, HEADLAMP COVER
$44.25¢22 126
1
#3-2
68210-04K10-BVC
.TAPE SET, HEADLAMP COVER
$44.25¢22 126
1
