483F UNDER COWLING GSX S1000YAL9 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

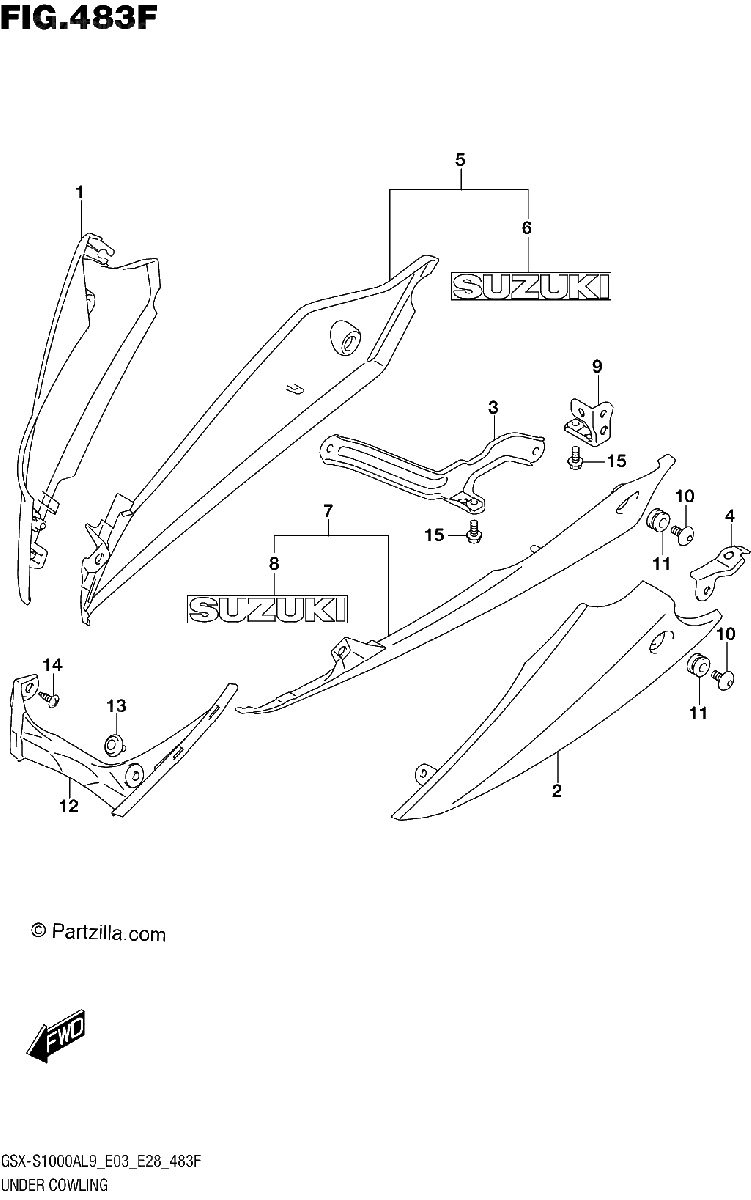

Diagrama de 483F UNDER COWLING GSX S1000YAL9 E33

Repuestos

#1
94471-04K00-YKV
COWLING, UNDER RH (BLACK)
$352.93¢176 467
1
#2
94472-04K00-YKV
COWLING, UNDER LH (BLACK)
$352.93¢176 467
1
#3
94530-04K00
BRACKET, UNDER COWL RH
$62.44¢31 222
1
#4
94520-04K00
BRACKET, UNDER COWL FR LH
$26.59¢13 294
1
#9
94540-04K00
BRACKET, UNDER COWL RR LH
$14.95¢7 475
1
#10
09106-06117
BOLT (6X12)
$5.59¢2 794
1
#11
09320-09016
CUSHION
$2.36¢1 179
1
#12
94475-04K00
COWLING, UNDER CTR
$22.51¢11 253
1
#13
94479-35F00
CLIP
$6.16¢3 082
1
#14
03541-0516A
SCREW
$1.64¢822
1
#15
01550-0612A
BOLT
$2.36¢1 179
1
#5-1
94470-04K00-6CX
COWLING, UNDER REAR RH (BLUE)
$368.15¢184 075
1
#5-2
94470-04K00-YWW
COWLING, UNDER REAR RH (WHITE
$368.15¢184 075
1
#6-1
68181-04K00-YWW
.EMBLEM, "SUZUKI" (WHITE)
$19.43¢9 717
1
#6-2
68181-04K00-019
.EMBLEM, "SUZUKI" (BLACK)
$15.52¢7 762
1
#7-1
94480-04K00-6CX
COWLING, UNDER REAR LH (BLUE)
$368.15¢184 075
1
#7-2
94480-04K00-YWW
COWLING, UNDER REAR LH (WHITE
$368.15¢184 075
1
#8-1
68181-04K00-YWW
.EMBLEM, "SUZUKI" (WHITE)
$19.43¢9 717
1
#8-2
68181-04K00-019
.EMBLEM, "SUZUKI" (BLACK)
$15.52¢7 762
1
