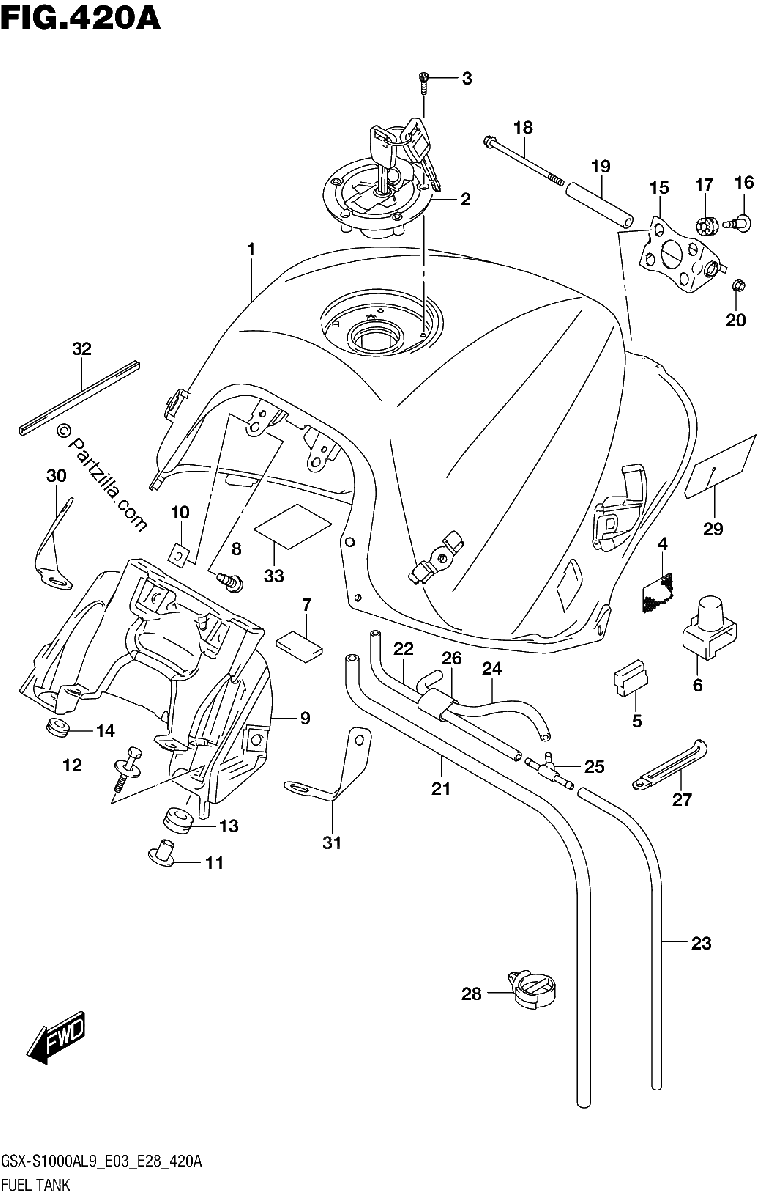

420A FUEL TANK GSX S1000AL9 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TANK ASSY, FUEL (BLACK)
$1521.36¢760 679
#2
CAP SET, FUEL TANK
$268.35¢134 176
#3
BOLT
$4.51¢2 254
#4
FASTENER
$12.13¢6 066
#5
CUSHION, SIDE
$6.55¢3 278
#6
CUSHION, REAR
$11.01¢5 503
#7
CUSHION, FUEL TANK INNER
$3.36¢1 679
#8
SCREW, BRACKET FRONT
No Disponible
#9
BRACKET, FUEL TANK FRONT
$117.97¢58 983
#10
NUT(M6)
$14.63¢7 314
#11
SPACER, FUEL TANK FRONT
$8.77¢4 387
#12
BOLT (6X30)
$2.99¢1 495
#13
CUSHION
$3.68¢1 840
#14
CUSHION
$5.36¢2 680
#15
BRACKET, FUEL TANK REAR
No Disponible
#16
SCREW, FUEL TANK REAR BRKT
No Disponible
#17
CUSHION
No Disponible
#18
BOLT (6X100)
$3.02¢1 512
#19
SPACER, FUEL TANK REAR
$18.61¢9 304
#20
NUT
$3.36¢1 679
#21
HOSE,FUEL TANK DRAIN NO.1
No Disponible
#22
HOSE,FUEL TANK BRTHR NO.1
$12.90¢6 452
#23
HOSE,FUEL TANK BRTHR NO.2
No Disponible
#24
HOSE,FUEL TANK BRTHR NO.3
$17.04¢8 522
#25
3 WAY
$3.81¢1 903
#26
HOSE,BRTHR CLAMP
No Disponible
#27
CLAMP (L:80)
$2.10¢1 052
#28
CLAMP
No Disponible
#29
PROTECTOR
$7.59¢3 795
#30
BRACKET, FUEL TANK FRONT, RH
$11.75¢5 877
#31
BRACKET, FUEL TANK FRONT, LH
$11.75¢5 877
#32
MOLDING, FUEL TANK
$15.89¢7 946
#33
CUSHION, FUEL TANK
$6.69¢3 347
