445A FRAME COVER VZ800L9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

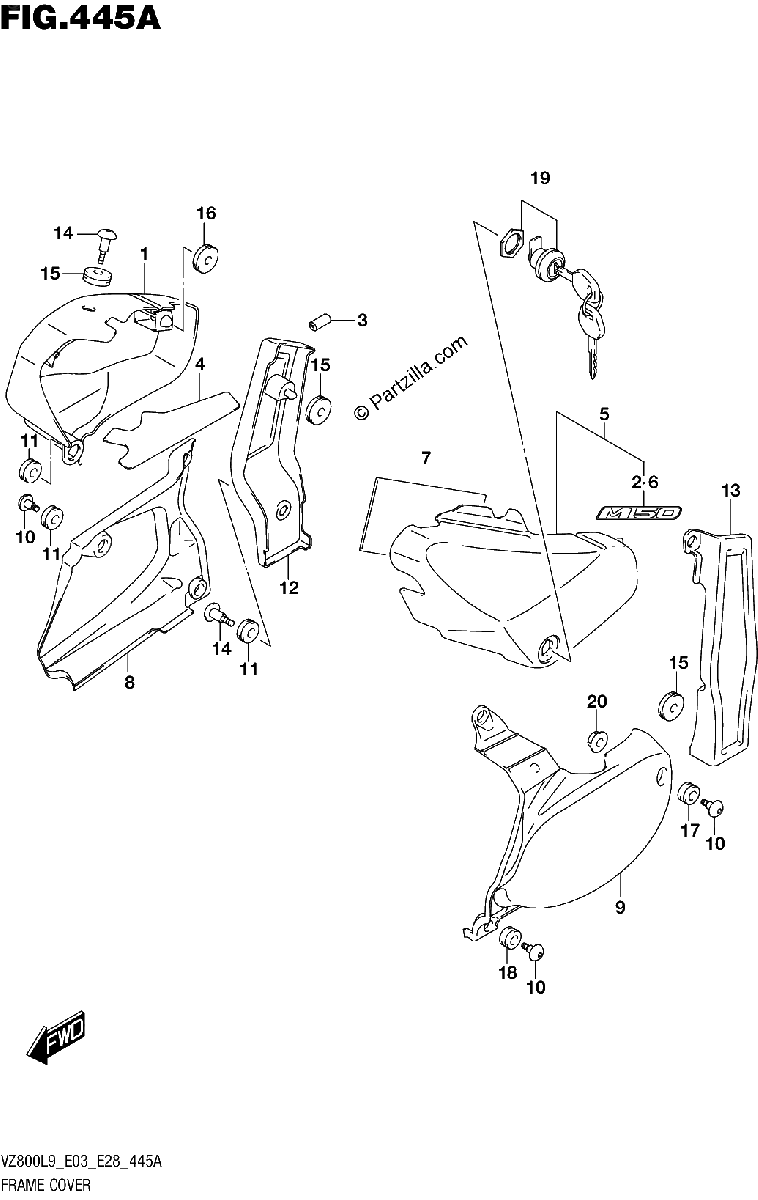

Diagrama de 445A FRAME COVER VZ800L9 E03

Repuestos

#1
47110-39GA0-PGZ
COVER, FRAME RH (GRAY)
$249.98¢124 988
1
#2
68131-39GA0-AHW
.EMBLEM, M50 (GRAY/BLACK)
$22.00¢11 000
1
#3
94631-35F00
.MOLDING, RH
$9.18¢4 589
1
#4
47166-41F00
.SHIELD, FRAME COVER RH
$22.16¢11 080
1
#5
47210-39GA0-PGZ
COVER, FRAME LH (GRAY)
$249.98¢124 988
1
#6
68131-39GA0-AHW
.EMBLEM, M50 (GRAY/BLACK)
$22.00¢11 000
1
#7
47217-41F00
.CUSHION, LH
$14.89¢7 446
1
#8
47130-41F10
COVER, SIDE LOWER RH
No Disponible
1
#9
47231-41F10
COVER, SIDE LOWER LH
$359.24¢179 618
1
#10
47133-43H00
SCREW
$6.80¢3 398
1
#11
09320-08021
CUSHION | RH
$2.04¢1 018
1
#12
47141-41F01-019
COVER, SIDE REAR RH (BLACK)
$171.29¢85 646
1
#13
47241-41F00-019
COVER, SIDE REAR LH (BLACK)
$171.29¢85 646
1
#14
09139-06126
SCREW (6X20)
$4.37¢2 185
1
#15
09320-08018
CUSHION | LH
$3.36¢1 679
1
#16
09320-08028
CUSHION
$3.36¢1 679
1
#17
09320-09501
CUSHION | RH
$2.47¢1 236
1
#18
09320-09045
CUSHION
$2.48¢1 242
1
#19
95700-07860
LOCK SET, FUEL LID
$83.29¢41 647
1
#20
08316-1006B
NUT
$2.99¢1 495
1
