545B REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

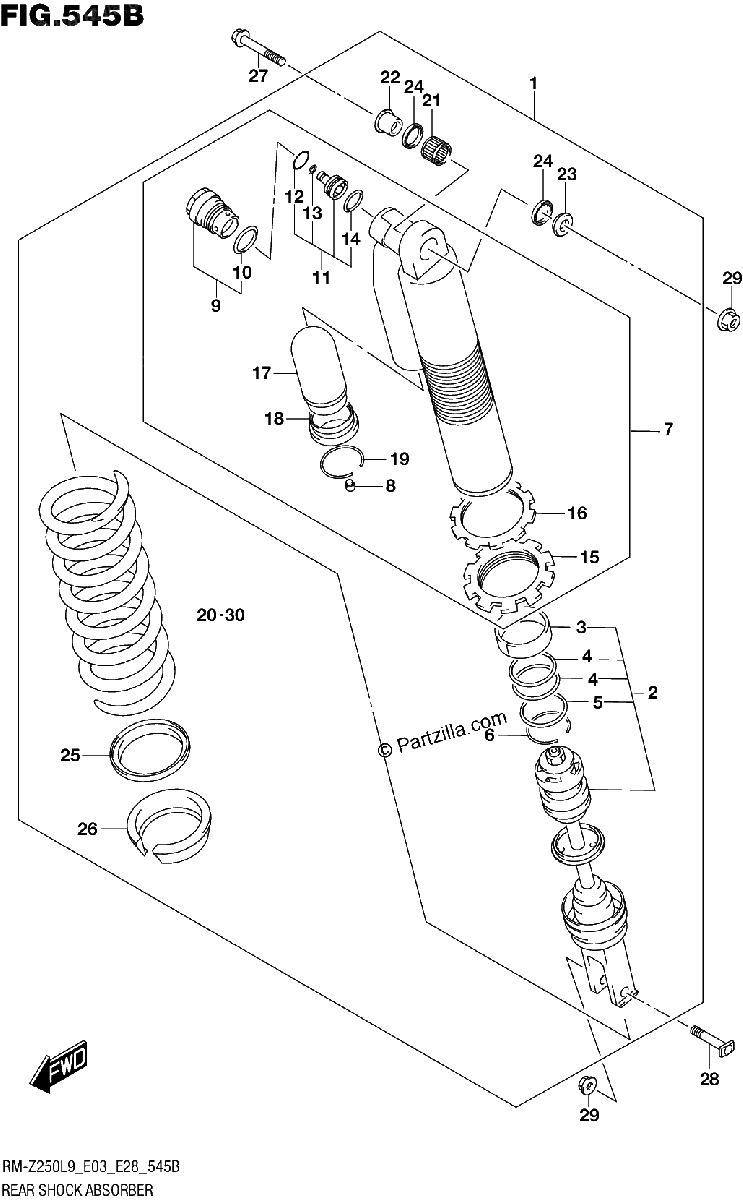

Diagrama de 545B REAR SHOCK ABSORBER

Repuestos

#1
62100-46K10-019
ABSORBER ASSY, RR SHOCK (BLAC )
$1002.22¢501 112
1
#2
62120-46K00
.ROD SUBASSY, PISTON
$689.56¢344 782
1
#3
62131-49HE0
..RING, PISTON
$38.43¢19 217
1
#4
62152-49HE0
..O RING
$5.04¢2 519
1
#5
62153-49HE0
..O RING
$5.04¢2 519
1
#6
62279-49HE0
.RING, STOP
$2.61¢1 305
1
#7
62160-46K00
CYLINDER
$383.03¢191 515
1
#8
51294-40400
.CAP, VALVE AIR
$10.09¢5 043
1
#9
62130-46K00
..VALVE ASSY
$262.98¢131 491
1
#10
62133-49HE0
..O RING
$5.52¢2 760
1
#11
62170-46K00
VALVE
$106.47¢53 233
1
#12
62135-49HE0
..WASHER
$2.61¢1 305
1
#13
62136-49HE0
..O RING
$2.47¢1 236
1
#14
62134-49HE0
..O RING
$3.48¢1 742
1
#15
62191-49HE0
.GUIDE, SPRING
$26.89¢13 443
1
#16
62194-49HE0
.NUT
$20.72¢10 362
1
#17
62273-49HE0
..BLADER
$38.43¢19 217
1
#18
62275-49HE0
..GUIDE
$63.56¢31 780
1
#19
62277-49HE0
.RING, STOP
$3.48¢1 742
1
#20
62211-46K00-019
.SPRING,REAR (BLACK)
No Disponible
1
#21
09263-16033
.BEARING (16X22X12)
$21.91¢10 954
1
#22
62684-36F00
.SPACER, UPPER BEARING RH
$28.66¢14 329
1
#23
62685-36F00
.SPACER, UPPER BEARING LH
$18.97¢9 487
1
#24
09284-16005
.OIL SEAL (16X22X2.5)
$7.51¢3 755
1
#25
62221-46K00
.GUIDE SPRING
$84.03¢42 015
1
#26
62222-49HE0
.GUIDE SPRING
$19.29¢9 643
1
#27
62311-28H00
BOLT, RR SHOCK ABSORBER UPR
$12.22¢6 112
1
#28
62221-37F30
BOLT, RR SHOCK ABSORBER LWR
$9.29¢4 646
1
#29
09159-10067
NUT
$6.70¢3 352
1
#30-1
62211-46K10-019
SPRING,REAR (BLACK) *{OPT SOFT K=50}*
$361.48¢180 740
1
#30-2
62211-46K20-019
SPRING,REAR (BLACK) *{OPT HARD K=54}*
$361.48¢180 740
1
