451E HEADLAMP HOUSING GSX S750YAL9 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

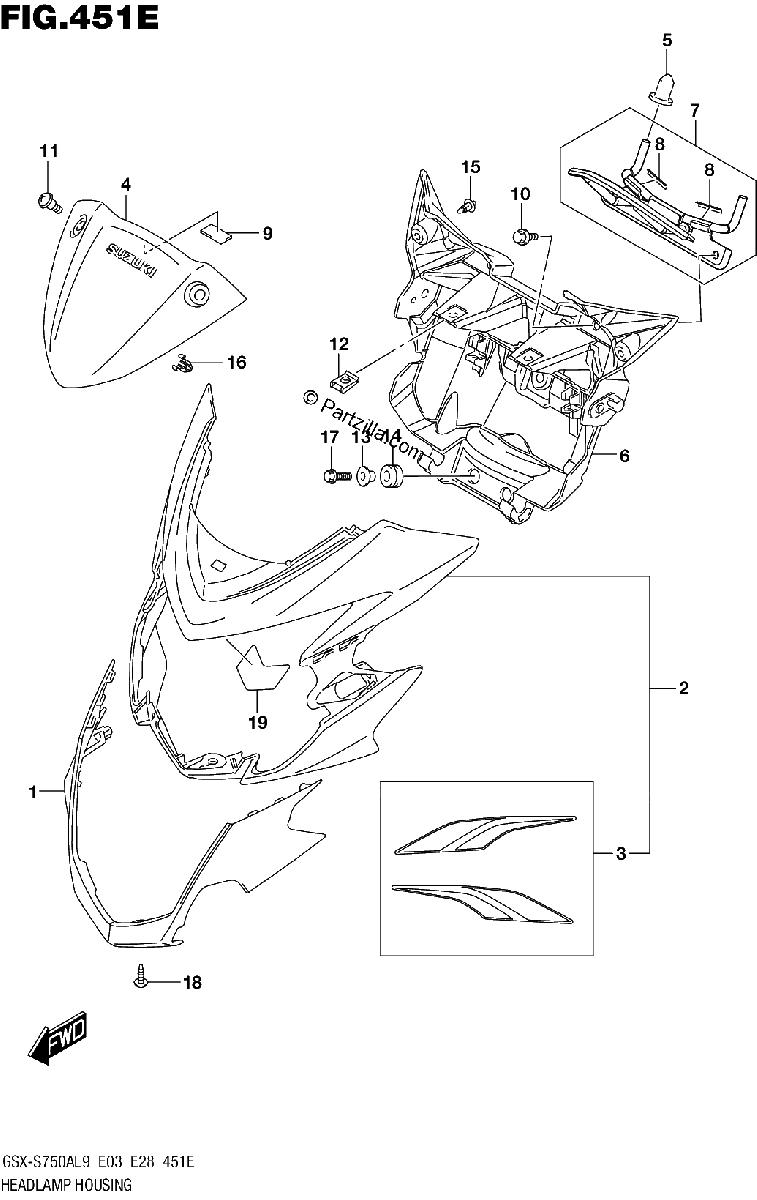

Diagrama de 451E HEADLAMP HOUSING GSX S750YAL9 E33

Repuestos

#1
51831-13K00
COVER, HEADLAMP FRONT
$46.00¢23 000
1
#4
51811-13K00
COVER, METER
$50.12¢25 059
1
#5
51831-30H00
CUSHION, BRACE
$3.36¢1 679
1
#6
51841-13K00
COVER, HEADLAMP REAR
$44.83¢22 413
1
#7
51800-13K00
BRACE, METER
$96.46¢48 231
1
#8
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#9
33652-47F00
CUSHION, LICENSE PLATE
$4.05¢2 024
1
#10
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#11
09139-05503
SCREW (5X13)
$3.24¢1 621
1
#12
09148-06020
NUT
$4.81¢2 403
1
#13
09169-06062
WASHER
$2.99¢1 495
1
#14
09320-09501
CUSHION | RH
$2.47¢1 236
1
#15
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#16
09409-08326
CLIP
$2.93¢1 466
1
#17
01550-0620A
BOLT
$2.36¢1 179
1
#18
03541-0516A
SCREW
$1.64¢822
1
#19
51822-13K00
SHIELD, HEADLAMP COVER HEAT
$11.10¢5 549
1
#2-1
51820-13K00-YSF
COVER, HEADLAMP (BLUE)
No Disponible
1
#2-2
51820-13K00-YWW
COVER, HEADLAMP (WHITE)
$354.22¢177 111
1
#3-1
68210-13K00-A3F
.TAPE SET, HEAD LAMP COVER
$36.97¢18 486
1
#3-2
68210-13K00-BVC
.TAPE SET, HEAD LAMP COVER
$36.97¢18 486
1
