445B FRAME COVER GSX S750ZL9 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

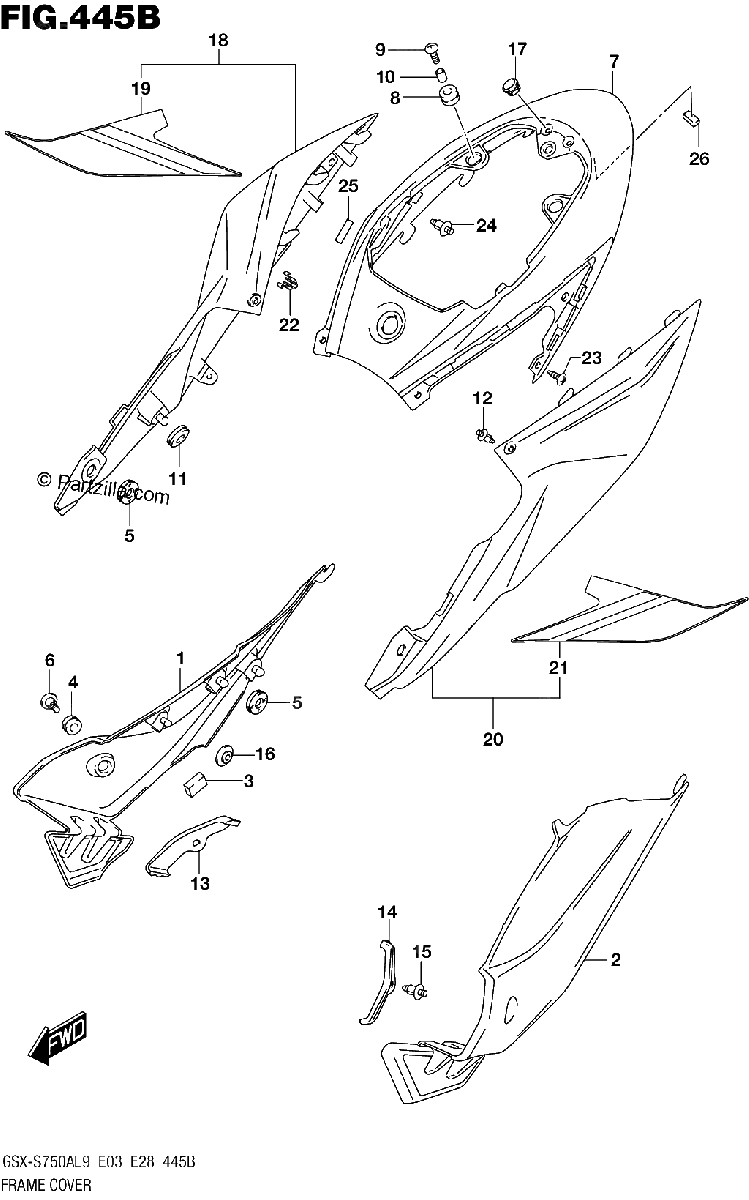

Diagrama de 445B FRAME COVER GSX S750ZL9 E33

Repuestos

#1
47511-13K00
COVER, FRAME FRONT RH
$196.59¢98 294
1
#2
47611-13K00
COVER, FRAME FRONT LH
$118.73¢59 363
1
#3
94422-06G00
CUSHION
$7.85¢3 925
1
#4
09320-09016
CUSHION
$2.56¢1 281
1
#5
09320-08028
CUSHION
$3.65¢1 825
1
#6
47118-08J00
SCREW, FRAME COVER FRONT
$5.88¢2 938
1
#7
47311-13K00-YKV
COVER, FRAME CENTER (BLACK)
$296.29¢148 144
1
#8
47312-37H00
CUSHION
$3.65¢1 825
1
#9
09136-06105
SCREW (6X20)
$2.59¢1 294
1
#10
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#11
09320-08018
CUSHION | LH
$3.65¢1 825
1
#12
09409-06314
CLIP
$3.60¢1 800
1
#13
47711-08J00
COVER, FRAME TOP RH
$9.94¢4 969
1
#14
47811-08J00
COVER, FRAME TOP LH
$9.94¢4 969
1
#15
09409-07333
CLIP
$2.99¢1 494
1
#16
09320-06026
CUSHION
$5.38¢2 688
1
#17
45148-27J00
CUSHION, SEAT MOUNT
$23.25¢11 625
1
#18
47110-13K30-4TX
COVER, FRAME RH (BLACK)
$182.44¢91 219
1
#19
68135-13K30-FNF
.TAPE, FRAME COVER RH (BLUE/BLACK)
No Disponible
1
#20
47210-13K30-4TX
COVER, FRAME LH (BLACK)
$182.44¢91 219
1
#21
68145-13K30-FNF
.TAPE, FRAME COVER LH (BLUE/BLACK)
$19.03¢9 513
1
#22
09409-08326
CLIP
$3.19¢1 594
1
#23
03541-0512B
SCREW
$2.30¢1 150
1
#24
09409-07333
CLIP
$2.99¢1 494
1
#25
44894-24A00
.CUSHION
$2.31¢1 156
1
#26
63211-26G00
CUSHION, LIC
$13.16¢6 581
1
