483A UNDER COWLING GSX S750ZL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

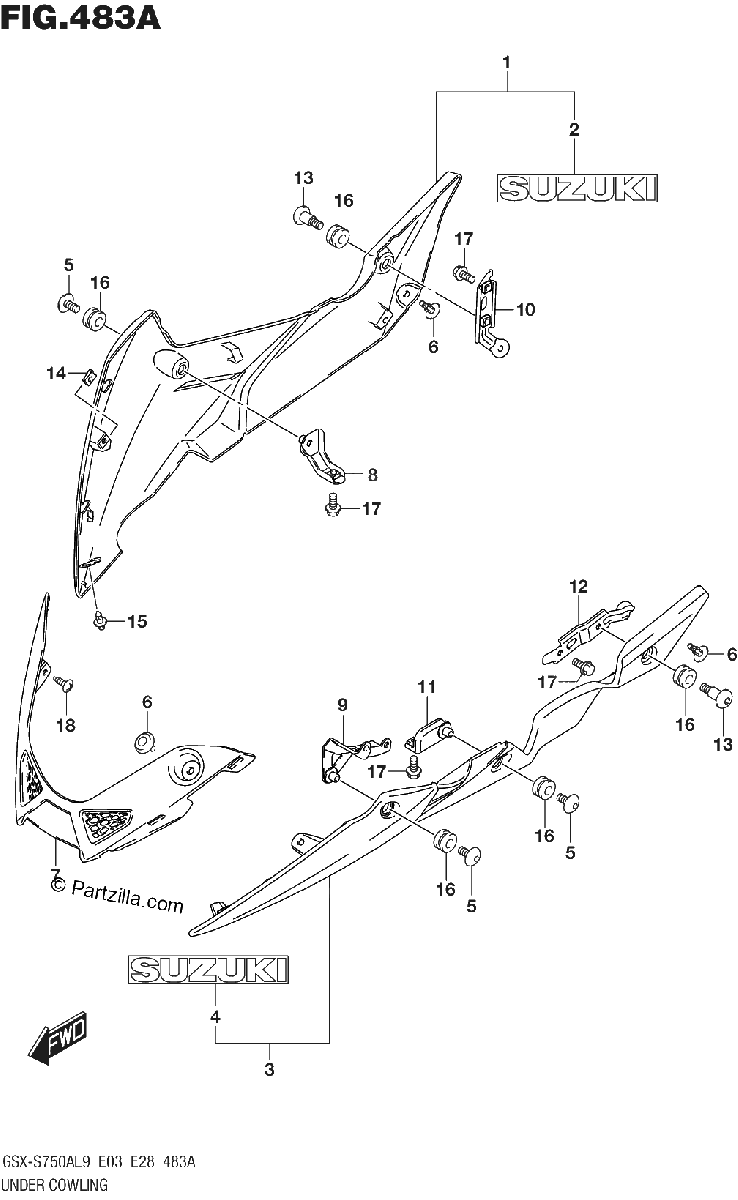

Diagrama de 483A UNDER COWLING GSX S750ZL9 E03

Repuestos

#1
94470-13K00-4TX
COWLING, UNDER RH (BLACK)
No Disponible
1
#2
68111-47C10-YSF
.EMBLEM, "SUZUKI" (BLUE)
$22.20¢11 098
1
#3
94480-13K00-4TX
COWLING, UNDER LH (BLACK)
No Disponible
1
#4
68111-47C10-YSF
.EMBLEM, "SUZUKI" (BLUE)
$22.20¢11 098
1
#5
09106-06136
BOLT
$6.04¢3 019
1
#6
94479-35F00
CLIP
$6.16¢3 082
1
#7
94491-13K00
COWLING, UNDER CENTER
$9.63¢4 813
1
#8
94510-13K01
BRACKET, UNDER COWL NO.1 RH
$14.18¢7 090
1
#9
94520-13K00
BRACKET, UNDER COWL NO.1 LH
$16.88¢8 441
1
#10
94530-08J00
BRACKET, UNDER COWL RR RH
$13.25¢6 624
1
#11
94530-13K00
BRACKET, UNDER COWL NO.2 LH
$13.25¢6 624
1
#12
94540-08J00
BRACKET, UNDER COWL RR LH
$13.25¢6 624
1
#13
09139-06190
BOLT (6X20)
$4.52¢2 260
1
#14
09148-05038
NUT
$2.36¢1 179
1
#15
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#16
09320-09016
CUSHION
$2.36¢1 179
1
#17
01550-0612A
BOLT
$2.36¢1 179
1
#18
03541-0516B
SCREW
$2.12¢1 058
1
