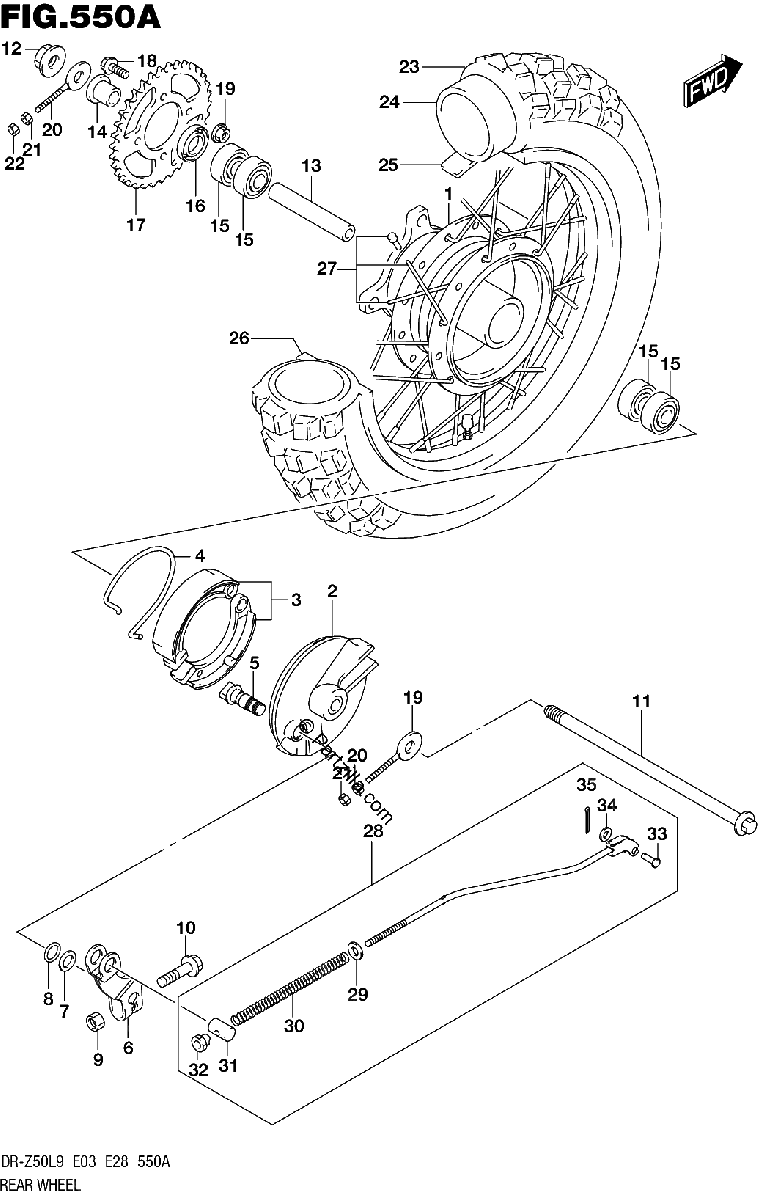

550A REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DRUM, REAR HUB
No Disponible
#2
PANEL, FRONT BRAKE ANCHOR
No Disponible
#3
SHOE SET, BRAKE
$38.73¢19 366
#4
SPRING
$15.79¢7 895
#5
SHAFT, BRAKE CAM
$38.85¢19 424
#6
LEVER, BRAKE CAM
$31.08¢15 542
#7
WASHER (10.5X18X1)
$2.47¢1 236
#8
O RING (D:2.4,ID:9.8)
$3.99¢1 995
#9
NUT
$2.20¢1 098
#10
BOLT
$2.48¢1 242
#11
AXLE, REAR
$69.09¢34 546
#12
NUT
$4.05¢2 024
#13
SPACER, HUB
$27.12¢13 558
#14
SPACER, REAR AXLE LH
$28.60¢14 300
#15
BEARING
$20.25¢10 126
#16
OIL SEAL (32X20X5)
$13.65¢6 825
#17
SPROCKET, REAR (34T-428)
$68.63¢34 316
#18
BOLT (8X28)
$4.45¢2 225
#19
NUT
$2.77¢1 386
#20
ADJUSTER, CHAIN
$16.25¢8 125
#21
NUT
$3.20¢1 598
#22
NUT
$2.20¢1 098
#23
TIRE, FRONT | IRC
$127.96¢63 980
#24
TUBE ASSY, WHEEL INNER
$44.62¢22 310
#25
PROTECTOR, INNER TUBE
$5.23¢2 616
#26
RIM, WHEEL (10X1.40)
$365.70¢182 850
#27
SPOKE SET, FRONT WHEEL
$138.94¢69 471
#28
ROD ASSY, REAR BRAKE
$41.54¢20 769
#29
WASHER
$2.20¢1 098
#30
.SPRING
$2.39¢1 196
#31
.PIN (11X18)
$2.52¢1 259
#32
.NUT
$3.36¢1 679
#33
.PIN (10X16)
$2.38¢1 190
#34
WASHER
$2.20¢1 098
#35
PIN, COTTER
$1.46¢730
