420D FUEL TANK GSX S1000FYAL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

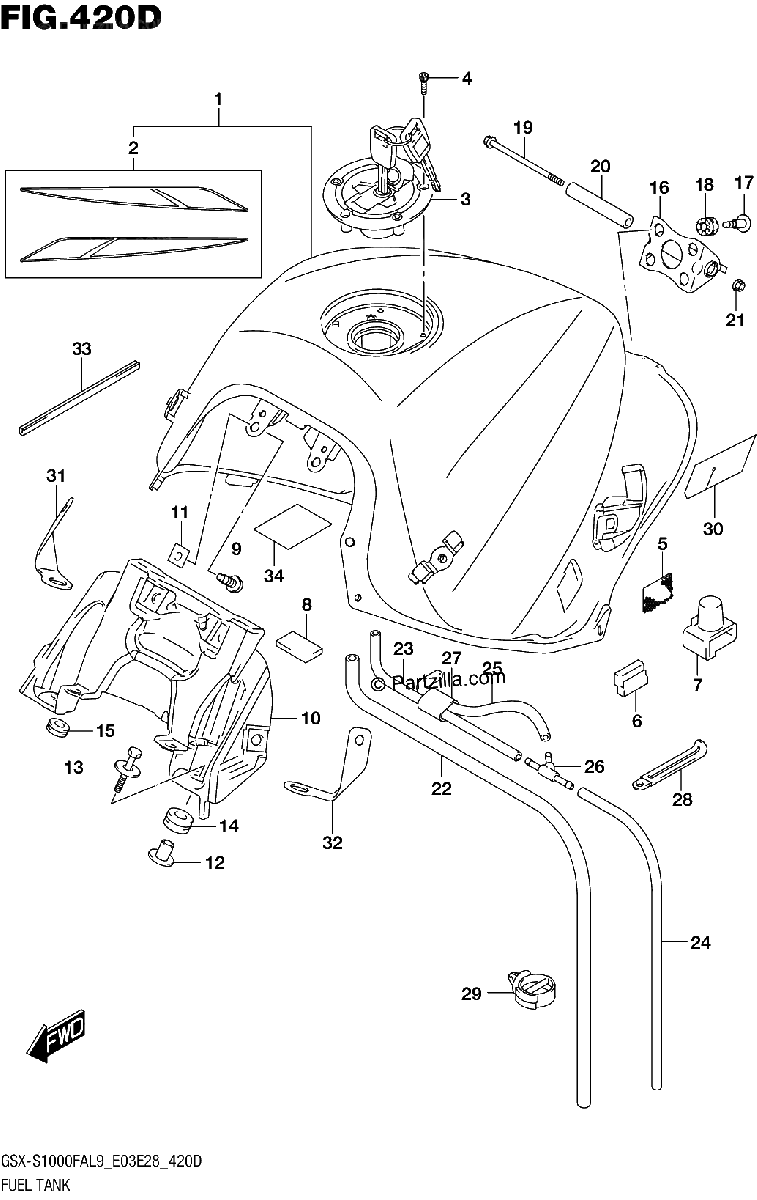

Diagrama de 420D FUEL TANK GSX S1000FYAL9 E03

Repuestos

#1
44100-04K60-YSF
TANK ASSY, FUEL (BLUE)
No Disponible
1
#2
68110-04K10-A3F
.TAPE SET, FUEL TANK
$77.38¢38 688
1
#3
44200-17820
CAP SET, FUEL TANK
$291.69¢145 844
1
#4
44244-11J00
BOLT
$4.90¢2 450
1
#5
44572-13G00
FASTENER
$13.19¢6 594
1
#6
44541-41G00
CUSHION, SIDE
$7.13¢3 563
1
#7
44542-04K00
CUSHION, REAR
$11.96¢5 981
1
#8
33652-21G10
CUSHION, FUEL TANK INNER
$3.65¢1 825
1
#9
44543-04K00
SCREW, BRACKET FRONT
No Disponible
1
#10
44521-04K00
BRACKET, FUEL TANK FRONT
$128.22¢64 113
1
#11
44523-47H00
NUT(M6)
$15.90¢7 950
1
#12
44512-04K00
SPACER, FUEL TANK FRONT
$9.54¢4 769
1
#13
09116-06172
BOLT (6X30)
$3.25¢1 625
1
#14
09320-10050
CUSHION
$4.00¢2 000
1
#15
09320-06504
CUSHION
$5.83¢2 913
1
#16
44530-04K00
BRACKET, FUEL TANK REAR
No Disponible
1
#17
09139-06203
SCREW, FUEL TANK REAR BRKT
No Disponible
1
#18
09320-08089
CUSHION
No Disponible
1
#19
09103-06060
BOLT (6X100)
$3.29¢1 644
1
#20
44561-18G00
SPACER, FUEL TANK REAR
$20.23¢10 113
1
#21
09159-06076
NUT
$3.65¢1 825
1
#22
44423-04K01
HOSE,FUEL TANK DRAIN NO.1
No Disponible
1
#23
44424-04K01
HOSE,FUEL TANK BRTHR NO.1
$14.03¢7 013
1
#24
09352-50005-530
HOSE,FUEL TANK BRTHR NO.2
No Disponible
1
#25
44424-15H11
HOSE,FUEL TANK BRTHR NO.3
$18.52¢9 263
1
#26
09367-06007
3 WAY
$4.14¢2 069
1
#27
09352-12164-010
HOSE,BRTHR CLAMP
No Disponible
1
#28
09404-06433
CLAMP (L:80)
$2.29¢1 144
1
#29
09403-20307
CLAMP
No Disponible
1
#30
44283-06J00
PROTECTOR
$8.25¢4 125
1
#31
44561-04K00
BRACKET, FUEL TANK FRONT, RH
$12.78¢6 388
1
#32
44571-04K00
BRACKET, FUEL TANK FRONT, LH
$12.78¢6 388
1
#33
44552-24B00
MOLDING, FUEL TANK
$17.27¢8 638
1
#34
44281-04K00
CUSHION, FUEL TANK
$7.28¢3 638
1
