420E FUEL TANK GSX S1000FYAL9 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

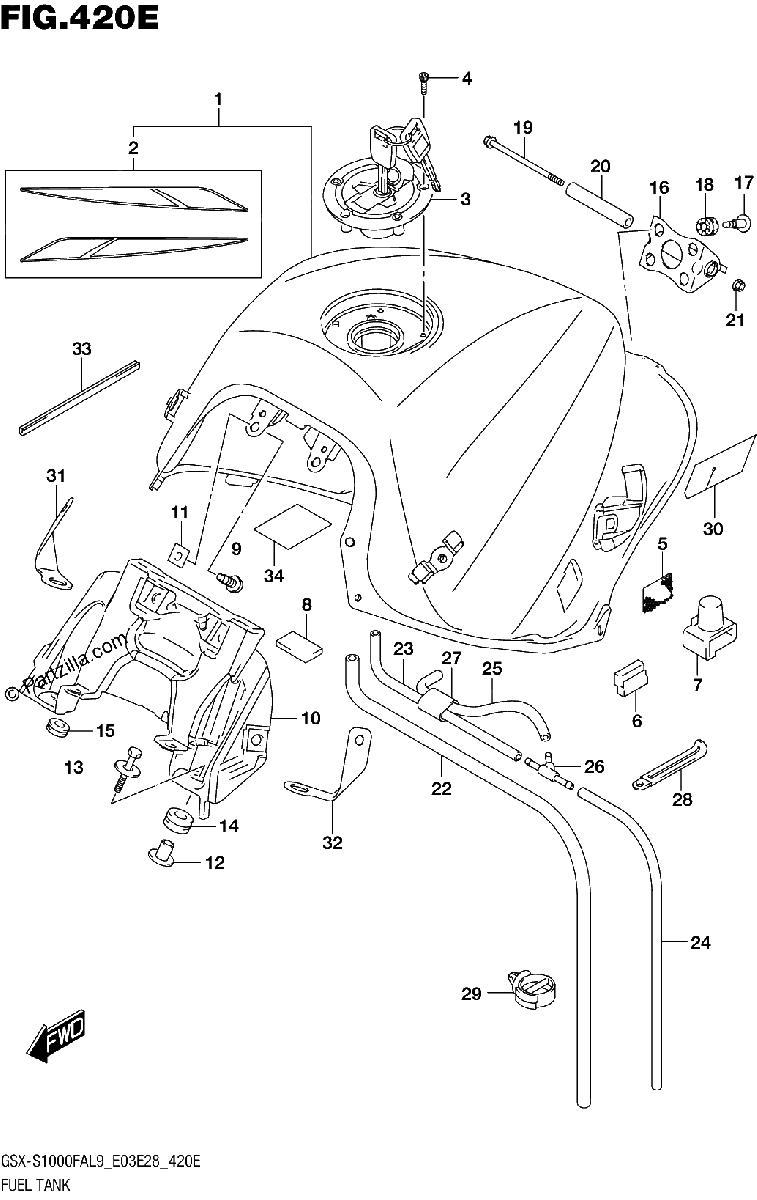

Diagrama de 420E FUEL TANK GSX S1000FYAL9 E28

Repuestos

#1
44100-04K60-YSF
TANK ASSY, FUEL (BLUE)
No Disponible
1
#2
68110-04K10-A3F
.TAPE SET, FUEL TANK
$71.18¢35 592
1
#3
44200-17820
CAP SET, FUEL TANK
$268.35¢134 176
1
#4
44244-11J00
BOLT
$4.51¢2 254
1
#5
44572-13G00
FASTENER
$12.13¢6 066
1
#6
44541-41G00
CUSHION, SIDE
$6.55¢3 278
1
#7
44542-04K00
CUSHION, REAR
$11.01¢5 503
1
#8
33652-21G10
CUSHION, FUEL TANK INNER
$3.36¢1 679
1
#9
44543-04K00
SCREW, BRACKET FRONT
No Disponible
1
#10
44521-04K00
BRACKET, FUEL TANK FRONT
$117.97¢58 983
1
#11
44523-47H00
NUT(M6)
$14.63¢7 314
1
#12
44512-04K00
SPACER, FUEL TANK FRONT
$8.77¢4 387
1
#13
09116-06172
BOLT (6X30)
$2.99¢1 495
1
#14
09320-10050
CUSHION
$3.68¢1 840
1
#15
09320-06504
CUSHION
$5.36¢2 680
1
#16
44530-04K00
BRACKET, FUEL TANK REAR
No Disponible
1
#17
09139-06203
SCREW, FUEL TANK REAR BRKT
No Disponible
1
#18
09320-08089
CUSHION
No Disponible
1
#19
09103-06060
BOLT (6X100)
$3.02¢1 512
1
#20
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#21
09159-06076
NUT
$3.36¢1 679
1
#22
44423-04K01
HOSE,FUEL TANK DRAIN NO.1
No Disponible
1
#23
44424-04K01
HOSE,FUEL TANK BRTHR NO.1
$12.90¢6 452
1
#24
09352-50005-530
HOSE,FUEL TANK BRTHR NO.2
No Disponible
1
#25
44424-15H11
HOSE,FUEL TANK BRTHR NO.3
$17.04¢8 522
1
#26
09367-06007
3 WAY
$3.81¢1 903
1
#27
09352-12164-010
HOSE,BRTHR CLAMP
No Disponible
1
#28
09404-06433
CLAMP (L:80)
$2.10¢1 052
1
#29
09403-20307
CLAMP
No Disponible
1
#30
44283-06J00
PROTECTOR
$7.59¢3 795
1
#31
44561-04K00
BRACKET, FUEL TANK FRONT, RH
$11.75¢5 877
1
#32
44571-04K00
BRACKET, FUEL TANK FRONT, LH
$11.75¢5 877
1
#33
44552-24B00
MOLDING, FUEL TANK
$15.89¢7 946
1
#34
44281-04K00
CUSHION, FUEL TANK
$6.69¢3 347
1
