201A CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

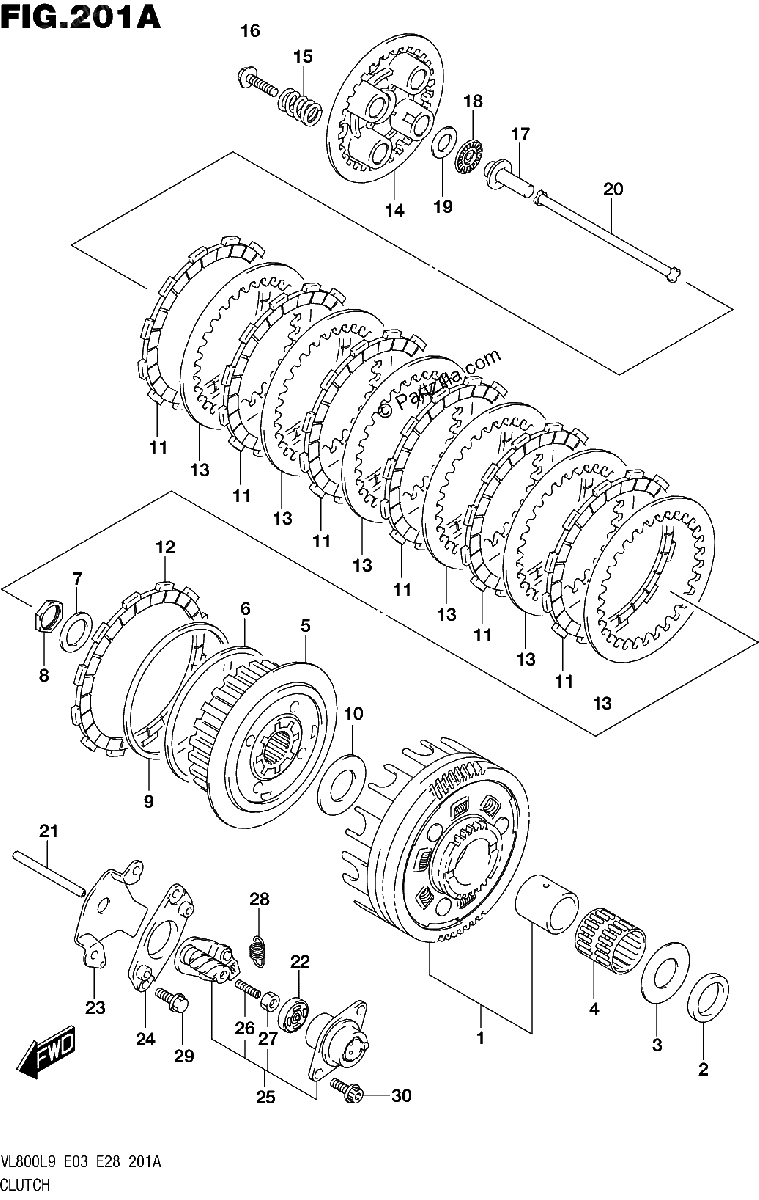

Diagrama de 201A CLUTCH

Repuestos

#1
21200-38840
GEAR, PRIMARY DRIVEN (NT:71)
$570.38¢285 189
1
#2
09180-25077
SPACER (25X38X6.5)
$16.35¢8 176
1
#3
09160-25055
WASHER (25X50X2.5)
$10.38¢5 192
1
#4
09263-35017
BEARING (35X40X35.8)
$44.48¢22 241
1
#5
21410-41F00
HUB, SLEEVE
$178.74¢89 372
1
#6
21471-37400
SEAT, WAVE WASHER
$10.73¢5 365
1
#7
09164-22007
WASHER
$8.88¢4 439
1
#8
09140-22008
NUT
$8.88¢4 439
1
#9
09164-00004
WASHER
$12.45¢6 227
1
#10
09160-25055
WASHER (25X50X2.5)
$10.38¢5 192
1
#11
21441-37400
PLATE, DRIVE NO.1 (T:3.0)
$19.88¢9 942
1
#12
21442-37401
PLATE, CLUTCH DRIVE NO.2
$20.48¢10 241
1
#13
21451-14A00
PLATE, DRIVEN (T:1.6)
$10.44¢5 221
1
#14
21462-27A00
DISC, PRESSURE
$71.62¢35 811
1
#15
21413-41F00
SPRING, CLUTCH
$5.26¢2 628
1
#16
09116-06203
BOLT (6X30)
$3.45¢1 725
1
#17
23121-31E00
PIECE, CLUTCH PUSH
$26.99¢13 495
1
#18
09263-15003
BEARING (15X28X2)
$8.97¢4 485
1
#19
09160-15045
WASHER (15.5X28X1)
$4.21¢2 105
1
#20
23110-27A00
ROD, CLUTCH
$23.79¢11 897
1
#21
23111-45C00
ROD, PUSH LH
$21.56¢10 781
1
#22
09283-06010
OIL SEAL (6X34X10.5)
$18.17¢9 085
1
#23
23117-45C00
RETAINER
No Disponible
1
#24
23130-45C00
BRACKET, RELEASE SCREW
$32.64¢16 318
1
#25
23200-41F00
SCREW ASSY, CLUTCH RELEASE
$119.20¢59 599
1
#26
09134-06010
.SCREW (6X25)
$3.37¢1 685
1
#27
08310-00067
NUT
$2.20¢1 098
1
#28
09443-09050
SPRING
$4.42¢2 208
1
#29
07120-0620A
BOLT
$3.28¢1 639
1
#30
07120-0616A
BOLT
$3.05¢1 524
1
