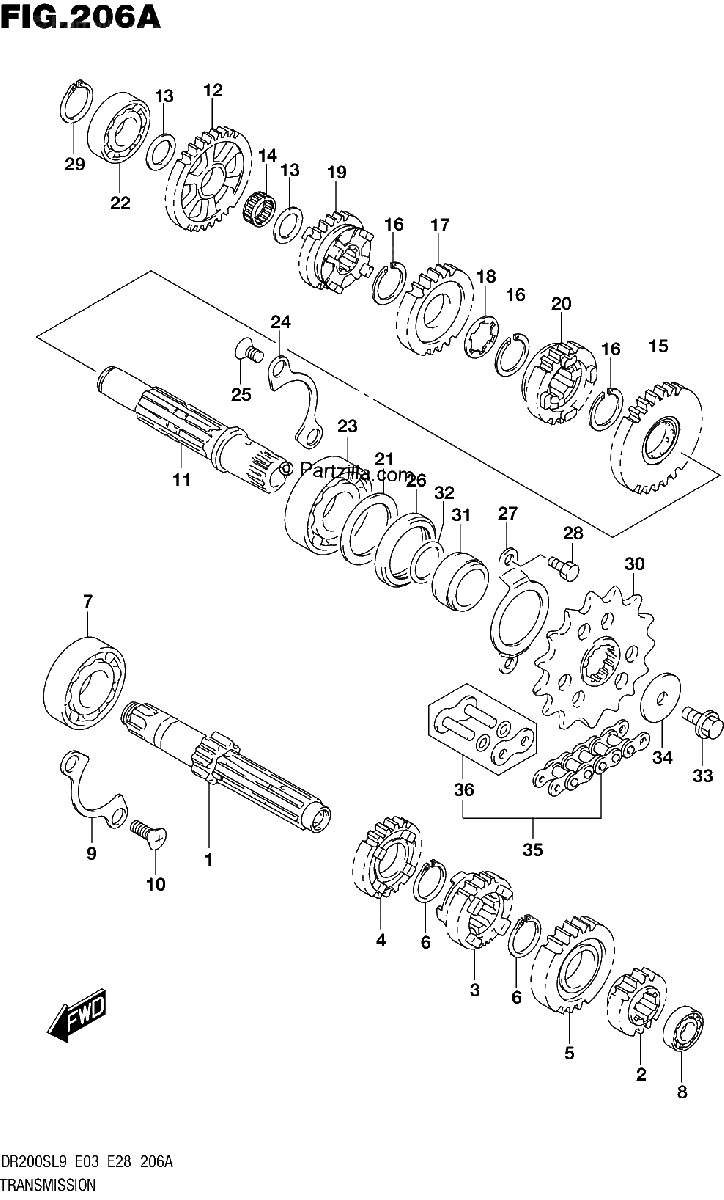

206A TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SHAFT, COUNTER (NT:11)
No Disponible
#2
GEAR, 2ND DRIVE (NT:15)
No Disponible
#3
GEAR, 3RD DRIVE (NT:16)
No Disponible
#4
GEAR, 4TH DRIVE (NT:21)
No Disponible
#5
GEAR, 5TH DRIVE (NT:23)
No Disponible
#6
CIRCLIP
$2.60¢1 300
#7
BEARING (20X47X14) | RH
$27.36¢13 681
#8
BEARING | LH
$30.56¢15 281
#9
RETAINER, DRIVE SHAFT BEARING
No Disponible
#10
SCREW (6X12)
$2.63¢1 313
#11
SHAFT, DRIVE
$116.86¢58 431
#12
GEAR, 1ST DRIVEN (NT:33)
$156.28¢78 138
#13
SHIM (17X26X1)
$3.65¢1 825
#14
BEARING (17X21X9.8)
$15.79¢7 894
#15
GEAR, 2ND DRIVEN (NT:29)
$129.90¢64 950
#16
CIRCLIP
$3.65¢1 825
#17
GEAR, 3RD DRIVEN (NT:23)
No Disponible
#18
LOCK WASHER
$3.85¢1 925
#19
GEAR, 4TH DRIVEN (NT:23)
No Disponible
#20
GEAR, 5TH DRIVEN (NT:21)
No Disponible
#21
WASHER, OIL SEALING
$5.88¢2 938
#22
BEARING (17X36X12) | RH
$56.46¢28 231
#23
BEARING (22X50X14) | RH
$33.60¢16 800
#24
RETAINER, DRIVE SHAFT BEARING
No Disponible
#25
SCREW (6X12)
$2.63¢1 313
#26
OIL SEAL (30X40X6)
$10.86¢5 431
#27
RETAINER, DRIVE SHAFT OIL SEA
$6.10¢3 050
#28
.BOLT
$2.94¢1 469
#29
CIRCLIP
$2.45¢1 225
#30
SPROCKET, ENGINE (NT:15)
$66.71¢33 356
#31
SPACER, ENGINE SPROCKET
$31.15¢15 575
#32
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
#33
BOLT | FRONT
$3.01¢1 506
#34
WASHER
$3.65¢1 825
#35
CHAIN ASSY, DRIVE (DID520VC5)
$317.88¢158 938
#36
.JOINT SET, CHAIN
$21.60¢10 800
