130C CARBURETOR DR200SL9 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

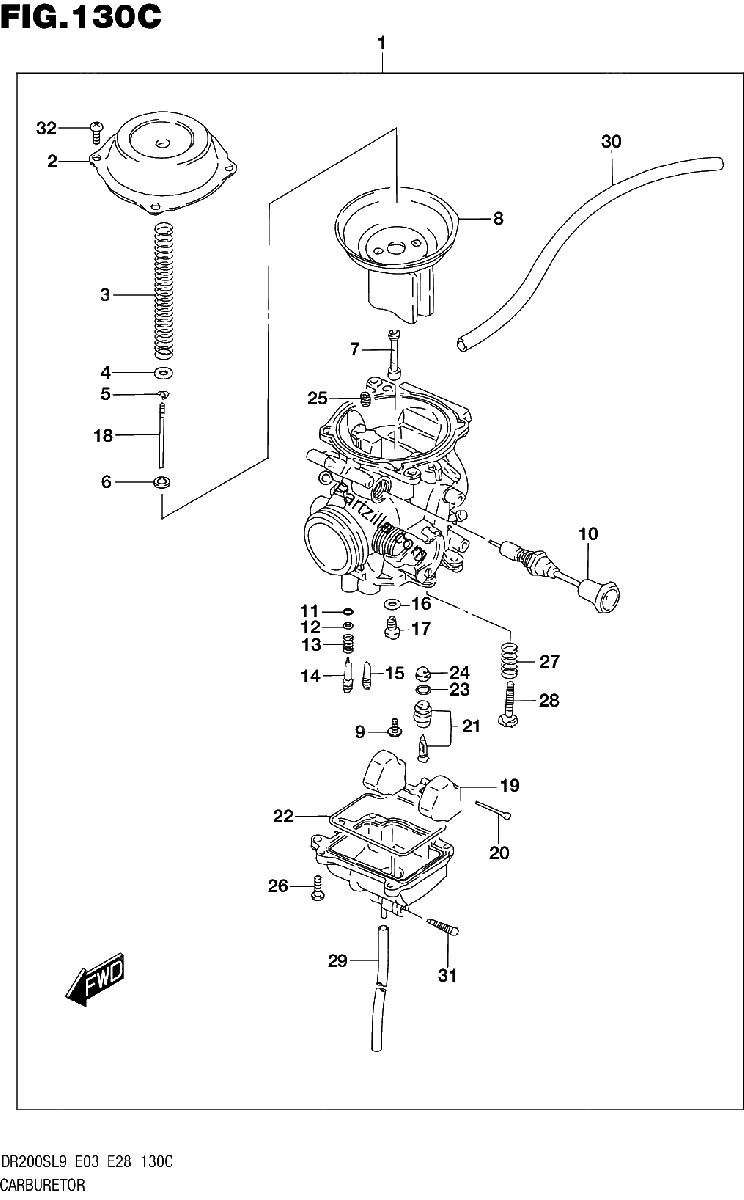

Diagrama de 130C CARBURETOR DR200SL9 E33

Repuestos

#1
13200-42AE2
CARBURETOR ASSY
$652.19¢326 094
1
#2
13502-42A00
.COVER
$51.94¢25 969
1
#3
13417-42A00
.SPRING
$8.32¢4 163
1
#4
13382-42A00
.RING
$5.34¢2 669
1
#5
13394-10010
.CLIP, NEEDLE
$5.69¢2 844
1
#6
13387-47010
.RING
$8.86¢4 431
1
#7
09494-00881
.JET, NEEDLE (P-5M)
$70.77¢35 387
1
#8
13500-42A00
.DIAPHRAGM ASSY
$228.47¢114 238
1
#9
13602-43410
.SCREW
$3.65¢1 825
1
#10
13411-42A20
.PLUNGER ASSY
$52.38¢26 188
1
#11
13295-29900
.O RING
$5.17¢2 588
1
#12
13291-29900
.WASHER
$2.34¢1 169
1
#13
13268-47070
.SPRING
$5.17¢2 588
1
#14
13279-47070
.SCREW, PILOT
$15.94¢7 969
1
#15
09492-35008
.JET, PILOT (35)
$11.13¢5 563
1
#16
13382-03110
.WASHER
$3.65¢1 825
1
#17
09491-25010
.JET, MAIN (125)
$14.46¢7 231
1
#18
13383-42AC0
.NEEDLE, JET (5D77-1)
$25.13¢12 563
1
#19
13250-42A00
.FLOAT
$40.65¢20 325
1
#20
13254-92311
.PIN, FLOAT
$2.88¢1 438
1
#21
13370-44500
.VALVE ASSY, NEEDLE
$60.79¢30 394
1
#22
13251-42A00
.O RING, FLOAT CHAMBER
$10.76¢5 381
1
#23
13374-35C00
.O RING, NEEDLE VALVE SEAT
$7.14¢3 569
1
#24
13376-65010
FILTER
$12.26¢6 131
1
#25
09493-27001
.JET, AIR (135)
$22.15¢11 075
1
#26
13602-05A40
SCREW
$1.63¢813
1
#27
13268-37420
.SPRING, THROTTLE SCREW
$7.16¢3 581
1
#28
13267-25D00
.ADJUSTER
$19.16¢9 581
1
#29
09355-30705-600
.HOSE (3X7X600) | L:600-400
$13.21¢6 606
1
#30
09352-50823-600
HOSE (5X8.2X600)
$11.83¢5 913
1
#31
13247-13A00
.SCREW, DRAIN
$3.56¢1 781
1
#32
02112-0408A
.SCREW
$1.42¢712
1
