541A REAR SWINGINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

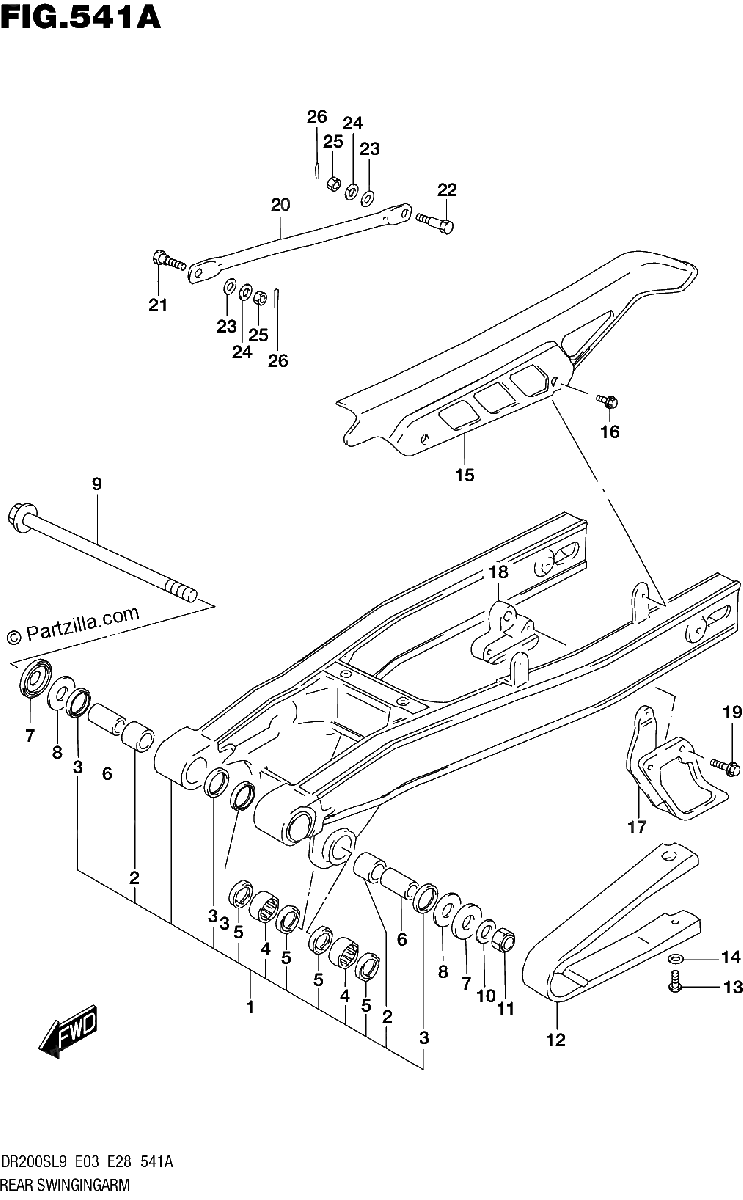

Diagrama de 541A REAR SWINGINGARM

Repuestos

#1
61100-42840
SWINGINGARM SET, REAR
$842.98¢421 492
1
#2
61261-13700
.BUSHING, PIVOT
$18.38¢9 189
1
#3
09283-20031
.OIL SEAL (20X27X5)
$5.67¢2 835
1
#4
09263-20053
.BEARING (20X27X25)
$32.83¢16 416
1
#5
62647-44A00
.SEAL, DUST
$9.14¢4 571
1
#6
61251-42A00
SPACER, PIVOT
$28.66¢14 329
1
#7
61262-40400
SEAL, DUST
$6.69¢3 347
1
#8
08211-14322
WASHER, THRUST
$4.48¢2 242
1
#9
61211-26B01
SHAFT, PIVOT
$49.79¢24 897
1
#10
09160-14057
WASHER (14.5X24X2.3)
$3.79¢1 897
1
#11
09159-14019
NUT
$12.74¢6 371
1
#12
61273-42A01
BUFFER, CHAIN TOUCH DEFENSE
$46.61¢23 305
1
#13
02142-0620A
SCREW
$1.66¢828
1
#14
09169-06037
WASHER
$2.96¢1 478
1
#15
61311-01A03
CASE, CHAIN
$71.52¢35 759
1
#16
09116-06096
BOLT (6X10)
$2.74¢1 368
1
#17
61341-13A10
GUIDE, CHAIN
$47.76¢23 880
1
#18
61345-42A00
RUBBER, CHAIN GUIDE
$15.55¢7 774
1
#19
01550-0620A
BOLT
$2.36¢1 179
1
#20
64311-42A00-13L
TORQUE LINK, REAR (SILVER)
$28.66¢14 329
1
#21
09111-08088
BOLT (8X28)
$7.50¢3 749
1
#22
09111-08013
BOLT (8X26.5)
$3.36¢1 679
1
#23
08322-0108B
WASHER
$2.84¢1 420
1
#24
09162-08008
WASHER (8.2X15.2X1.6)
$2.48¢1 242
1
#25
09140-08008
NUT
$1.74¢868
1
#26
04111-2020A
PIN, COTTER
$1.46¢730
1
