116A OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

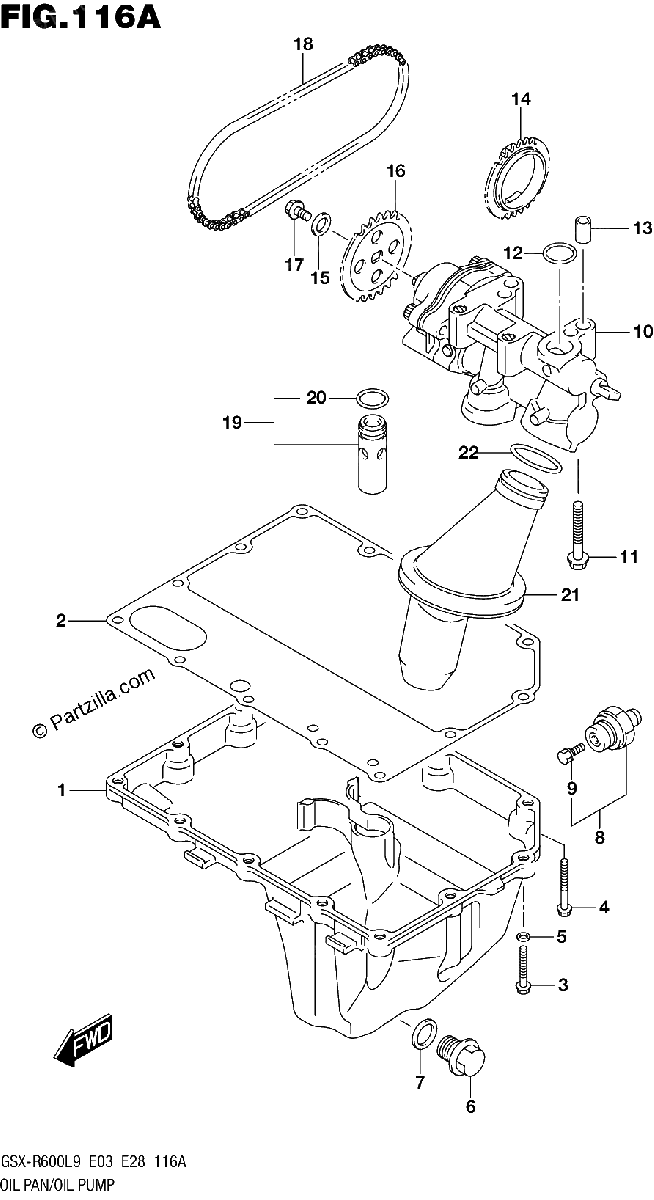

Diagrama de 116A OIL PAN OIL PUMP

Repuestos

#1
11511-01H00
PAN, OIL
$236.55¢118 277
1
#2
11489-01H01
.GASKET, OIL PAN | NOT ILLUSTRATED
$16.92¢8 458
1
#3
01547-0625A
BOLT
$2.42¢1 208
1
#4
09103-06204
BOLT (6X30)
$3.36¢1 679
1
#5
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#6
09247-14036
PLUG (14X20) | OIL DRAIN
$6.68¢3 341
1
#7
09168-14002
GASKET (13.8X18.8X4.8)
$3.16¢1 581
1
#8
37820-33D10
SWITCH ASSY, OIL PRESSURE
$30.34¢15 168
1
#9
37822-33D00
.BOLT
$5.40¢2 702
1
#10
16400-01H00
PUMP ASSY, ENG OIL
$241.12¢120 560
1
#11
01547-0635A
BOLT
$2.77¢1 386
1
#12
09280-15007
O RING (D:2.4,ID:15.8)
$2.05¢1 023
1
#13
04211-09149
PIN
$1.97¢983
1
#14
16321-01H00
SPROCKET, DRIVE (NT:27)
$95.48¢47 742
1
#15
09181-10158
SHIM (10X18X0.5)
$2.36¢1 179
1
#16
16331-01H00
SPROCKET, DRIVEN (NT:28)
$30.99¢15 496
1
#17
09103-06285
BOLT (6X12)
$2.36¢1 179
1
#18
16310-01H00
CHAIN, OIL PUMP DRIVE
$31.12¢15 559
1
#19
16440-24F00
VALVE ASSY, OIL RELIEF
$54.89¢27 445
1
#20
09280-13004
.O RING (D:1.9,ID:13)
$2.62¢1 311
1
#21
16520-01H01
STRAINER, ENGINE OIL NO.1
$32.63¢16 313
1
#22
09280-25004
O RING (D:2.4,ID:24.7)
$2.42¢1 208
1
