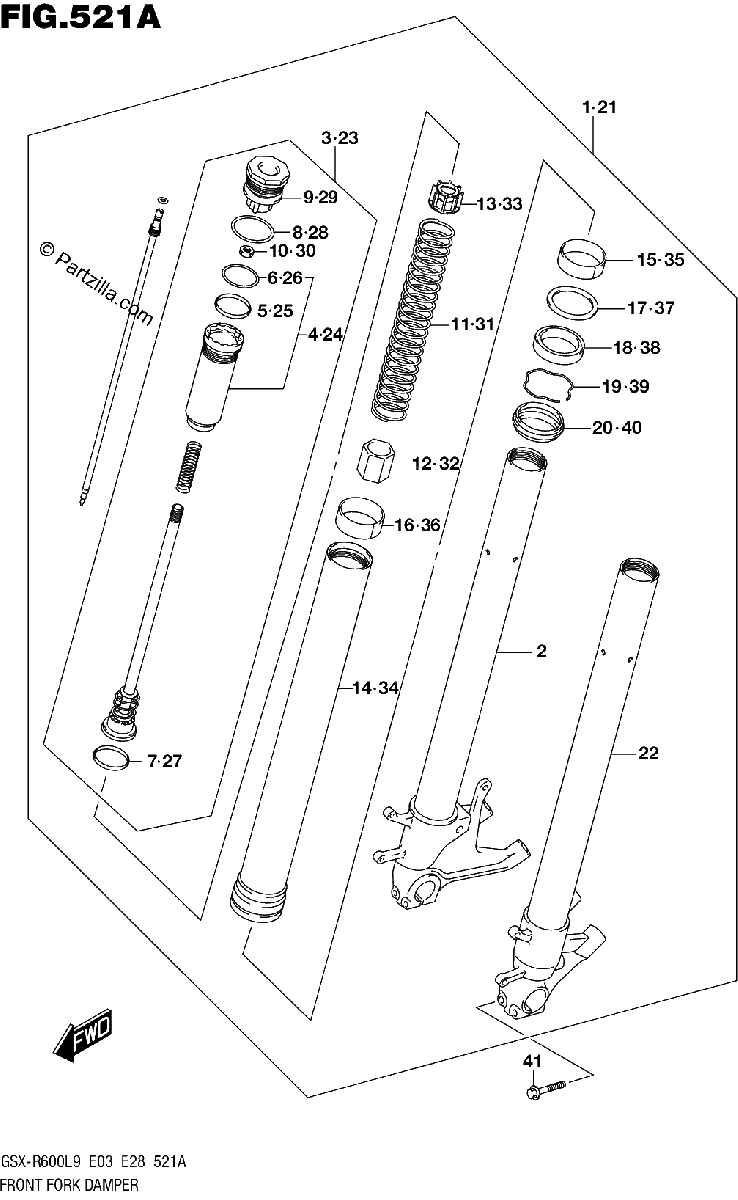

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$2871.44¢1 435 719
#2
.TUBE, INNER RH
$1164.31¢582 156
#3
.ROD, PISTON
No Disponible
#4
..CASE, ROD GUIDE
$205.15¢102 575
#5
...PISTON RING
$77.69¢38 844
#6
...O RING
$4.35¢2 175
#7
..RING, PISTON
$11.25¢5 625
#8
..O RING
$8.09¢4 044
#9
..BOLT
$250.29¢125 144
#10
..NUT
No Disponible
#11
.SPRING
No Disponible
#12
.COLLAR, SPRING
$33.65¢16 825
#13
.COLLAR, SPRING
$12.94¢6 469
#14
.TUBE, OUTER
$915.06¢457 531
#15
.BUSH, GUIDE
$21.75¢10 875
#16
.BUSH, SLIDE
$16.94¢8 469
#17
.SPACER, SEAL
$7.97¢3 988
#18
.OIL SEAL
$32.09¢16 044
#19
.RING
$8.61¢4 306
#20
.DUST SEAL
$13.89¢6 944
#21
DAMPER ASSY, FRONT FORK LH
$2871.44¢1 435 719
#22
.TUBE, INNER LH
$1186.28¢593 138
#23
.ROD, PISTON
No Disponible
#24
..CASE, ROD GUIDE
$205.15¢102 575
#25
...PISTON RING
$77.69¢38 844
#26
...O RING
$4.35¢2 175
#27
..RING, PISTON
$11.25¢5 625
#28
..O RING
$8.09¢4 044
#29
..BOLT
$250.29¢125 144
#30
..NUT
No Disponible
#31
.SPRING
No Disponible
#32
.COLLAR, SPRING
$33.65¢16 825
#33
.COLLAR, SPRING
$12.94¢6 469
#34
.TUBE, OUTER
$915.06¢457 531
#35
.BUSH, GUIDE
$21.75¢10 875
#36
.BUSH, SLIDE
$16.94¢8 469
#37
.SPACER, SEAL
$7.97¢3 988
#38
.OIL SEAL
$32.09¢16 044
#39
.RING
$8.61¢4 306
#40
.DUST SEAL
$13.89¢6 944
#41
BOLT
$7.09¢3 544
