480A AIR INTAKE PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

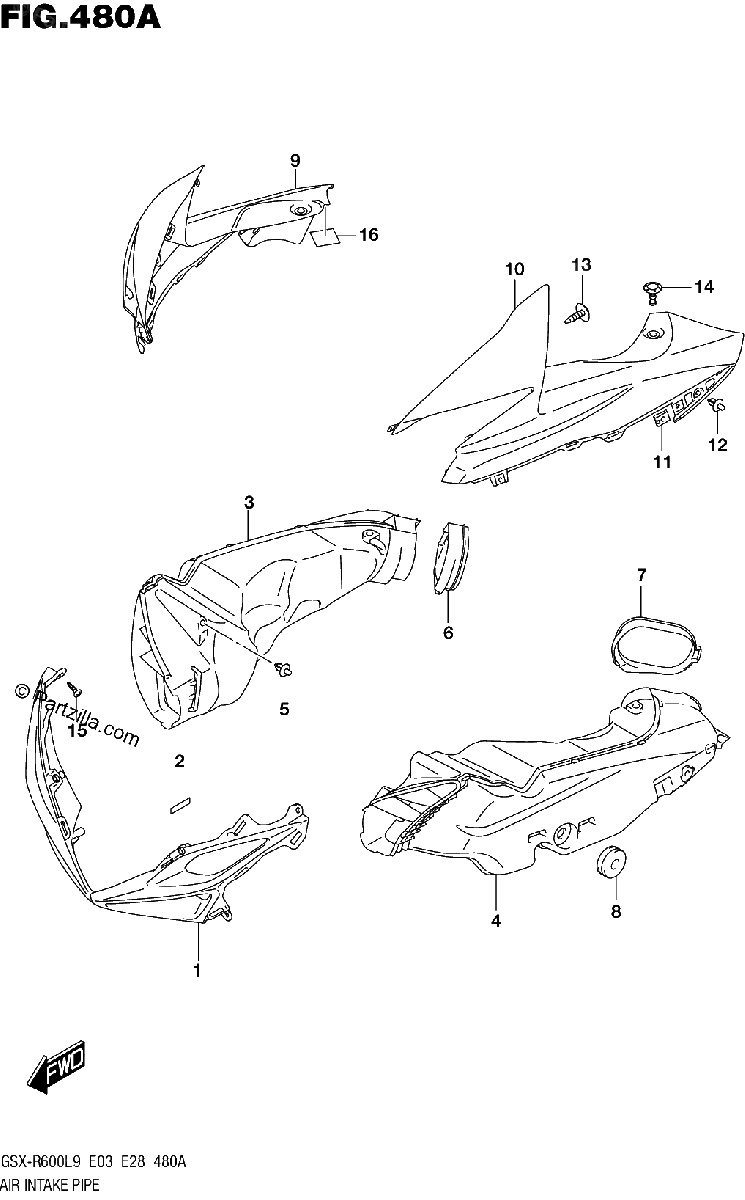

Diagrama de 480A AIR INTAKE PIPE

Repuestos

#2
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#3
94420-14J00
PIPE, INTAKE RH
$129.15¢64 575
1
#4
94430-14J00
PIPE, INTAKE LH
$100.68¢50 338
1
#5
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#6
94423-14J00
MOLDING, RH
$17.10¢8 550
1
#7
94433-14J00
MOLDING, LH
$17.10¢8 550
1
#8
09320-08028
CUSHION
$3.65¢1 825
1
#1-1
94671-14J10-YVB
COVER, INTAKE FRONT (BLACK) | FOR KGL
$213.82¢106 913
1
#11
09148-05052
NUT
$3.96¢1 981
1
#1-2
94671-14J10-YWW
COVER,INTAKE (WHITE) *{BODY COLOR:YWW}*
$164.81¢82 406
1
#12
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#13
09132-05050
SCREW (5X12)
$2.40¢1 200
1
#14
94479-35F00
CLIP
$6.70¢3 350
1
#15
03541-0512A
SCREW
$1.79¢894
1
#16
33652-13E00
PROTECTOR, FRONT
$3.65¢1 825
1
#9-1
94672-14J00-YVB
COVER, INTAKE SIDE RH (BLACK) | FOR YVB
$132.51¢66 256
1
#9-2
94672-14J00-YWW
COVER,INTAKE RH (WHITE) *{BODY COLOR:AGT}*
$171.59¢85 794
1
#10-1
94682-14J00-YVB
COVER, INTAKE SIDE LH (BLACK) | FOR YVB
$172.41¢86 206
1
#10-2
94682-14J00-YWW
COVER,INTAKE LH (WHITE) *{BODY COLOR:AGT}*
$174.09¢87 044
1
