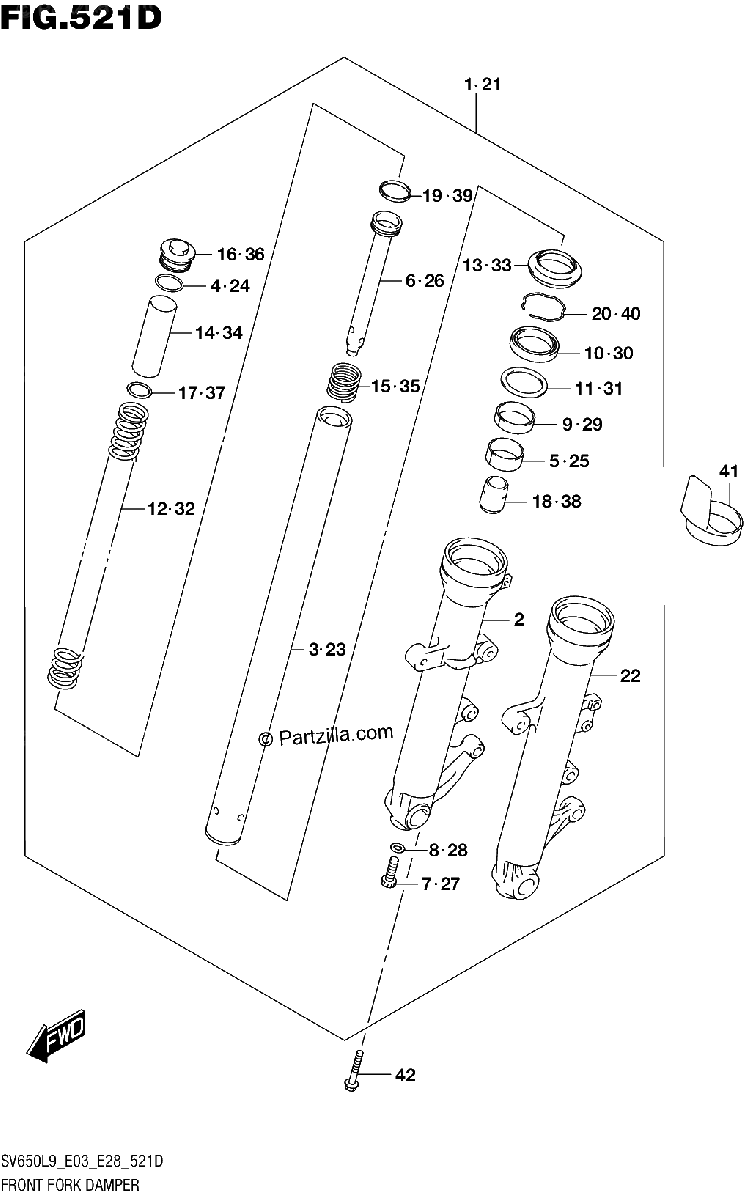

521D FRONT FORK DAMPER SV650AL9 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY,FR RH (BLACK)
$1080.10¢540 050
#2
.TUBE,OUTER RH (BLACK)
$540.91¢270 456
#3
.TUBE,INNER
$394.06¢197 031
#4
.O RING
$4.76¢2 381
#5
.BUSH, SLIDE
$30.79¢15 394
#6
.CYLINDER
No Disponible
#7
.BOLT
$8.09¢4 044
#8
.GASKET
$4.25¢2 125
#9
.BUSH, GUIDE
$21.75¢10 875
#10
.OIL SEAL
$32.09¢16 044
#11
.SPACER, SEAL
$7.97¢3 988
#12
.SPRING,FRONT
$39.75¢19 875
#13
.DUST SEAL
$13.89¢6 944
#14
.COLLAR,SPRING
$9.81¢4 906
#15
.SPRING, REBOUND
No Disponible
#16
.BOLT, FORK
$70.53¢35 263
#17
.JOINT, SPRING
$6.78¢3 388
#18
.PIECE, OIL LOCK
$40.79¢20 394
#19
.RING, PISTON
$11.38¢5 688
#20
.RING
$8.61¢4 306
#21
DAMPER ASSY,FR LH (BLACK)
$1080.10¢540 050
#22
.TUBE,OUTER LH (BLACK)
$561.54¢280 769
#23
.TUBE,INNER
$394.06¢197 031
#24
.O RING
$4.76¢2 381
#25
.BUSH, SLIDE
$30.79¢15 394
#26
.CYLINDER
No Disponible
#27
.BOLT
$8.09¢4 044
#28
.GASKET
$4.25¢2 125
#29
.BUSH, GUIDE
$21.75¢10 875
#30
.OIL SEAL
$32.09¢16 044
#31
.SPACER, SEAL
$7.97¢3 988
#32
.SPRING,FRONT
$39.75¢19 875
#33
.DUST SEAL
$13.89¢6 944
#34
.COLLAR,SPRING
$9.81¢4 906
#35
.SPRING, REBOUND
No Disponible
#36
.BOLT, FORK
$70.53¢35 263
#37
.JOINT, SPRING
$6.78¢3 388
#38
.PIECE, OIL LOCK
$40.79¢20 394
#39
.RING, PISTON
$11.38¢5 688
#40
.RING
$8.61¢4 306
#41
PROTECTOR
$25.69¢12 844
#42
BOLT
$6.00¢3 000
