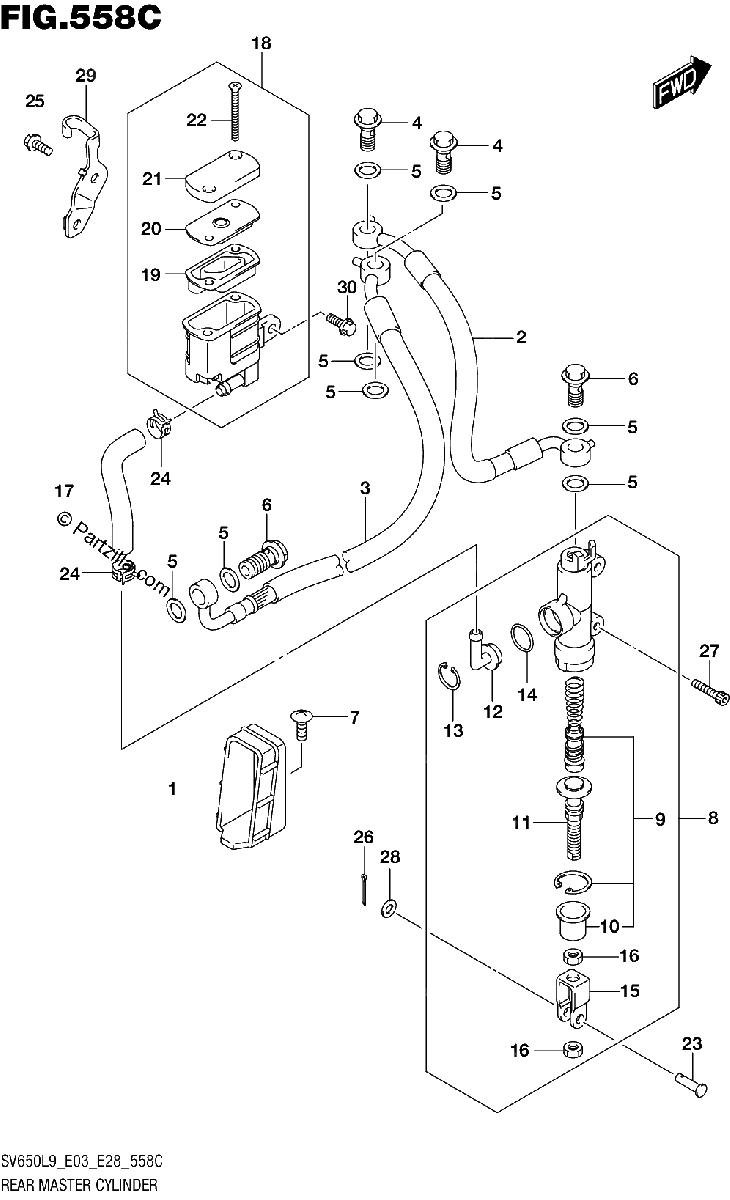

558C REAR MASTER CYLINDER SV650AL9 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GUIDE, REAR BRAKE HOSE
No Disponible
#2
HOSE ASSY, RR MASTER TO UNIT
$66.53¢33 263
#3
HOSE ASSY, RR UNIT TO CLPR
$70.38¢35 188
#4
UNION
$7.57¢3 787
#5
WASHER (10X15X1.5)
$2.39¢1 194
#6
UNION
$7.57¢3 787
#7
SCREW
$1.79¢894
#8
CYLINDER ASSY, REAR MASTER
No Disponible
#9
.PISTON/CUP SET
$31.70¢15 850
#10
..BOOT
$6.51¢3 256
#11
.ROD, PUSH
$33.08¢16 538
#12
.CONNECTOR
$8.36¢4 181
#13
.CIRCLIP
$4.86¢2 431
#14
.O RING
$3.65¢1 825
#15
.YOKE
$22.77¢11 388
#16
.NUT
$2.31¢1 156
#17
HOSE, REAR RESERVOIR TANK
No Disponible
#18
TANK ASSY, RESERVOIR
$33.50¢16 750
#19
.DIAPHRAGM
$8.50¢4 250
#20
.PLATE, DIAPHRAGM
$8.09¢4 044
#21
.CAP
$19.41¢9 706
#22
.SCREW
$6.00¢3 000
#23
PIN (6X18.2)
$4.84¢2 419
#24
CLIP
$3.09¢1 544
#25
BOLT (6X12) *{(E28,E33)}*
$1.94¢969
#26
COTTER PIN
$1.59¢794
#27
BOLT
$3.44¢1 719
#28
WASHER
$2.39¢1 194
#29
BRACKET, REAR RESERVOIR TANK
$18.40¢9 200
#30
BOLT,CONNECTOR (6X16)
$2.07¢1 037
