420A FUEL TANK VL1500BL9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

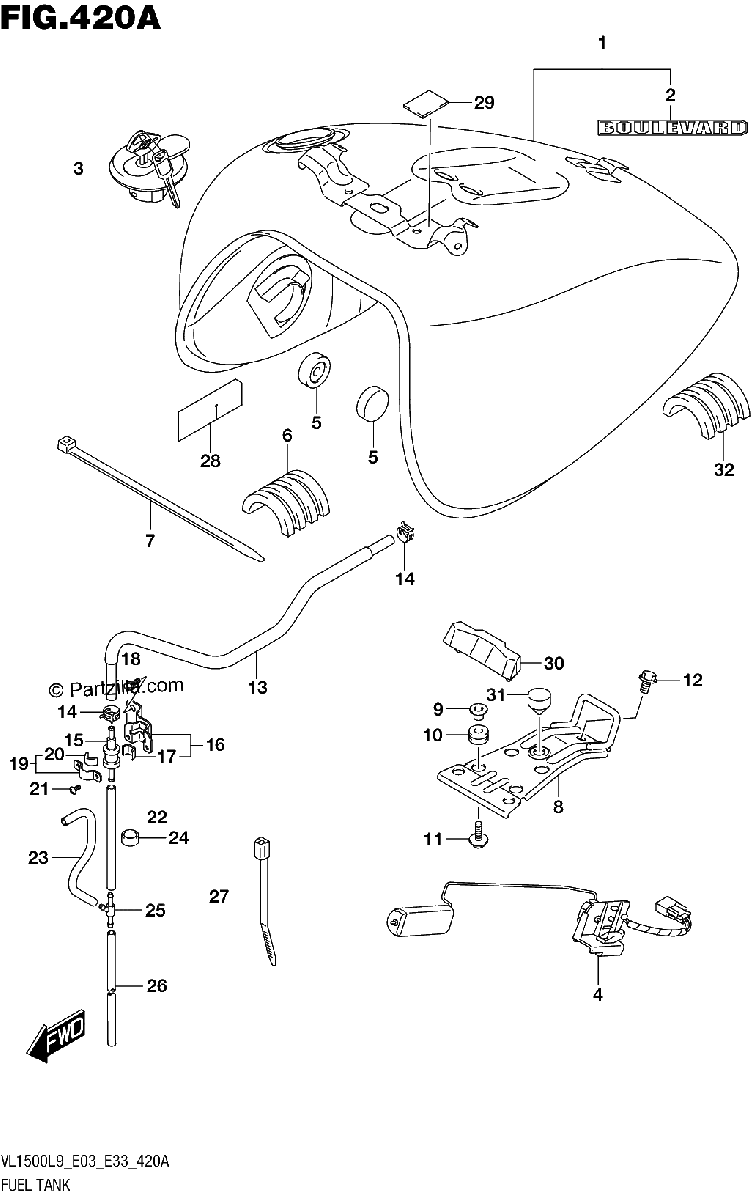

Diagrama de 420A FUEL TANK VL1500BL9 E03

Repuestos

#3
44200-41840
CAP SET, FUEL TANK
$137.28¢68 638
1
#4
34810-40H00
GUAGE ASSY, FUEL TANK
$121.35¢60 674
1
#5
09329-10007
CUSHION | FRONT
$2.29¢1 144
1
#6
44541-04F00
CUSHION, TANK SIDE
No Disponible
1
#7
09407-30402
CLAMP (L:300)
$4.51¢2 254
1
#8
44530-06J00
BRACKET, REAR
$46.86¢23 431
1
#9
09169-06062
WASHER
$2.99¢1 495
1
#10
09320-08001
CUSHION
$2.48¢1 242
1
#1-1
44100-06J90-YVB
TANK ASSY, FUEL (BLACK)
$1224.83¢612 415
1
#11
09116-06192
BOLT (6X20)
$2.83¢1 414
1
#1-2
44100-06J90-YWB
TANK ASSY, FUEL (GRAY)
$1298.32¢649 158
1
#12
01550-0812A
BOLT | FRONT
$2.77¢1 386
1
#13
44434-40H00
HOSE, TANK VALVE
No Disponible
1
#14
09401-11413
CLIP
$2.69¢1 346
1
#15
44240-38A00
VALVE, ROLL OVER
$75.96¢37 979
1
#16
44880-40H00
BRACKET, BREATHER VALVE
No Disponible
1
#17
44894-24A00
.CUSHION
$2.13¢1 064
1
#18
01547-0610A
BOLT
$1.63¢816
1
#19
44892-24A00
PLATE FUEL TANK BREATHER, NO.
$5.61¢2 806
1
#20
44894-24A00
.CUSHION
$2.13¢1 064
1
#2-1
68111-48G20-YHG
.EMBLEM, in.BOULEVARDin. (GRAY) | FOR BBD
$31.82¢15 910
1
#21
02142-0408A
SCREW
$1.87¢937
1
#2-2
68111-48G20-YWG
.EMBLEM,FUEL TANK "BOULEVARD" (BROWN)
$31.51¢15 755
1
#22
09352-50903-600
HOSE (5X9X600) | L:600-100
$8.10¢4 048
1
#23
44424-15H10
HOSE, BREATHER NO.3
$17.04¢8 522
1
#24
09352-13162-010
HOSE (13.5X16.5X10)
No Disponible
1
#25
09367-06007
3 WAY
$3.81¢1 903
1
#26
09352-50823-600
HOSE (5X8.2X600)
$10.88¢5 440
1
#27
09407-19401
CLAMP (L:190)
$3.68¢1 840
1
#28
44283-06J00
PROTECTOR
$7.59¢3 795
1
#29
63191-25C00
CUSHION, UPPER
$3.45¢1 725
1
#30
44545-06J00
CUSHION
No Disponible
1
#31
09321-10011
.CUSHION
$3.36¢1 679
1
#32
44541-06J00
CUSHION, TANK SIDE REAR
No Disponible
1
