462A HANDLEBAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

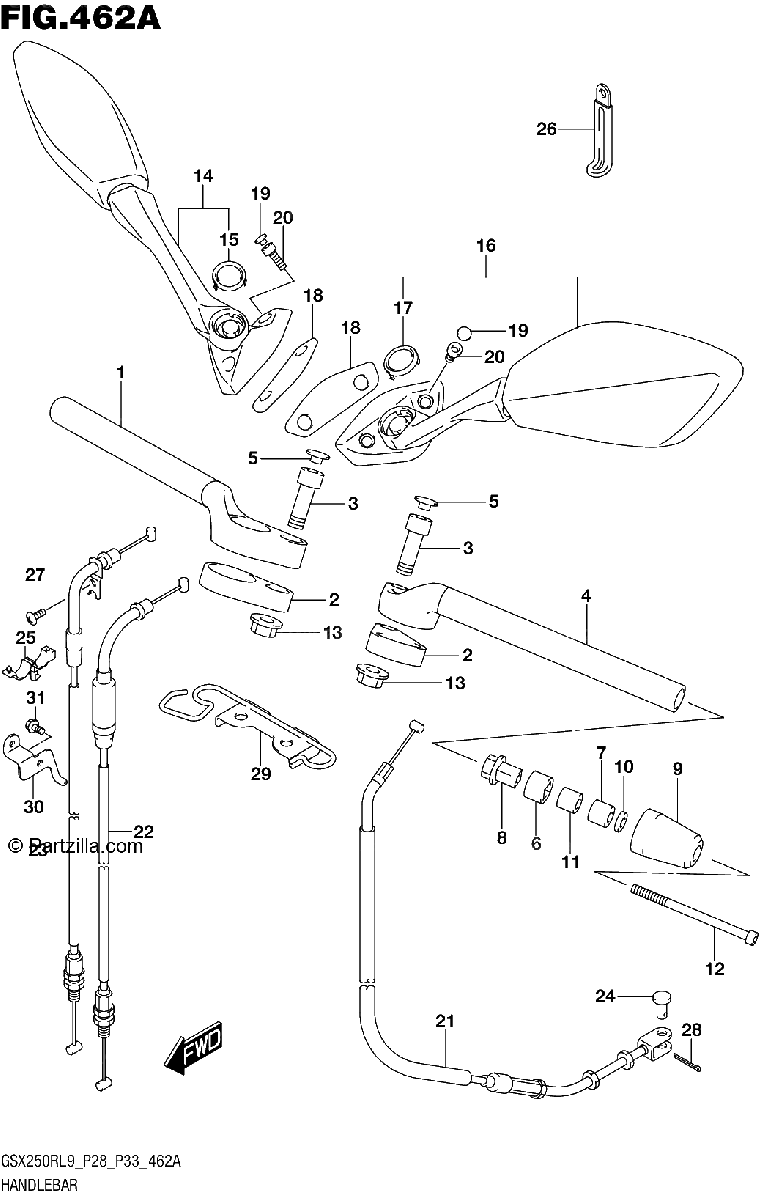

Diagrama de 462A HANDLEBAR

Repuestos

#1
56110-20K00
HANDLEBAR RH
$145.62¢72 812
1
#2
56115-20K00
SPACER, HANDLEBAR
$25.61¢12 805
1
#3
56123-20K00
BOLT, HANDLEBAR
$5.23¢2 616
1
#4
56150-20K00
HANDLEBAR LH
$150.56¢75 279
1
#5
56246-20K00
CAP, HANDLEBAR BOLT
$3.83¢1 915
1
#6
56272-10G00
.EXPANDER, INNER
$5.31¢2 657
1
#7
56272-42F00
.EXPANDER, HANDLE BALANCWR
$6.76¢3 381
1
#8
56273-10G10
.NUT
$9.50¢4 749
1
#9
56278-48H10
BALANCER, HANDLEBAR
$6.83¢3 415
1
#10
09160-06131
.WASHER (6.5X16X4)
$3.02¢1 512
1
#11
09180-06161
SPACER (6.5X16X15)
$7.90¢3 950
1
#12
07130-0695B
BOLT
$4.43¢2 214
1
#13
08319-3110A
NUT
$3.27¢1 633
1
#14
56500-20K20
MIRROR ASSY, REAR VIEW RH
$151.02¢75 509
1
#15
56517-20K20
.CAP
$5.92¢2 961
1
#16
56600-20K20
MIRROR ASSY, REAR VIEW LH
$151.02¢75 509
1
#17
56517-20K20
.CAP
$5.92¢2 961
1
#18
94576-20K00
CUSHION, REAR VIEW MIR
$3.36¢1 679
1
#19
09250-05009
CAP (OD:10)
$2.52¢1 259
1
#20
07130-0616B
BOLT
$2.85¢1 426
1
#21
58200-20K00
CABLE ASSY, CLUTCH
$53.05¢26 525
1
#22
58300-20K01
CABLE ASSY, THROTTLE NO.1
$43.84¢21 919
1
#23
58300-20K11
CABLE ASSY, THROTTLE NO.2
$40.05¢20 027
1
#24
09200-06071
PIN
$2.30¢1 150
1
#25
58623-20K00
CLAMP
$3.83¢1 915
1
#26
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#27
02142-0510B
SCREW
$2.12¢1 058
1
#28
04111-2015A
COTTER PIN
$1.46¢730
1
#29
37110-20K00
GUIDE, HANDLE SW LEAD
$8.85¢4 427
1
#30
58621-20K00
BRACKET, THROTTLE CABLE GUIDE
$5.92¢2 961
1
#31
01550-0616A
BOLT
$2.36¢1 179
1
