445B FRAME COVER SV650L9 E03 FOR AGT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

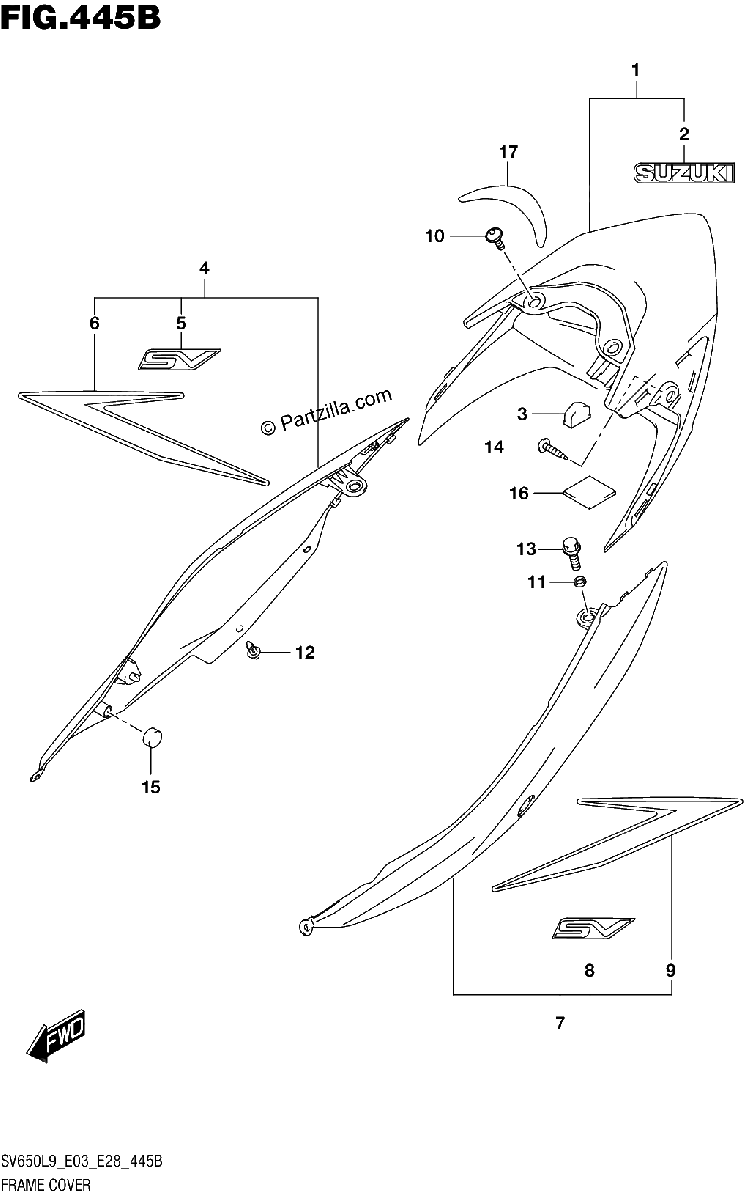

Diagrama de 445B FRAME COVER SV650L9 E03 FOR AGT

Repuestos

#1
47310-18K00-4TX
COVER, FRAME REAR CTR (BLACK)
$227.09¢113 545
1
#2
68171-28H10-KGL
.EMBLEM, "SUZUKI" (BLACK)
$10.20¢5 100
1
#3
47315-18K00
CUSHION, FRAME COVER CTR
$15.81¢7 906
1
#4
47410-18K30-YVB
COVER, FRAME REAR RH (BLACK)
$124.68¢62 342
1
#5
68111-18K00-YWW
.EMBLEM, "SV" (WHITE)
$18.57¢9 286
1
#6
68135-18K20-BBD
.TAPE, FRAME COVER RH (BLUE/BLACK)
$18.57¢9 286
1
#7
47510-18K30-YVB
COVER, FRAME REAR LH (BLACK)
$134.66¢67 333
1
#8
68111-18K00-YWW
.EMBLEM, "SV" (WHITE)
$18.57¢9 286
1
#9
68145-18K20-BBD
.TAPE, FRAME COVER LH (BLUE/BLACK)
$18.57¢9 286
1
#10
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#11
09180-08052
SPACER (8.5X12X2.5)
No Disponible
1
#12
09409-06314
CLIP
$3.31¢1 656
1
#13
01550-0812A
BOLT | FRONT
$2.77¢1 386
1
#14
03541-0510A
SCREW
$1.71¢857
1
#15
09329-14002
CUSHION
$3.28¢1 639
1
#16
33652-20C00
CUSHION (50X50X5)
$3.36¢1 679
1
#17
47312-18K00
TAPE, FRAME COVER REAR CENTER
$14.32¢7 159
1
