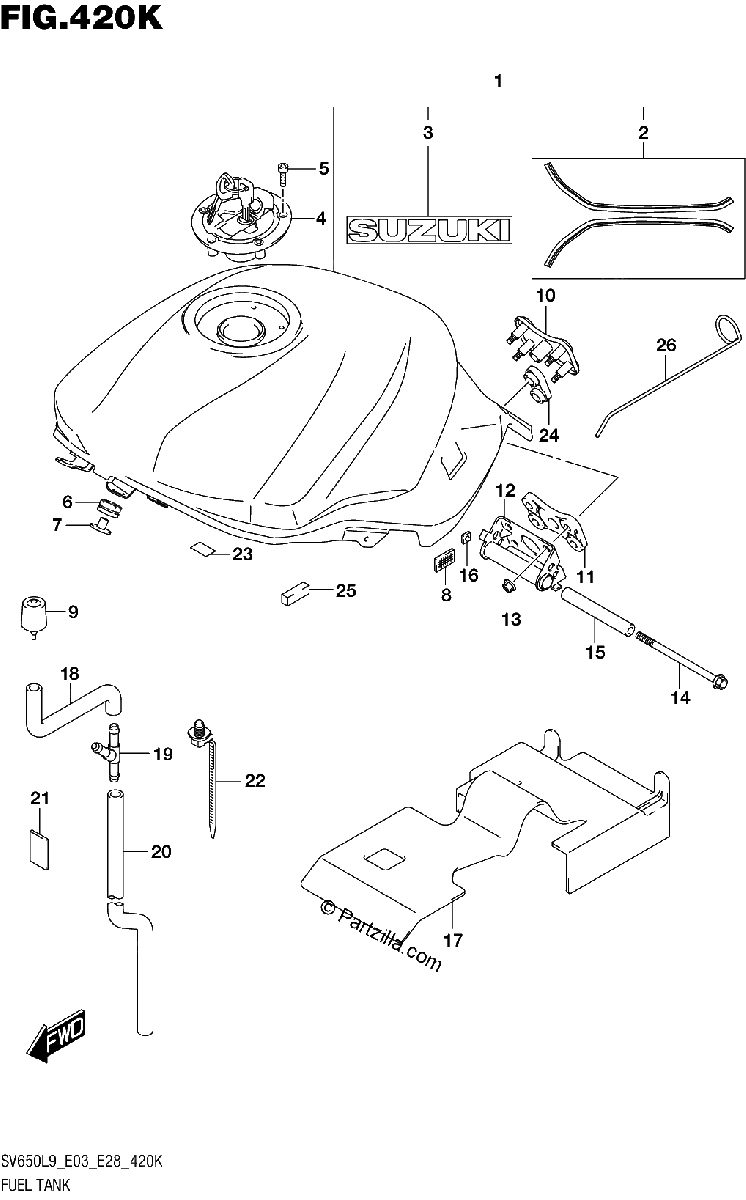

420K FUEL TANK SV650XAL9 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TANK ASSY, FUEL (BLACK/WHITE)
$1325.48¢662 738
#2
.TAPE SET, FUEL TANK
No Disponible
#3
.EMBLEM, "SUZUKI" (WHITE)
$22.48¢11 238
#4
CAP SET, FUEL TANK
$291.69¢145 844
#5
BOLT
$4.90¢2 450
#6
CUSHION, FUEL TANK FRONT
$8.73¢4 363
#7
SPACER, FUEL TANK FRONT
$9.54¢4 769
#8
FASTENER
$13.19¢6 594
#9
CUSHION, FUEL TANK SIDE
$9.46¢4 731
#10
BRACKET, REAR UPPER
No Disponible
#11
CUSHION, FUEL TANK REAR LOWER
$24.22¢12 112
#12
BRACKET, FUEL TANK REAR
No Disponible
#13
.NUT
$2.63¢1 313
#14
BOLT (6X100)
$3.29¢1 644
#15
SPACER
$17.01¢8 506
#16
NUT
No Disponible
#17
SHEET, HEAT SHIELD RUBBER
$77.29¢38 644
#18
HOSE,FUEL TANK DRAIN NO.1
$13.00¢6 500
#19
3 WAY
No Disponible
#20
HOSE,FUEL TANK DRAIN NO.2
$31.38¢15 688
#21
SHIELD, DRAIN HOSE HEAT
$23.21¢11 606
#22
CLAMP (L:154)
$6.03¢3 013
#23
TAPE, WIRING HARNESS
$4.10¢2 050
#24
CUSHION, FUEL TANK REAR UPPER
No Disponible
#25
CUSHION, FUEL TANK COVER
No Disponible
#26
STAY, FUEL TANK *{OPT}*
$60.69¢30 344
