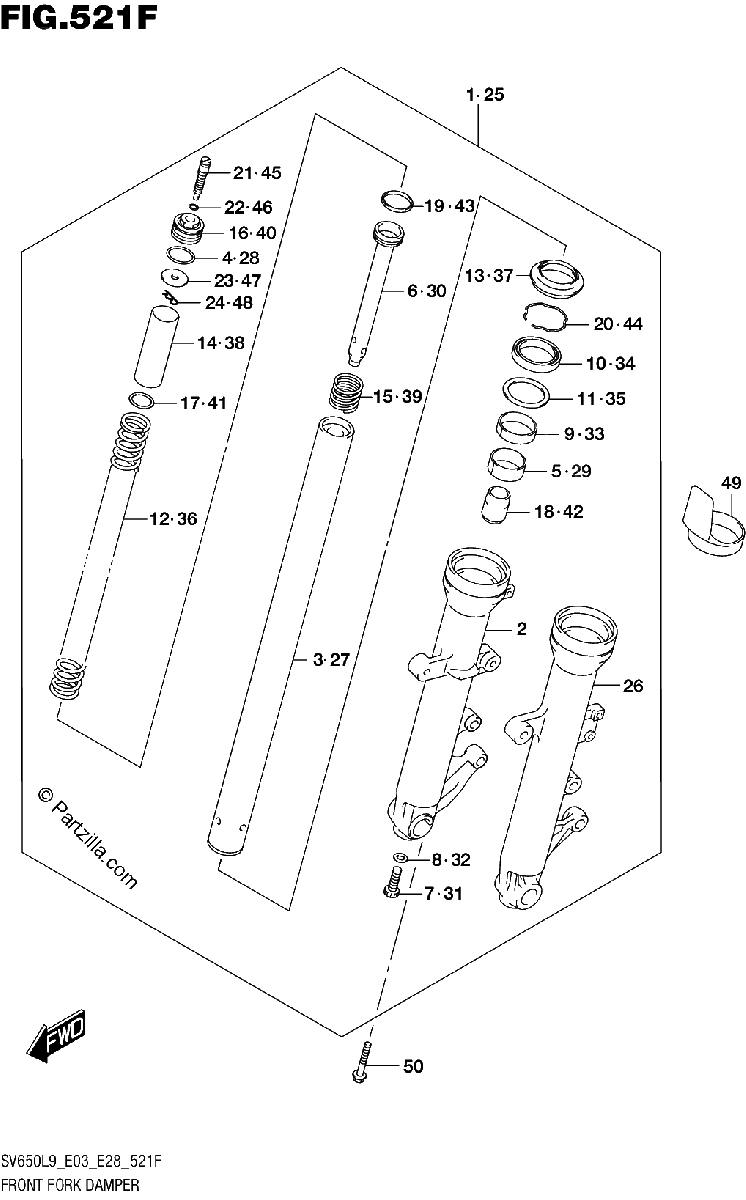

521F FRONT FORK DAMPER SV650XAL9 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY,FR RH (BLACK)
$993.69¢496 846
#2
.TUBE,OUTER RH (BLACK)
$497.64¢248 820
#3
.TUBE,INNER
$362.54¢181 269
#4
.O RING
$4.38¢2 191
#5
.BUSH, SLIDE
$28.32¢14 162
#6
.CYLINDER
$107.18¢53 590
#7
.BOLT
$7.44¢3 720
#8
.GASKET
$3.91¢1 955
#9
.BUSH, GUIDE
$20.01¢10 005
#10
.OIL SEAL
$29.52¢14 760
#11
.SPACER, SEAL
$7.34¢3 669
#12
.SPRING,FRONT
$36.57¢18 285
#13
.DUST SEAL
$12.78¢6 388
#14
.COLLAR,SPRING
$9.03¢4 514
#15
.SPRING, REBOUND
No Disponible
#16
.BOLT,FORK
No Disponible
#17
.JOINT, SPRING
$6.23¢3 117
#18
.PIECE, OIL LOCK
$37.52¢18 762
#19
.RING, PISTON
$10.46¢5 232
#20
.RING
$7.92¢3 962
#21
.ADJUSTER BOLT,SPRING
No Disponible
#22
.O RING,STOPPER
No Disponible
#23
.SEAT, SPRING
$9.37¢4 686
#24
.PIN, SEAT SPRING
No Disponible
#25
DAMPER ASSY,FR LH (BLACK)
$993.69¢496 846
#26
.TUBE,OUTER LH (BLACK)
$516.61¢258 307
#27
.TUBE,INNER
$362.54¢181 269
#28
.O RING
$4.38¢2 191
#29
.BUSH, SLIDE
$28.32¢14 162
#30
.CYLINDER
$107.18¢53 590
#31
.BOLT
$7.44¢3 720
#32
.GASKET
$3.91¢1 955
#33
.BUSH, GUIDE
$20.01¢10 005
#34
.OIL SEAL
$29.52¢14 760
#35
.SPACER, SEAL
$7.34¢3 669
#36
.SPRING,FRONT
$36.57¢18 285
#37
.DUST SEAL
$12.78¢6 388
#38
.COLLAR,SPRING
$9.03¢4 514
#39
.SPRING, REBOUND
No Disponible
#40
.BOLT,FORK
No Disponible
#41
.JOINT, SPRING
$6.23¢3 117
#42
.PIECE, OIL LOCK
$37.52¢18 762
#43
.RING, PISTON
$10.46¢5 232
#44
.RING
$7.92¢3 962
#45
.ADJUSTER BOLT,SPRING
No Disponible
#46
.O RING,STOPPER
No Disponible
#47
.SEAT, SPRING
$9.37¢4 686
#48
.PIN, SEAT SPRING
No Disponible
#49
PROTECTOR
$23.63¢11 816
#50
BOLT
$5.52¢2 760
