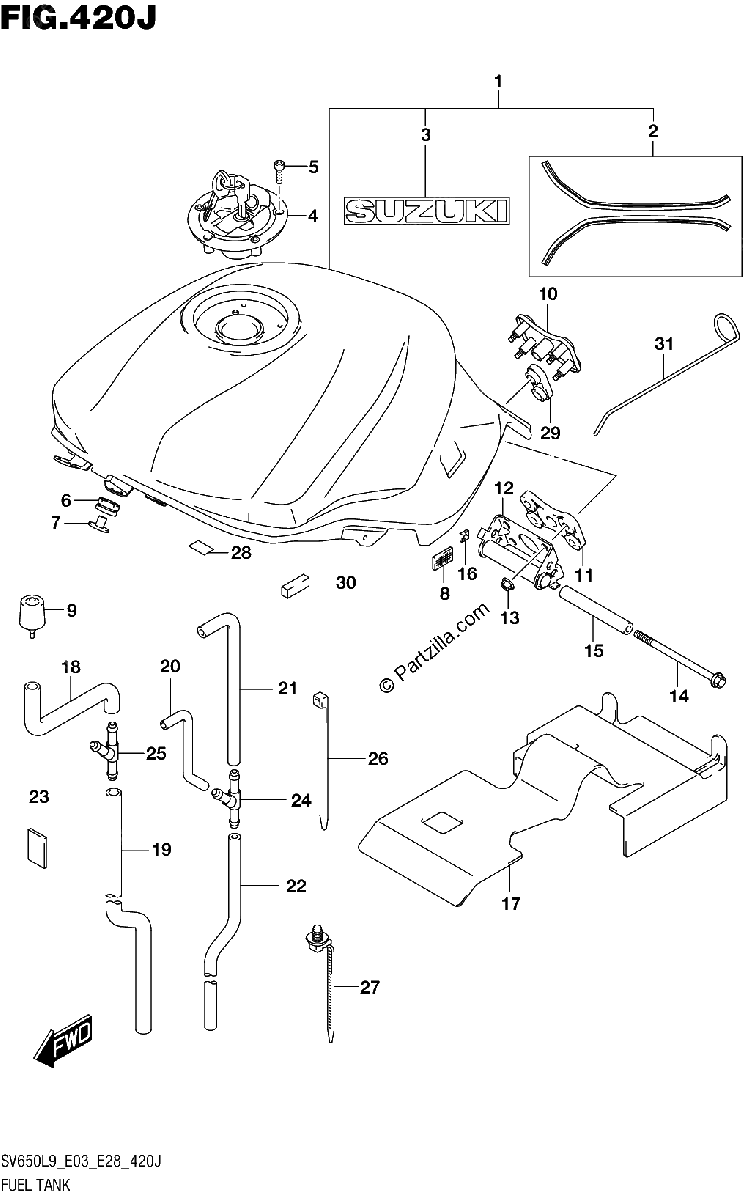

420J FUEL TANK SV650XAL9 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
TANK ASSY, FUEL (BLACK/WHITE)
$1219.44¢609 719
#2
.TAPE SET, FUEL TANK
No Disponible
#3
.EMBLEM, "SUZUKI" (WHITE)
$20.68¢10 339
#4
CAP SET, FUEL TANK
$268.35¢134 176
#5
BOLT
$4.51¢2 254
#6
CUSHION, FUEL TANK FRONT
$8.03¢4 013
#7
SPACER, FUEL TANK FRONT
$8.77¢4 387
#8
FASTENER
$12.13¢6 066
#9
CUSHION, FUEL TANK SIDE
$8.71¢4 353
#10
BRACKET, REAR UPPER
No Disponible
#11
CUSHION, FUEL TANK REAR LOWER
$22.29¢11 143
#12
BRACKET, FUEL TANK REAR
No Disponible
#13
.NUT
$2.42¢1 208
#14
BOLT (6X100)
$3.02¢1 512
#15
SPACER
$15.65¢7 826
#16
NUT
No Disponible
#17
SHEET, HEAT SHIELD RUBBER
$71.10¢35 552
#18
HOSE,FUEL TANK DRAIN NO.1
$11.96¢5 980
#19
HOSE,FUEL TANK DRAIN NO.2
$28.86¢14 433
#20
HOSE,FUEL TANK BRTHR NO.3
$17.04¢8 522
#21
HOSE,FUEL TANK BRTHR NO.1
$11.96¢5 980
#22
HOSE,FUEL TANK BRTHR NO.2
$29.47¢14 737
#23
SHIELD, DRAIN HOSE HEAT
No Disponible
#24
3 WAY
$3.81¢1 903
#25
3 WAY
No Disponible
#26
CLAMP (L:145)
$3.36¢1 679
#27
CLAMP (L:154)
$5.54¢2 772
#28
TAPE, WIRING HARNESS
$3.77¢1 886
#29
CUSHION, FUEL TANK REAR UPPER
No Disponible
#30
CUSHION, FUEL TANK COVER
No Disponible
#31
STAY, FUEL TANK *{OPT}*
$55.83¢27 916
