OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

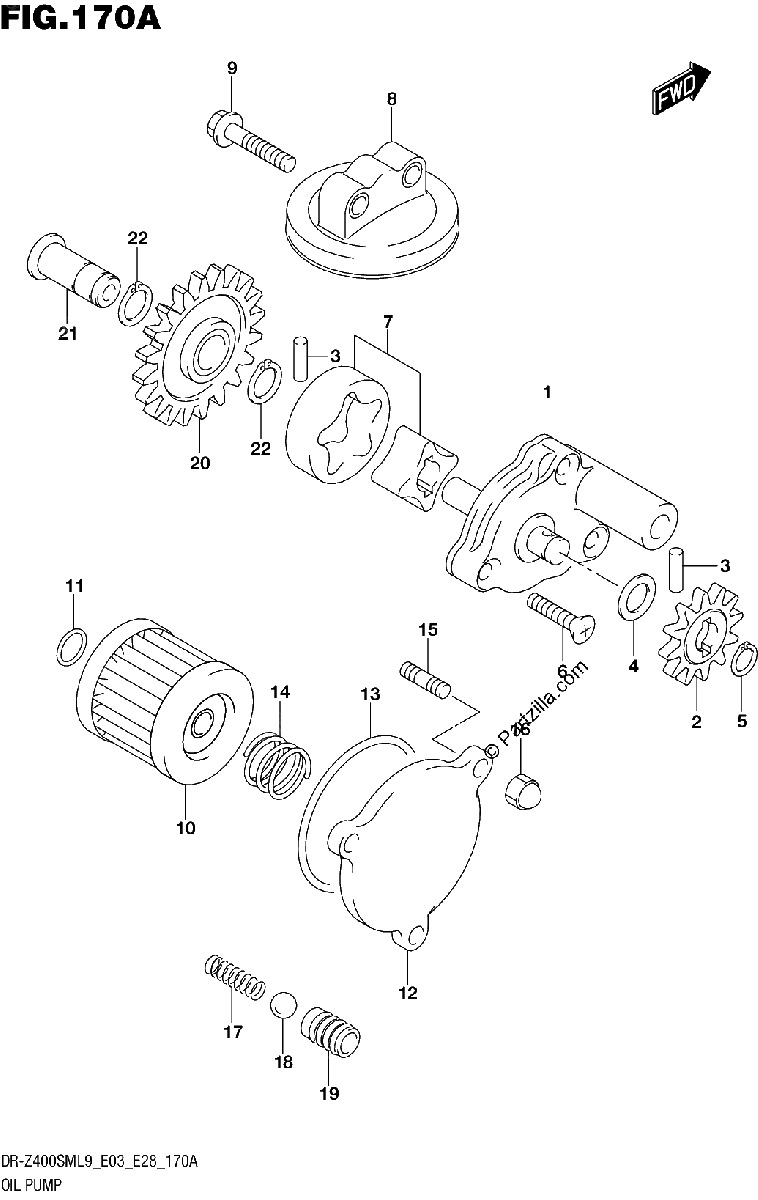

Diagrama de OIL PUMP

Repuestos

#1
16400-29F00
PUMP ASSY, ENGINE OIL NO.1
$171.57¢85 784
1
#2
16331-29F01
GEAR, OIL PUMP DRIVEN (NT:12)
$49.60¢24 800
1
#3
09261-04009
PIN (4X15.8)
$1.79¢897
1
#4
09181-10158
SHIM (10X18X0.5)
$2.36¢1 179
1
#5
08331-31109
CIRCLIP
$2.12¢1 058
1
#6
02122-0625A
SCREW
$1.78¢891
1
#7
16410-29F00
ROTOR SET, OIL PUMP NO.2
$48.46¢24 231
1
#8
16520-29F01
STRAINER, OIL PUMP NO.2
$27.12¢13 558
1
#9
01550-0625A
SCREW
$2.36¢1 179
1
#10
16510-29F00
FILTER, ENGINE OIL
$8.16¢4 082
1
#11
09280-13004
.O RING (D:1.9,ID:13)
$2.62¢1 311
1
#12
16512-47E00
CAP, OIL FILTER
$48.44¢24 219
1
#13
09280-54001
.O RING (D:2.4, ID:52.6) | NOT ILLUSTRATED
$4.05¢2 024
1
#14
09440-18002
SPRING
$1.31¢655
1
#15
09108-06123
STUD BOLT
$3.40¢1 702
1
#16
08313-1006A
NUT
$2.20¢1 098
1
#17
09440-07073
SPRING
$4.94¢2 472
1
#18
06111-12004
BALL
$2.33¢1 167
1
#19
16442-29F00
SEAT, OIL CHECK VALVE
$30.66¢15 330
1
#20
16321-29F00
GEAR, OIL PUMP IDLE (NT:20)
$29.08¢14 542
1
#21
16322-29F00
SHAFT, OIL PUMP IDLE GEAR
$24.67¢12 334
1
#22
08331-3112A
CIRCLIP
$2.12¢1 058
1
