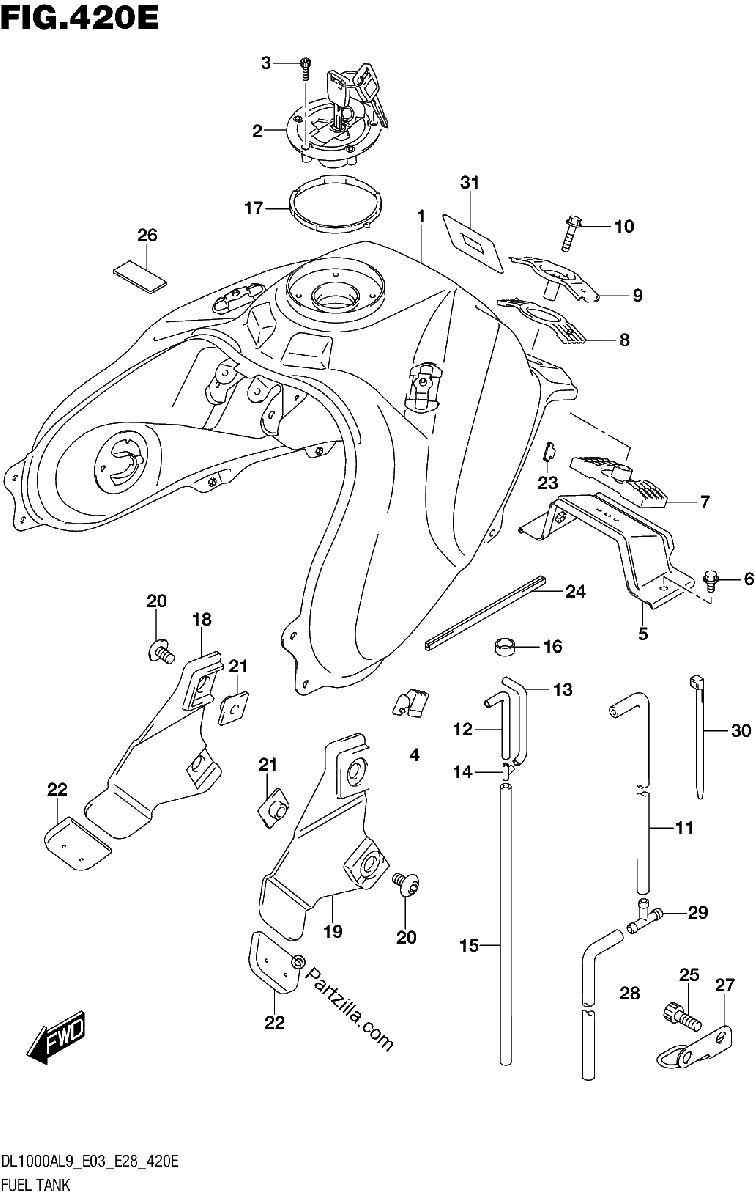

420E FUEL TANK DL1000AL9 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#2
CAP SET, FUEL TANK
$268.35¢134 176
#3
BOLT
$4.51¢2 254
#4
CUSHION, SIDE
No Disponible
#5
BRACKET, REAR LOWER
No Disponible
#6
BOLT
$2.77¢1 386
#7
CUSHION, LOWER
$22.65¢11 327
#8
CUSHION, UPPER
$20.84¢10 419
#9
BRACKET, UPPER
No Disponible
#10
BOLT
$3.36¢1 679
#1-1
TANK, FUEL (BLACK)
$1475.43¢737 714
#11
HOSE,FUEL TANK DRAIN NO.1
$18.57¢9 286
#1-2
TANK, FUEL (WHITE)
$1480.14¢740 071
#12
HOSE, FUEL TANK BRTHR NO.1
$11.15¢5 577
#1-3
TANK, FUEL (RED)
$1475.43¢737 714
#13
HOSE,FUEL TANK BRTHR NO.3
$17.04¢8 522
#14
3 WAY
$3.81¢1 903
#15
HOSE, FUEL TANK BRTHR NO.2
$9.80¢4 899
#16
HOSE (13.5X16.5X10)
No Disponible
#17
MOLDING, FUEL TANK COVER
No Disponible
#18
BRACKET, FUEL TANK COVER
$14.40¢7 199
#19
BRACKET, FUEL TANK COVER
$14.40¢7 199
#20
SCREW (6X10)
$4.21¢2 105
#21
NUT(M6)
$14.63¢7 314
#22
CUSHION, FUEL TANK COVER BRKT
$5.98¢2 990
#23
CUSHION, FUEL TANK COVER
$6.54¢3 272
#24
MOLDING, FUEL TANK
$15.89¢7 946
#25
BOLT
No Disponible
#26
CUSHION, FUEL TANK
$6.87¢3 433
#27
GUIDE, DRAIN HOSE
$12.65¢6 325
#28
HOSE,FUEL TANK DRAIN NO.2
$20.21¢10 103
#29
3 WAY
$5.84¢2 921
#30
CLAMP (L:145)
$3.36¢1 679
#31
CUSHION
No Disponible
