206A TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

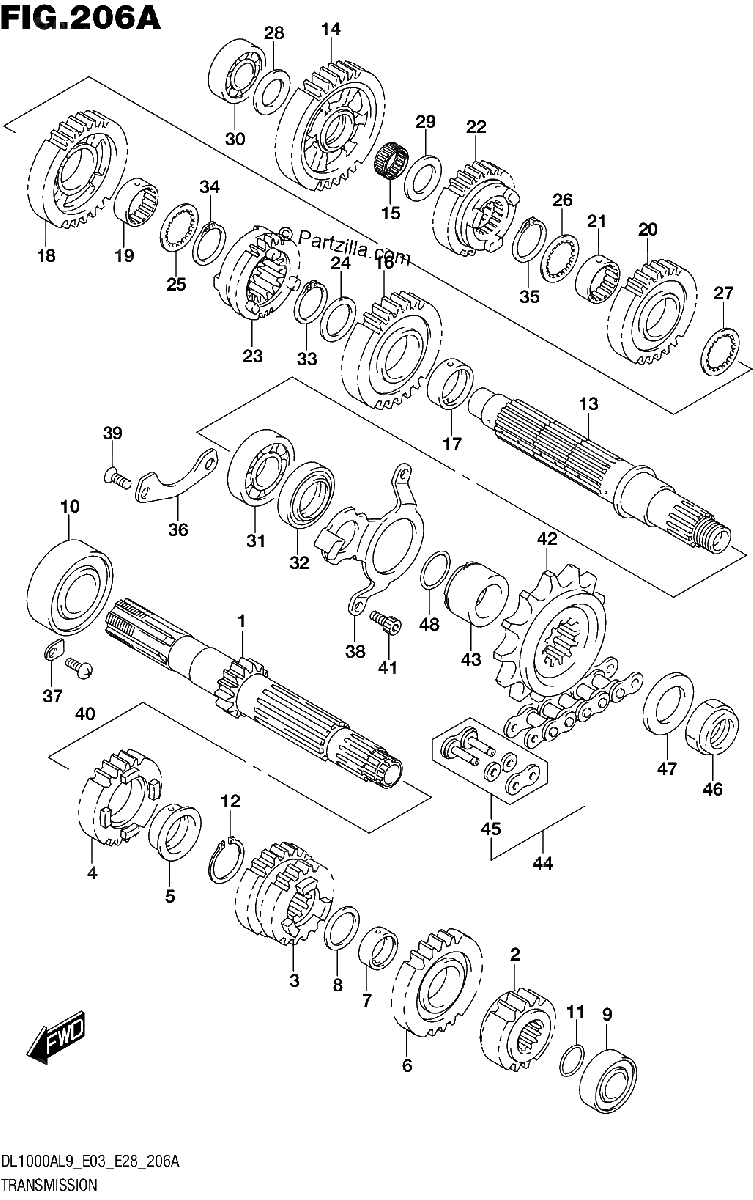

Diagrama de 206A TRANSMISSION

Repuestos

#1
24120-06G00
SHAFT, COUNTER (NT:12)
No Disponible
1
#2
24221-02F01
GEAR, 2ND DRIVE (NT:15)
No Disponible
1
#3
24231-02F30
GEAR, 3RD & 4TH DRIVE (NT:18/22)
$201.29¢100 644
1
#4
24251-02F11
GEAR, 5TH DRIVE (NT:23)
$221.91¢110 956
1
#5
24252-02F10
BUSH, 5TH DRIVE GEAR
$52.59¢26 294
1
#6
24261-02F20
GEAR, 6TH DRIVE (NT:24)
No Disponible
1
#7
24262-02F00
BUSH, 6TH DRIVE GEAR
No Disponible
1
#8
09181-22167
SHIM (22X30X1)
$3.65¢1 825
1
#9
09262-20139
BEARING (20X47X14) | LH
$59.02¢29 513
1
#10
09262-25073
BEARING (25X62X17) | RH
$30.46¢15 231
1
#11
09280-17004
O RING (D:1.9,ID:16.6)
$4.81¢2 406
1
#12
09380-27001
CIRCLIP
$3.13¢1 563
1
#13
24130-02F20
SHAFT, DRIVE
$373.90¢186 950
1
#14
24311-06G00
GEAR, 1ST DRIVEN (NT:36)
No Disponible
1
#15
09263-22068
BEARING (22X26X11)
$8.19¢4 094
1
#16
24321-02F11
GEAR, 2ND DRIVEN (NT:29)
No Disponible
1
#17
24322-02F01
BUSH, 2ND DRIVEN
$29.04¢14 519
1
#18
24331-02F20
GEAR, 3RD DRIVEN (NT:27)
No Disponible
1
#19
24332-17E20
BUSH, 4TH DRIVEN GEAR
$52.69¢26 344
1
#20
24341-02F20
GEAR, 4TH DRIVEN (NT:27)
$167.13¢83 563
1
#21
24332-17E20
BUSH, 4TH DRIVEN GEAR
$52.69¢26 344
1
#22
24351-02F20
GEAR, 5TH DRIVEN (NT:25)
$166.77¢83 387
1
#23
24361-02F30
GEAR, 6TH DRIVEN (NT:24)
No Disponible
1
#24
09160-27008
WASHER (27X36X1)
$4.84¢2 419
1
#25
24333-02F00
WASHER, 3RD 4TH DRIVEN GEAR
$6.13¢3 063
1
#26
24333-02F00
WASHER, 3RD 4TH DRIVEN GEAR
$6.13¢3 063
1
#27
24333-02F10
WASHER, 3RD 4TH DRIVEN GEAR
$9.47¢4 738
1
#28
09181-20251
SHIM (20X34X1)
$3.61¢1 806
1
#29
09181-22223
SHIM (22X34X1)
$3.71¢1 856
1
#30
09262-20082
BEARING (20X52X15) | RH
$40.21¢20 106
1
#31
09262-28053
BEARING (28X68X18) | LH
$128.90¢64 450
1
#32
09283-38028
OIL SEAL (38X52X8) | LH
$30.72¢15 362
1
#33
09380-27001
CIRCLIP
$3.13¢1 563
1
#34
09380-27001
CIRCLIP
$3.13¢1 563
1
#35
09380-27001
CIRCLIP
$3.13¢1 563
1
#36
24741-06G00
RETAINER, DRIVE SHAFT
$10.88¢5 438
1
#37
24741-21A00
RETAINER, BEARING
$3.65¢1 825
1
#38
24751-06G00
RETAINER, DRIVE SHAFT
$15.08¢7 538
1
#39
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#40
02112-0612A
SCREW
$1.86¢931
1
#41
07130-0612A
BOLT
$3.25¢1 625
1
#42
27510-20A41
SPROCKET, ENGINE (NT:17)
$105.56¢52 781
1
#43
27531-31J00
SPACER, SPROCKET
$49.47¢24 737
1
#44
27600-06G40-120
CHAIN ASSY (RK525SMOZ8) | L:120-116
$216.35¢108 175
1
#45
27620-06G40
JOINT SET, CHAIN
$28.50¢14 250
1
#46
09159-20004
NUT
$18.43¢9 213
1
#47
09160-25009
WASHER (25X41X3)
$6.30¢3 150
1
#48
09280-24010
O RING (D:2.4,ID:23.7)
$6.64¢3 319
1
