AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

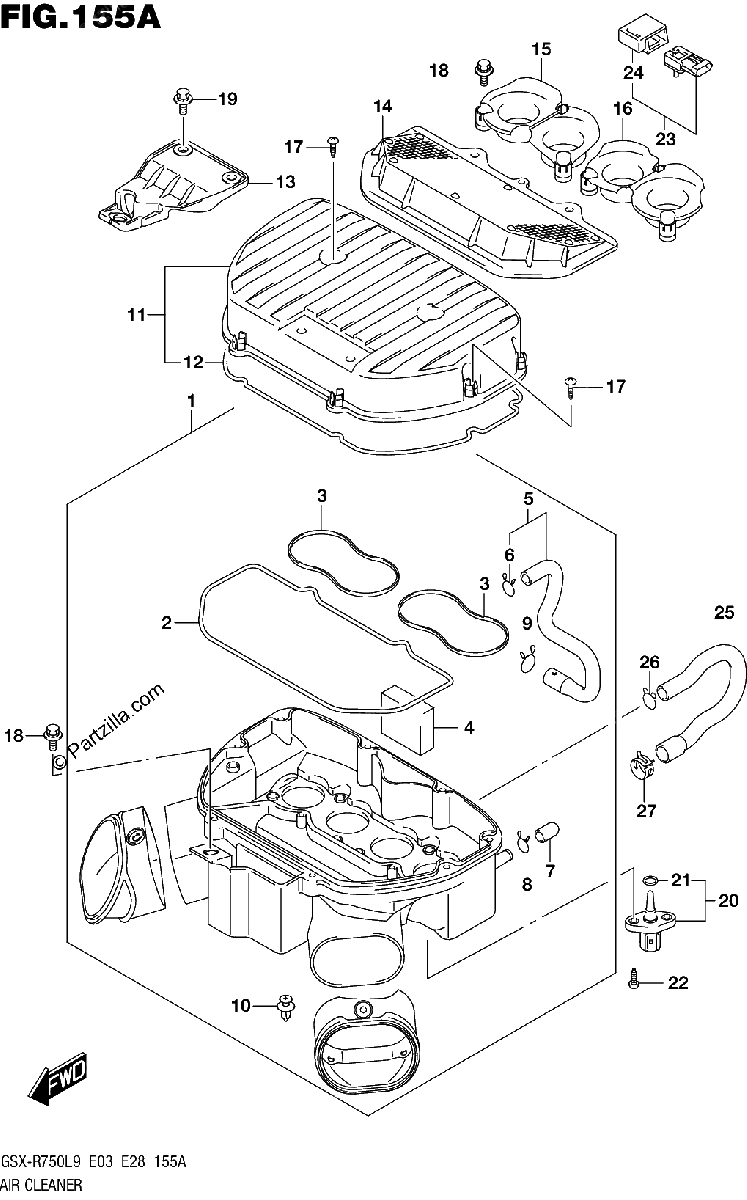

Diagrama de AIR CLEANER

Repuestos

#1
13720-14J00
CLEANER ASSY, AIR
$272.75¢136 373
1
#2
13756-14J00
.GASKET, CASE
$7.51¢3 755
1
#3
13757-14J00
.GASKET, CASE
$7.21¢3 605
1
#4
13788-14J00
.FILTER BREATHER
$6.60¢3 301
1
#5
13850-14J00
.TUBE, BREATHER
$35.05¢17 526
1
#6
09401-15101
.CLIP
$2.74¢1 368
1
#7
13878-10G00
.PLUG
$7.20¢3 599
1
#8
09401-14301
.CLIP
$2.52¢1 259
1
#9
09401-17201
CLIP
$3.79¢1 897
1
#10
09409-07305-5PK
.CLIP (BLACK)
$2.67¢1 334
1
#11
13740-14J00
CAP, AIR CLEANER
$93.06¢46 529
1
#12
13746-14J00
.GASKET, CAP
$16.01¢8 004
1
#13
13760-14J00
HOLDER, AIR CLEANER
$23.37¢11 684
1
#14
13780-14J00
FILTER ASSY
$45.56¢22 781
1
#15
13881-15J00
FUNNEL, OUTLET RH
$53.11¢26 553
1
#16
13882-15J00
FUNNEL, OUTLET LH
$53.11¢26 553
1
#17
03541-0520A
SCREW
$2.17¢1 087
1
#18
13831-47H00
BOLT, AIR CLEANER CASE
$9.27¢4 635
1
#19
09111-06089
BOLT (6X16)
$3.13¢1 564
1
#20
13650-14G10
SENSOR, AIR TEMPERATURE
$57.12¢28 560
1
#21
13655-14G10
.O RING
$12.30¢6 152
1
#22
03511-0516A
SCREW
$2.25¢1 127
1
#23
15630-29G10
SENSOR, PRESSURE
$336.49¢168 245
1
#24
15625-29G00
.COVER
$15.39¢7 694
1
#25
13697-14J00
HOSE, ISC VALVE
$25.50¢12 748
1
#26
09401-15101
.CLIP
$2.74¢1 368
1
#27
09401-17401
CLIP
$3.74¢1 869
1
