WIRING HARNESS GSX R750L9 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

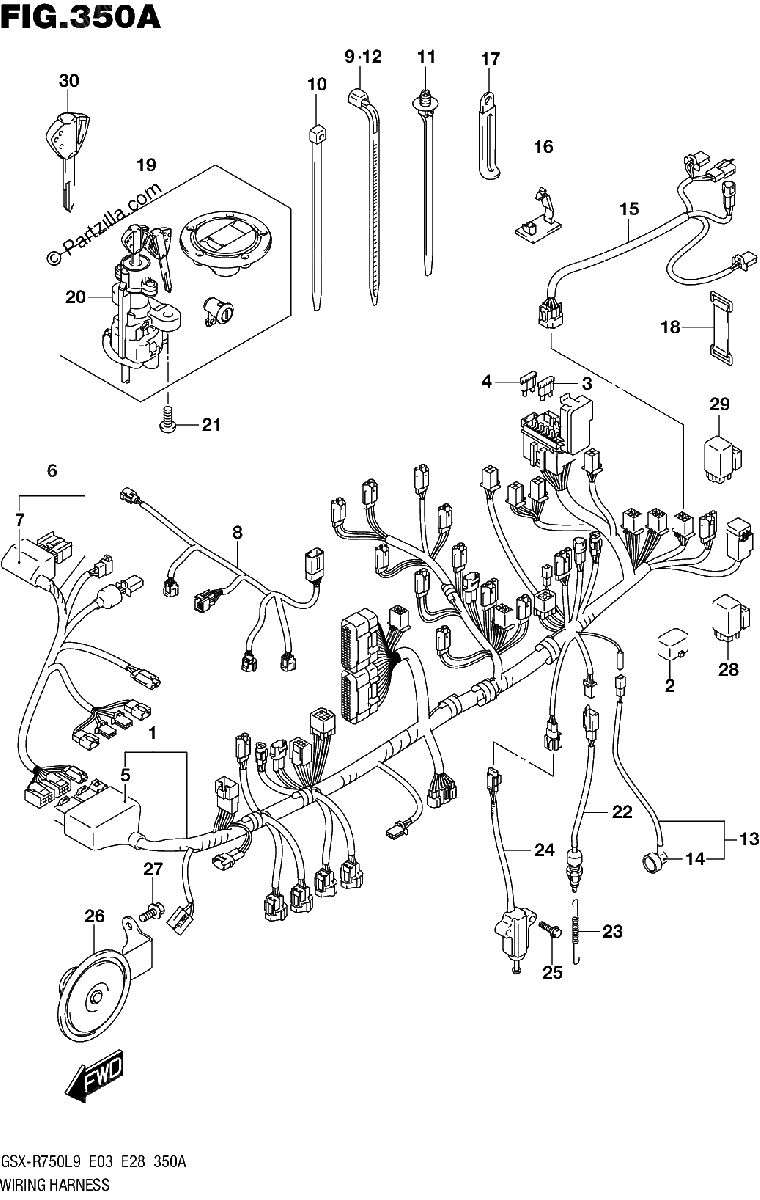

Diagrama de WIRING HARNESS GSX R750L9 E03

Repuestos

#1
36610-14JC0
HARNESS, WIRING NO.1
$1429.40¢714 700
1
#2
36654-06J00
CAP, TS
$18.69¢9 344
1
#3
09481-10501
.FUSE (10A)
$2.70¢1 350
1
#4
09481-15501
.FUSE (15A)
$2.70¢1 350
1
#5
36618-18G00
.COVER, CONNECTOR
No Disponible
1
#6
36620-14J10
HARNESS, WIRING NO.2
$266.57¢133 288
1
#7
36618-47H00
.CAP
$30.02¢15 013
1
#8
36630-14J10
HARNESS, WIRING NO.3
$280.23¢140 113
1
#9
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#10
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#11
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#12
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#13
36851-14J01
WIRE, OIL PRESSURE LEAD
$18.29¢9 144
1
#14
36618-31J00
.CAP, OIL PRESSURE SWITCH
No Disponible
1
#15
36859-14J00
WIRE, REAR COMBINATION LEAD
$74.23¢37 113
1
#16
09403-04310
CLAMP
$7.03¢3 513
1
#17
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#18
09462-00033
BAND
$3.81¢1 906
1
#19
37101-40821
LOCK SET
$347.11¢173 556
1
#20
37100-41G11
.LOCK ASSY, STEERING
$271.93¢135 963
1
#21
09139-08016
BOLT (8X20)
$3.96¢1 981
1
#22
37740-14J00
SWITCH ASSY, STOP LAMP
$36.41¢18 206
1
#23
09443-06087
SPRING
$5.38¢2 688
1
#24
37840-18J00
SWITCH ASSY, SIDE STAND
$77.38¢38 688
1
#25
01550-0620A
BOLT
$2.56¢1 281
1
#26
38500-14J00
HORN ASSY
$118.41¢59 206
1
#27
01550-0616B
BOLT
$3.19¢1 594
1
#28
38740-24X50
RELAY ASSY, FAN MOTOR
$53.90¢26 950
1
#29
38740-24X50
RELAY ASSY, FAN MOTOR
$53.90¢26 950
1
#30
37146-41G00
KEY, BLANK | OPT
$51.33¢25 663
1
