REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

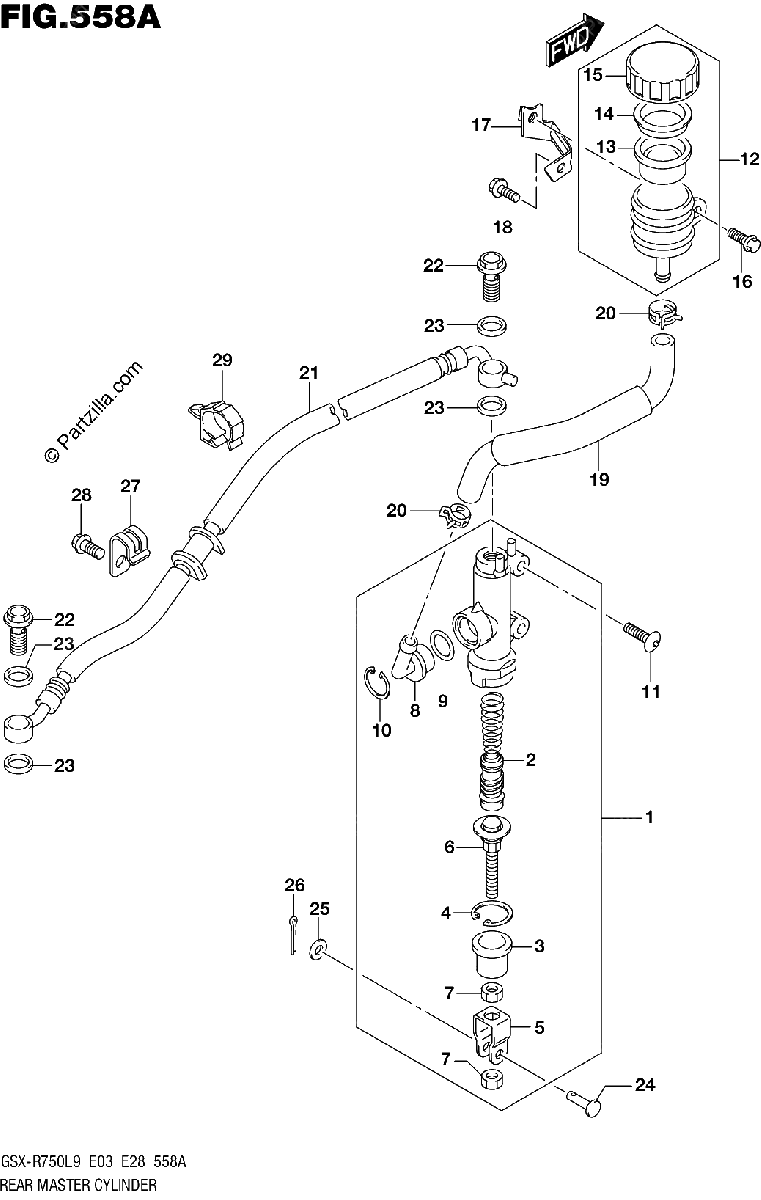

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-47H30
CYLINDER ASSY, REAR MASTER
$297.56¢148 781
1
#2
69600-34810
.PISTON/CAP SET
$76.28¢38 138
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69665-47H00
.CIRCLIP
$6.78¢3 388
1
#5
69692-47H00
.YOKE
$18.84¢9 419
1
#6
69670-40A00
ROD, PUSH
$34.59¢17 294
1
#7
69693-47H00
.NUT
$3.35¢1 675
1
#8
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#9
69686-34200
.O RING
$3.65¢1 825
1
#10
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#11
09139-06125
SCREW (6X20)
$3.65¢1 825
1
#12
69740-47H00
TANK ASSY, REAR RESERVOIR
$108.04¢54 019
1
#13
69667-00B20
.DIAPHRAGM
$24.90¢12 450
1
#14
69668-00B20
.PLATE
$10.35¢5 175
1
#15
69669-47H00
.CAP
$11.60¢5 800
1
#16
01547-0616A
BOLT
$2.63¢1 313
1
#17
69750-14J00
BRACKET, RR RESERVOIR TANK
$15.90¢7 950
1
#18
01547-0612A
BOLT
$2.63¢1 313
1
#19
69730-14J00
HOSE, RESERVOIR TANK
$40.79¢20 394
1
#20
09401-12404
CLIP
$3.09¢1 544
1
#21
69480-14J00
HOSE, REAR BRAKE
$120.25¢60 125
1
#22
09360-10062
UNION
$7.57¢3 787
1
#23
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#24
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#25
08322-0106A
WASHER
$2.39¢1 194
1
#26
04111-2015A
COTTER PIN
$1.59¢794
1
#27
69268-21H00
CLAMP, RR BRAKE HOSE
$10.44¢5 219
1
#28
01547-0612A
BOLT
$2.63¢1 313
1
#29
09403-17306
CLAMP
$3.44¢1 719
1
