350B WIRING HARNESS GSX R750L9 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

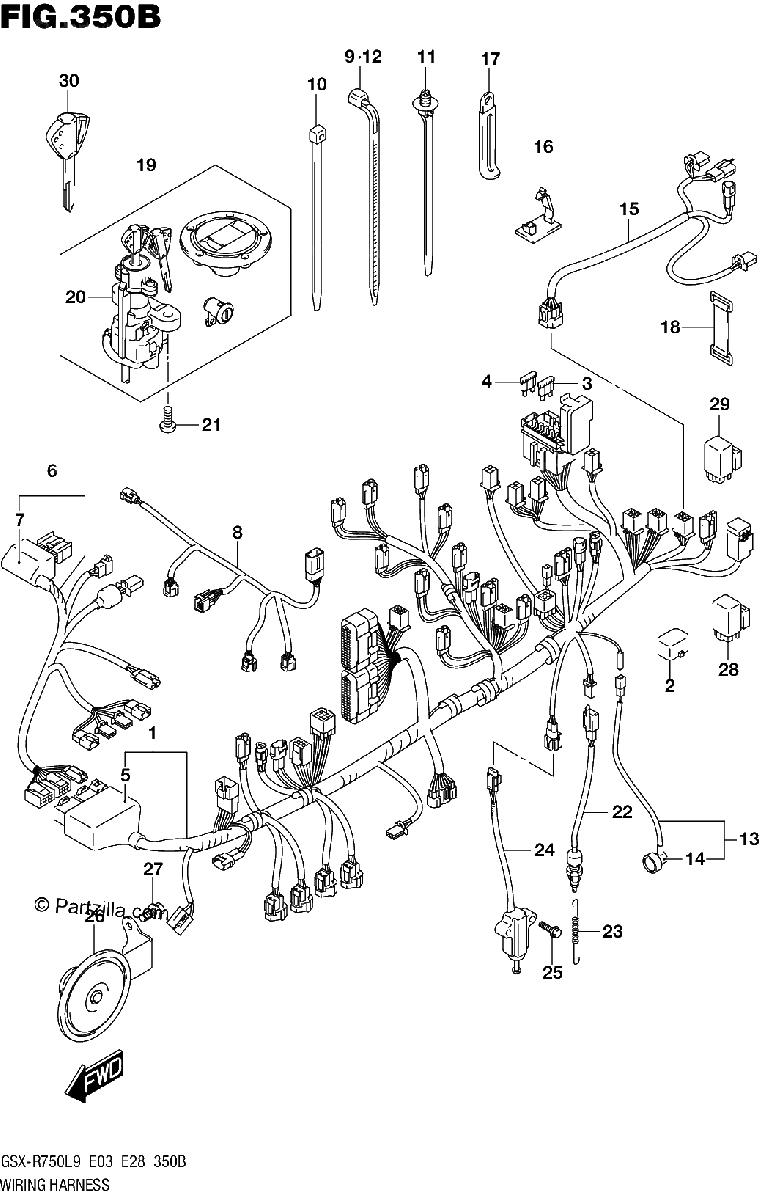

Diagrama de 350B WIRING HARNESS GSX R750L9 E28

Repuestos

#1
36610-14JC0
HARNESS, WIRING NO.1
$1315.05¢657 524
1
#2
36654-06J00
CAP, TS
$17.19¢8 596
1
#3
09481-10501
.FUSE (10A)
$2.48¢1 242
1
#4
09481-15501
.FUSE (15A)
$2.48¢1 242
1
#5
36618-18G00
.COVER, CONNECTOR
No Disponible
1
#6
36620-14J10
HARNESS, WIRING NO.2
$245.25¢122 624
1
#7
36618-47H00
.CAP
$27.62¢13 811
1
#8
36630-14J10
HARNESS, WIRING NO.3
$257.81¢128 903
1
#9
09407-11401
CLAMP (L:95)
$3.19¢1 593
1
#10
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#11
09407-17403
CLAMP (L:154)
$5.54¢2 772
1
#12
09407-14403
CLAMP (L:125)
$2.69¢1 346
1
#13
36851-14J01
WIRE, OIL PRESSURE LEAD
$16.82¢8 412
1
#14
36618-31J00
.CAP, OIL PRESSURE SWITCH
No Disponible
1
#15
36859-14J00
WIRE, REAR COMBINATION LEAD
$68.29¢34 143
1
#16
09403-04310
CLAMP
$6.46¢3 231
1
#17
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#18
09462-00033
BAND
$3.51¢1 754
1
#19
37101-40821
LOCK SET
$319.34¢159 672
1
#20
37100-41G11
.LOCK ASSY, STEERING
$250.17¢125 085
1
#21
09139-08016
BOLT (8X20)
$3.65¢1 823
1
#22
37740-14J00
SWITCH ASSY, STOP LAMP
$33.50¢16 750
1
#23
09443-06087
SPRING
$4.94¢2 472
1
#24
37840-18J00
SWITCH ASSY, SIDE STAND
$71.18¢35 592
1
#25
01550-0620A
BOLT
$2.36¢1 179
1
#26
38500-14J00
HORN ASSY
$108.94¢54 470
1
#27
01550-0616B
BOLT
$2.93¢1 466
1
#28
38740-24X50
RELAY ASSY, FAN MOTOR
$49.59¢24 794
1
#29
38740-24X50
RELAY ASSY, FAN MOTOR
$49.59¢24 794
1
#30
37146-41G00
KEY, BLANK | OPT
$47.22¢23 610
1
